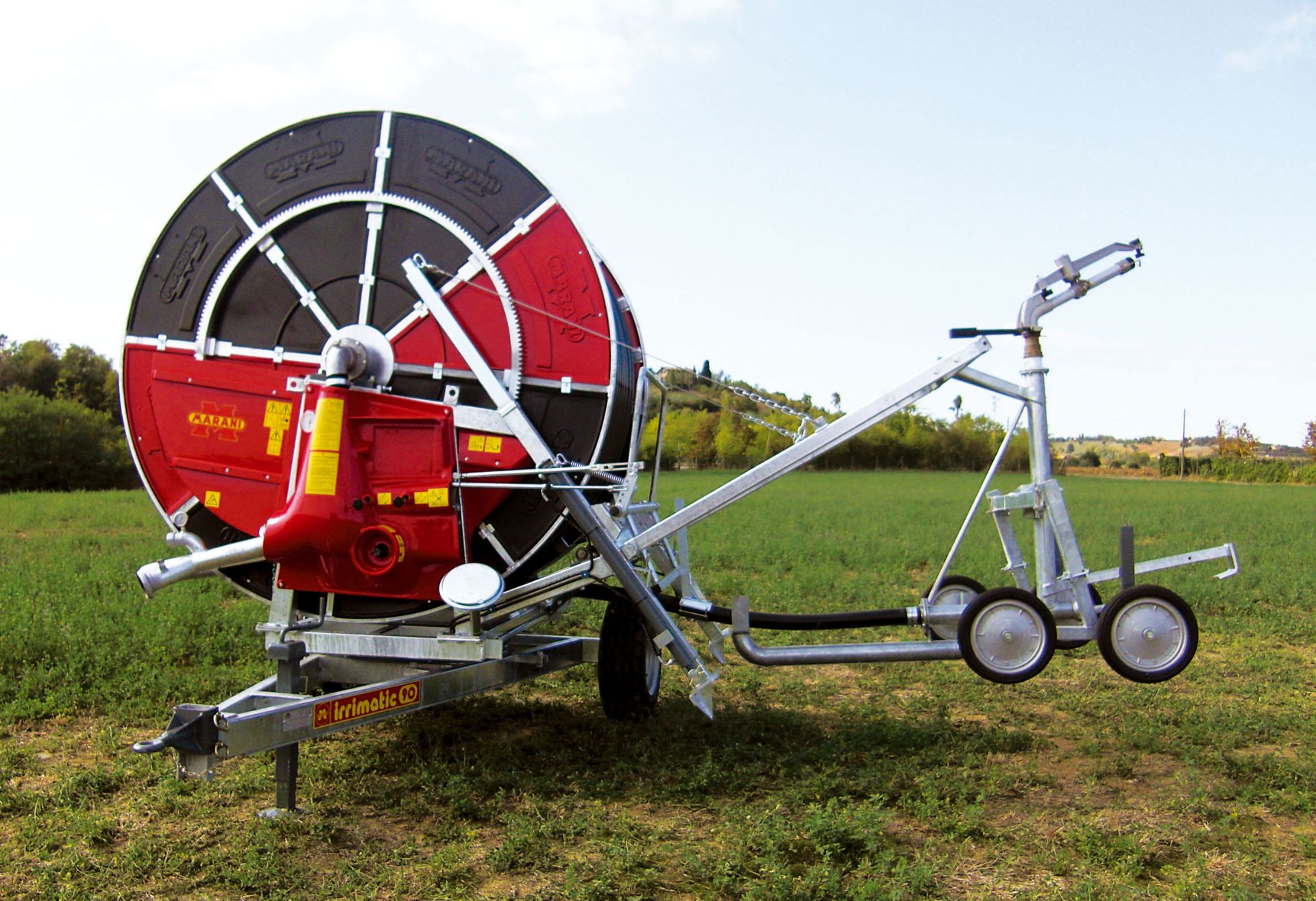

Marani GT030C Turbine Drive Hard Hose Irrigator

Overview

The Marani GT030C is a turbine drive hard hose irrigator engineered and manufactured in Italy by Marani Irrigazione, a brand long recognised for building robust, field-proven irrigation reels for demanding agricultural environments. Designed to deliver consistent, large-area coverage across a wide range of crops and field conditions, the GT030C accepts polyethylene hose in diameters of 100 mm (3.94 in) and 110 mm (4.33 in) with lengths reaching up to 300 m (984 ft), making it a capable solution for medium-to-large scale irrigation tasks. The machine is powered by a water turbine flanged directly to a six-speed gearbox, allowing precise control over reel winding speed and, consequently, application rate across the full hose travel.

What sets the GT030C apart within the Marani range is its combination of heavy-duty galvanised construction, a turbine-and-gearbox integration that includes a built-in by-pass, and a fully galvanised reel and chassis — all standard, not optional extras. The machine comes equipped with the REFLEX raingun mounted on a galvanised trolley with variable track wheels, and includes a complete set of interchangeable nozzles ranging from Ø 24 to Ø 32, providing flexibility to match precipitation rate to field and crop requirements. The GT030C is the kind of irrigation reel that balances initial investment against long-term operating and maintenance costs — precisely the philosophy Marani Irrigazione has built its reputation on.

Key Features & Benefits

• Hot Galvanised Chassis, Turret, and Reel: Full hot-dip galvanisation on all primary structural components provides long-term corrosion resistance, reducing maintenance intervals and extending the operational lifespan of the machine in wet and chemically challenging field conditions.
• Six-Speed Gearbox with Turbine Integration: A dedicated six-speed gearbox paired with a flanged turbine and built-in by-pass gives operators precise control over winding speed, enabling accurate management of water application depth across varying field lengths and crop types.
• Turbine Built-In By-Pass: The integrated by-pass on the turbine allows flow to be regulated without shutting down the entire system, supporting smoother operation and helping to protect the drive mechanism from pressure surges.
• REFLEX Raingun with Full Nozzle Set (Ø 24–Ø 32): The included REFLEX raingun and interchangeable nozzle set allow the operator to tailor throw radius and flow rate to match specific agronomic requirements, without needing to source additional components separately.
• Galvanised Raingun Trolley on Variable Track Wheels: The raingun trolley is mounted on adjustable variable track wheels, allowing it to adapt to different row spacings and field conditions while maintaining stable positioning during operation.
• Telescopic Mechanical Feet and Mechanical Lifting Device: The telescopic feet provide stable levelling on uneven ground, while the onboard mechanical lifting device simplifies hitching and positioning without requiring additional equipment, saving time during field moves.
• Galvanised Double Water Inlet (Bauer Connections): Standard fitment of a galvanised double water inlet with Bauer couplings (Ø 89 for 100 mm hose, Ø 108 for 110 mm hose) ensures compatibility with common farm water supply infrastructure and simplifies connection in the field.
• Polyethylene Hose from Unadulterated Raw Material: The PE hose supplied with the GT030C is manufactured from uncontaminated polyethylene, ensuring consistent flexibility, pressure resistance, and longevity over the hose's service life.
• Pressure Gauge and Tachometer as Standard: A glycerine-bath pressure gauge and a tachometer are included as standard equipment, giving the operator real-time monitoring of operating pressure and reel speed without the need for aftermarket instrumentation.
• Steel Swaged Galvanised and Painted Safety Guards: Safety guards are constructed from swaged, galvanised, and painted steel — providing both operator protection and durability against the physical wear typical of repeated field deployment.

Technical Specifications

Available Hose Configurations

Machine Dimensions

Diagram shows dimension reference points (A, B, C, etc.) on the machine.

Ideal Applications

• Arable and Row Crop Irrigation: The GT030C's variable nozzle range and multiple hose length configurations make it well suited to irrigating large arable fields and row crops such as maize, sugar beet, and potatoes where consistent water distribution over long travel distances is essential.
• Pasture and Forage Crop Watering: With hose lengths up to 300 m (984 ft) and a wide-throw REFLEX raingun, the machine can efficiently cover extensive pasture areas or forage crops in a single setup, reducing the frequency of repositioning.
• Vegetable Production: The ability to select from multiple nozzle sizes allows operators to moderate application intensity for sensitive vegetable crops, reducing the risk of soil compaction or crop damage during irrigation.
• Orchards and Tree Crops: The galvanised raingun trolley with variable track wheels enables the machine to navigate between tree rows, while adjustable winding speed supports precise application rates suited to orchard irrigation regimes.
• Large-Scale Farm Irrigation Programmes: Designed for farms where cost-per-hectare and machine uptime are primary operational considerations, the GT030C's durable galvanised construction and straightforward mechanical drive system support reliable, season-long use with manageable maintenance requirements.
• Fields with Variable Terrain: The telescopic mechanical feet and mechanical lifting device allow the GT030C to be levelled and positioned efficiently on undulating or uneven ground, maintaining stable operation across diverse field topographies.
