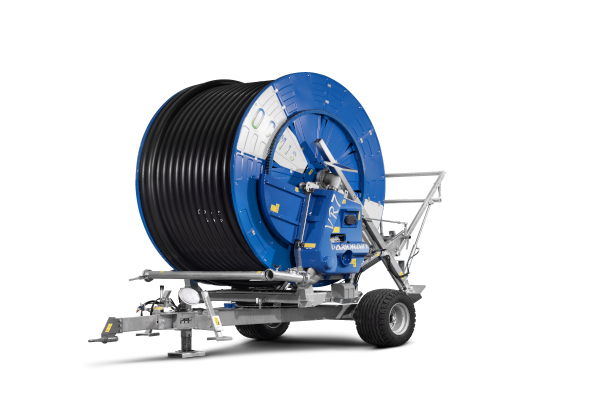

Ocmis VR7/1 Turbine Drive Hard Hose Irrigator

Overview

The Ocmis VR7/1 is a professional hard hose reel travelling irrigator manufactured by Ocmis Irrigazione, one of Italy's leading irrigation equipment specialists. This advanced irrigation machine features the innovative Vario Rain system with a sophisticated 4-speed gearbox offering synchronized speeds, enabling precise control over irrigation application rates across diverse field conditions. Available in multiple hose configurations ranging from 110 mm to 140 mm (4.33 to 5.51 inches) diameter and lengths from 450 m to 750 m (1,476 to 2,461 feet), the VR7/1 delivers exceptional versatility for medium to large-scale agricultural operations.

What distinguishes the VR7/1 as a best-seller in the Ocmis range is its combination of water-saving technology, operational simplicity, and minimal pressure loss throughout the irrigation cycle. The machine's gearbox serves as the nerve centre, synchronizing turbine speed with reel rotation to maintain consistent travel speed regardless of hose diameter or field conditions. With hydraulic lifting devices, telescopic feet for stability on uneven terrain, and a choice of REFLEX or EXPLORER rainguns with comprehensive nozzle sets, the VR7/1 has earned global recognition among progressive farmers seeking reliable, user-friendly irrigation solutions that optimize water resources while minimizing labour requirements.

Key Features & Benefits

• 4-Speed VR Gearbox with Synchronized Speeds: The intelligent gearbox automatically adjusts irrigation speed based on operating conditions, ensuring uniform water distribution and preventing over or under-watering across the entire field length.
• Vario Rain System Technology: This patented system coordinates turbine rotation with reel speed, delivering consistent travel velocity and precise application rates while significantly reducing water consumption compared to conventional systems.
• Hydraulic Lifting and Positioning Systems: The integrated hydraulic trolley lift, telescopic hydraulic feet, and hydraulic drawbar rotation provide effortless setup and adjustment, reducing operator effort and enabling single-person operation even on challenging terrain.
• Dual Raingun Options with Comprehensive Nozzle Sets: Choose between REFLEX rainguns (Ø 24-32 mm nozzles) for medium-range applications or EXPLORER rainguns (Ø 28-40 mm nozzles) for extended reach, with complete nozzle sets included to match diverse crops and field conditions.
• Hot Galvanized Chassis with Premium Protective Coatings: The chassis and turret feature hot-dip galvanization while the reel receives epoxy resin coating and polyurethane paint, ensuring exceptional corrosion resistance and extended service life in harsh agricultural environments.
• Minimal Pressure Loss Design: Engineered water pathways, turbine-mounted bypass, and optimized flexible connections maintain system pressure throughout operation, maximizing irrigation efficiency and reducing pumping energy costs.
• Variable Track Galvanized Trolley: The adjustable-width trolley mounted on the raingun carriage accommodates different row spacings and field configurations while the galvanized construction resists corrosion from constant water exposure.
• Professional Monitoring Instruments: Glycerine-bath pressure gauge, tachometer, and speed equalizer provide real-time operational feedback, enabling operators to fine-tune performance and verify optimal irrigation parameters.
• Heavy-Duty 400/60-15.5 16PR Wheels: Six-ply rated agricultural wheels with aggressive tread patterns deliver reliable traction and flotation across wet fields, minimizing soil compaction while ensuring stable transport between irrigation sites.
• Unadulterated Polyethylene Hose: High-quality hose manufactured from virgin polyethylene material provides superior flexibility, UV resistance, and longevity without performance degradation from recycled content additives.

Technical Specifications

Available Hose Configurations

Machine Dimensions

Diagram shows dimension reference points (A, B, C, etc.) on the machine.

Ideal Applications

• Large-Scale Field Crops: Ideal for irrigating cereals, maize, soybeans, cotton, and other row crops across expansive acreage where consistent water distribution and labor efficiency are critical to profitability.
• Forage and Pasture Production: Well-suited for maintaining productive grasslands, alfalfa fields, and livestock pastures where the variable speed control prevents surface runoff and optimizes moisture penetration on varied terrain.
• Vegetable Production: Excellent for commercial vegetable operations requiring flexible irrigation scheduling, with adjustable nozzles and speeds accommodating different growth stages from seedling establishment through harvest.
• Orchards and Permanent Crops: The variable track trolley and multiple hose configurations enable effective under-canopy or over-tree irrigation in vineyards, fruit orchards, and nut groves with diverse row spacing requirements.
• Contract Irrigation Services: The robust construction, comprehensive nozzle sets, and multiple configuration options make the VR7/1 ideal for irrigation contractors servicing diverse clients with varying field sizes and crop types.
• Water-Sensitive Regions: Particularly valuable in areas with limited water resources or high pumping costs where the Vario Rain system's water-saving capabilities and minimal pressure loss deliver measurable operational cost reductions.
