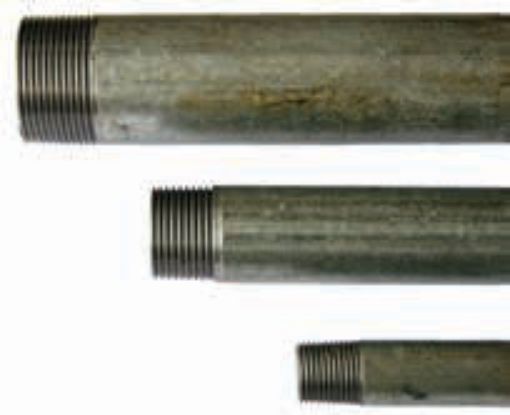

AAP Galvanised Medium Pipe Pieces PE (BS 1387-85) Both Ends BSP Taper

Specifications
General Information

Galvanised Medium Pipe Pieces PE (BS 1387-85) Both Ends BSP Taper
AAP CODE	IMPERIAL SIZE	A	APPROX KG/PC
SPN0640G	1/8	40	0.05
SPN0660G	1/8	60	0.05
SPN0680G	1/8	80	0.07
SPN0694G	1/8	100	0.08
SPN0840G	1/4	40	0.03
SPN0850G	1/4	50	0.04
SPN0860G	1/4	60	0.05
SPN0875G	1/4	75	0.06
SPN0880G	1/4	80	0.06
SPN0894G	1/4	100	0.08
SPN08140G	1/4	140	0.11
SPN0896G	1/4	150	0.12
SPN1040G	3/8	40	0.04
SPN1050G	3/8	50	0.05
SPN1060G	3/8	60	0.06
SPN1075G	3/8	75	0.08
SPN1094G	3/8	100	0.10
SPN10140G	3/8	140	0.14
SPN1096G	3/8	150	0.15
SPN1540G	1/2	40	0.04
SPN1560G	1/2	60	0.06
SPN1580G	1/2	80	0.08
SPN1594G	1/2	100	0.10
SPN15120G	1/2	120	0.12
SPN15140G	1/2	140	0.14
SPN1596G	1/2	150	0.15
SPN1598G	1/2	200	0.20
SPN15X25G	1/2	250	0.25
SPN15X30G	1/2	300	0.30
SPN15X35G	1/2	350	0.35
SPN15X40G	1/2	400	0.40
SPN15X45G	1/2	450	0.45
SPN15X50G	1/2	500	0.50
SPN15X60G	1/2	600	0.60
SPN15X75G	1/2	750	0.75
SPN15X90G	1/2	900	0.90
SPN15X100G	1/2	1000	1.00
SPN15X122G	1/2	1220	1.22
SPN15X152G	1/2	1524	1.52
SPN15X183G	1/2	1829	1.83
SPN2060G	3/4	60	0.08
SPN2080G	3/4	80	0.10
SPN2094G	3/4	100	0.13
SPN20120G	3/4	120	0.16
SPN20140G	3/4	140	0.18
SPN2096G	3/4	150	0.20
SPN2098G	3/4	200	0.26
SPN20X25G	3/4	250	0.33
SPN20X30G	3/4	300	0.39
SPN20X35G	3/4	350	0.46
SPN20X40G	3/4	400	0.52
SPN20X45G	3/4	450	0.59
SPN20X50G	3/4	500	0.65
SPN20X55G	3/4	550	0.72
SPN20X60G	3/4	600	0.78
SPN20X75G	3/4	750	0.98
SPN20X90G	3/4	900	1.17
SPN20X100G	3/4	1000	1.30
SPN20X122G	3/4	1220	1.59
SPN20X152G	3/4	1524	1.98
SPN20X183G	3/4	1829	2.38
SPN2580G	1	80	0.17
SPN2594G	1	100	0.21
SPN25120G	1	120	0.25
SPN25140G	1	140	0.29
SPN2596G	1	150	0.32
SPN2598G	1	200	0.42
SPN25X25G	1	250	0.53
SPN25X30G	1	300	0.63
SPN25X35G	1	350	0.74
SPN25X40G	1	400	0.84
SPN25X45G	1	450	0.95
SPN25X50G	1	500	1.05
SPN25X55G	1	550	1.16
SPN25X60G	1	600	1.26
SPN25X75G	1	750	1.58
SPN25X90G	1	900	1.89
SPN25X100G	1	1000	2.10
SPN25X122G	1	1220	2.56
SPN25X152G	1	1524	3.20
SPN25X183G	1	1829	3.84
SPN3260G	1 1/4	60	0.14
SPN3280G	1 1/4	80	0.19
SPN3294G	1 1/4	100	0.24
SPN32140G	1 1/4	140	0.34
SPN3296G	1 1/4	150	0.36
SPN3298G	1 1/4	200	0.48
SPN32X25G	1 1/4	250	0.60
SPN32X30G	1 1/4	300	0.72
SPN32X35G	1 1/4	350	0.84
SPN32X40G	1 1/4	400	0.96
SPN32X45G	1 1/4	450	1.08
SPN32X50G	1 1/4	500	1.20
SPN32X55G	1 1/4	550	1.32
SPN32X60G	1 1/4	600	1.44
SPN32X75G	1 1/4	750	1.80
SPN32X90G	1 1/4	900	2.16
SPN32X122G	1 1/4	1220	2.93
SPN4060G	1 1/2	60	0.19
SPN4080G	1 1/2	80	0.25
SPN4094G	1 1/2	100	0.31
SPN40120G	1 1/2	120	0.37
SPN40140G	1 1/2	140	0.43
SPN4096G	1 1/2	150	0.47
SPN4098G	1 1/2	200	0.62
SPN40X25G	1 1/2	250	0.78
SPN40X30G	1 1/2	300	0.93
SPN40X35G	1 1/2	350	1.09
SPN40X40G	1 1/2	400	1.24
SPN40X45G	1 1/2	450	1.40
SPN40X50G	1 1/2	500	1.55
SPN40X60G	1 1/2	600	1.86
SPN40X75G	1 1/2	750	2.33
SPN40X90G	1 1/2	900	2.79
SPN40X100G	1 1/2	1000	3.10
SPN40X122G	1 1/2	1220	3.78
SPN5094G	2	100	0.41
SPN50120G	2	120	0.49
SPN50140G	2	140	0.57
SPN5096G	2	150	0.62
SPN5098G	2	200	0.82
SPN50X25G	2	250	1.03
SPN50X30G	2	300	1.23
SPN50X35G	2	350	1.44
SPN50X40G	2	400	1.64
SPN50X45G	2	450	1.85
SPN50X50G	2	500	2.05
SPN50X60G	2	600	2.46
SPN50X75G	2	750	3.08
SPN50X90G	2	900	3.69
SPN50X100G	2	1000	4.10
SPN50X122G	2	1220	5.00
SPN6580G	2 1/2	80	0.43
SPN6594G	2 1/2	100	0.54
SPN65140G	2 1/2	140	0.76
SPN6596G	2 1/2	150	0.81
SPN6598G	2 1/2	200	1.08
SPN65X25G	2 1/2	250	1.35
SPN65X30G	2 1/2	300	1.62
SPN65X45G	2 1/2	450	2.43
SPN65X60G	2 1/2	600	3.24
SPN8080G	3	80	0.39
SPN80120G	3	120	0.59
SPN80140G	3	140	0.69
SPN8096G	3	150	0.74
SPN8098G	3	200	0.98
SPN80X25G	3	250	1.23
SPN80X30G	3	300	1.47
SPN80X45G	3	450	2.21
SPN80X60G	3	600	2.94
SPN80X75G	3	750	3.68
SPN80X90G	3	900	4.41
SPN80X100G	3	1000	4.90
SPN9494G	4	100	1.03
SPN94120G	4	120	1.23
SPN94140G	4	140	1.44
SPN9496G	4	150	1.54
SPN9498G	4	200	2.05
SPN94X25G	4	250	2.57
SPN94X30G	4	300	3.08
SPN94X45G	4	450	4.62
SPN94X60G	4	600	6.16
SPN94X75G	4	750	7.70
SPN94X90G	4	900	9.24
SPN94X100G	4	1000	10.27
SPN95X30G	5	300	3.40
SPN95X60G	5	600	6.80

BRITISH STANDARD THREADS
All measurements in mm
NOMINAL BORE OF PIPE	APPROX. OUTSIDE DIAMETER	NUMBER OF THREADS PER INCH	PITCH	DEPTH OF THREADS	DIAMETER AT GAUGE PLANE	LENGTH OF USEFUL THREAD
IMPERIAL	METRIC	A		P	h	B	E
1/8	6	10.16	28	0.907	0.581	9.72	6.5
1/4	8	13.66	19	1.337	0.856	13.15	9.7
3/8	10	17.17	19	1.337	0.856	16.66	10.1
1/2	15	21.51	14	1.814	1.162	20.95	13.2
3/4	20	27.00	14	1.814	1.162	26.44	14.5
1	25	33.93	11	2.309	1.479	33.24	16.8
1 1/4	32	42.59	11	2.309	1.479	41.91	19.1
1 1/2	40	48.48	11	2.309	1.479	47.80	19.1
2	50	60.47	11	2.309	1.479	59.61	23.4
2 1/2	65	76.09	11	2.309	1.479	75.18	26.7
3	80	88.87	11	2.309	1.479	87.88	29.8
4	100	114.14	11	2.309	1.479	113.03	35.8
5	125	139.65	11	2.309	1.479	138.43	40.1
6	150	165.12	11	2.309	1.479	163.83	40.1
