Atom NGun 40

Manufacturer: DuCaR Sprinklers Australia

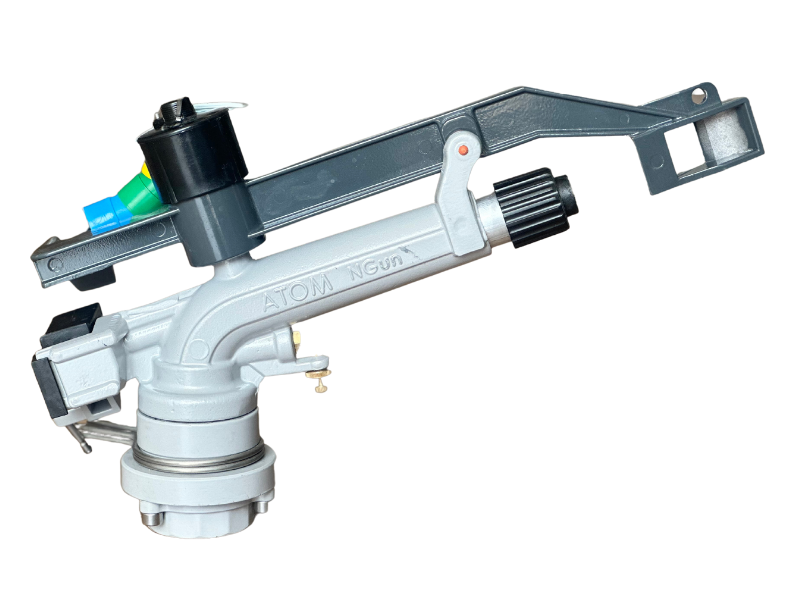

DuCaR Atom NGun Impact Sprinkler

Be the first to review this product

Water Input

:

2" Female BSP

Working Pressure

:

25 - 65 psi

Water Flow

:

183 - 532 l/min

Shooting Radius

:

19 - 33 m

Nozzles

:

14, 16, 18, 20 mm

Body Angle

:

18°

Weight

:

2.5 kg

Operation

:

Full & Part Circle

Material

:

Cast-Iron, Aluminium, Brass

Made in

:

Turkey

Manufacturer part number: Atom NGun

DuCar Atom NGun 40

It is designed to be used as END GUN on pivot systems. Highly durable, long range, low body angle impact sprinkler head.

Because of our special design and experiences against swing arm models, it’s a highly efficient end gun for pivot systems.

Thanks to its 18° body angle, it is fully compatible with portable or fixed systems in windy areas and where you need to irrigate at low altitudes.

Technical Specifications

mm	inch	kg/cm²	lbs/inch	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
14	0.55	1.75	25	19,0	62	183	11	48	1134	0.28	9.7
14	0.55	2	29	21.0	69	207	12.4	55	1385	0.34	9.0
14	0.55	2.5	37	22.0	72	232	13.9	61	1520	0.38	9.1
14	0.55	3	44	24.0	79	243	14.6	64	1809	0.45	8.1
16	0.62	2	29	23.0	75	252	15.1	66	1661	0.41	9.1
16	0.62	2.5	37	24.0	79	278	16.7	74	1809	0.45	9.2
16	0.62	3	44	25.0	82	303	18.2	80	1963	0.48	9.3
16	0.62	4	56	27.0	89	350	21	92	2289	0.57	9.1
18	0.70	2.5	37	25.0	82	363	21.8	96	1963	0.48	11.1
18	0.70	3	44	27.0	89	383	23	101	2289	0.57	10.0
18	0.70	4	56	28.0	92	450	27	119	2462	0.61	11.0
18	0.70	4.5	65	31.0	102	483	29	128	3018	0.75	9.6
20	0.78	3	44	27.0	89	376	24	106	2289	0.57	10.5
20	0.78	4	56	31.0	102	460	28.2	124	3018	0.75	9.3
20	0.78	4.5	65	33.0	108	532	33	145	3419	0.84	9.7
