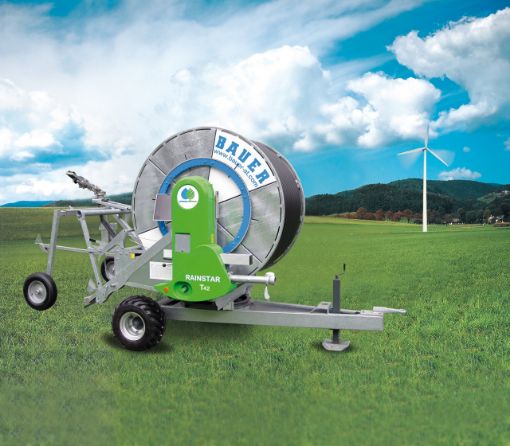

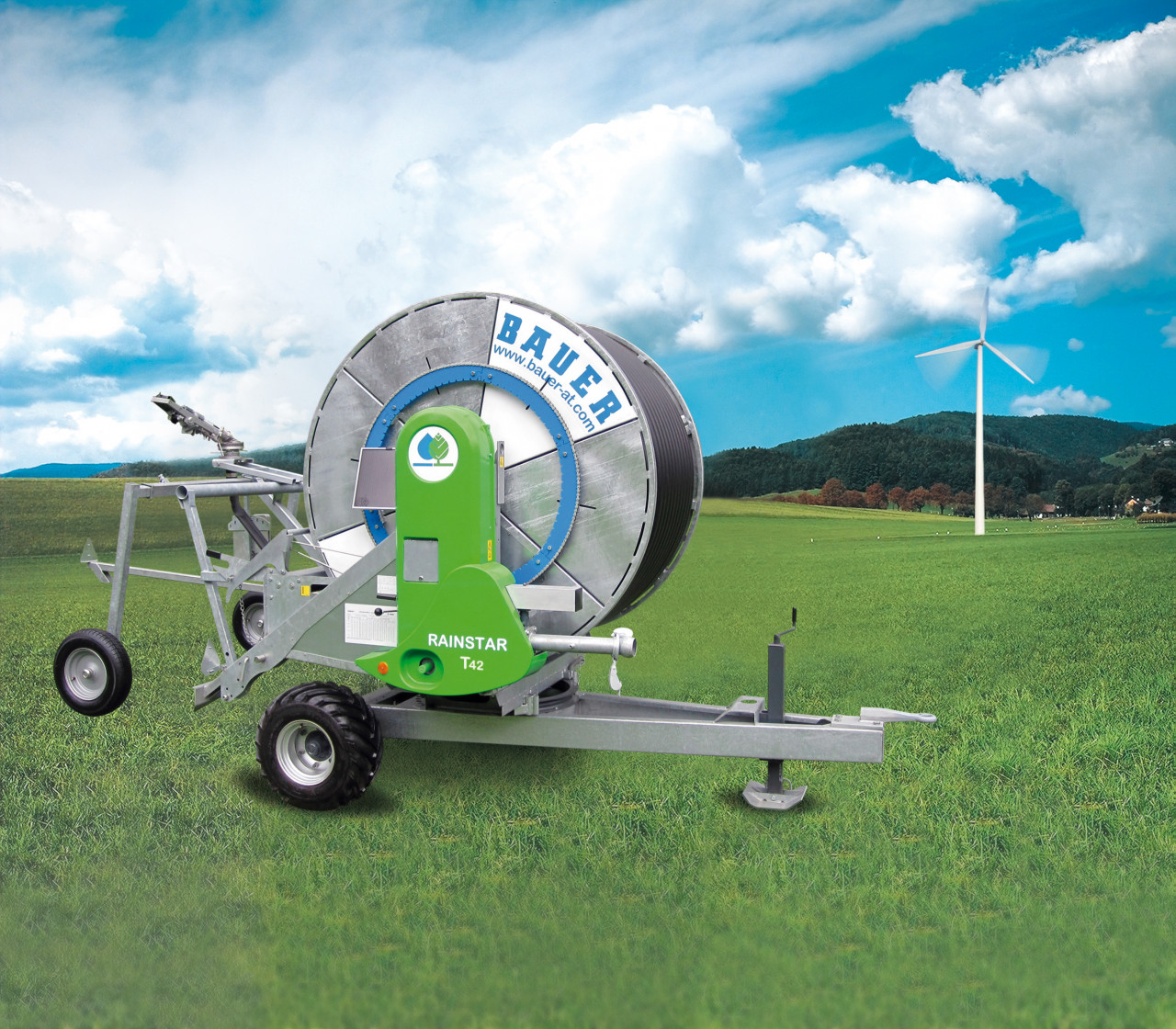

RAINSTAR T42 Turbine Drive Hard Hose Irrigators

Galvanized

All steel parts of our Rainstars are hot dip galvanized. This means optimal corrosion protection for our machines, which is reflected in the stable value and long lifespan of our products.

The fact that galvanizing takes place in plants near our headquarter in Voitsberg proves that we also focus on sustainability in this regard.

Homemade PE-pipe

special mixture of granulates, BAUER can guarantee the highest and constant quality for a long lifespan at highest loads

Due to the independence and flexibility of our own production, it is possible to adjust the wall-thickness of every single PE-pipe in order to achieve low pressure loss and to save energy.

.

Robust machine supports

An important factor for successful irrigation is that the hose-reel irrigator is anchored firmly to the ground. Thanks to an extremely flat angle for the machine supports, the power is directly passed into the centre of the machine and is therefore optimally distributed. Hydraulic machine supports are also available as an option for all models of the RAINSTAR T series.

Exact chain drive

The power transmission for the PE pipe retraction over a large dimensioned pipe reel is achieved with high quality chain and precise, laser-cut chain elements. Due to the large diameter of the sprocket and many singular chain links, the retraction power is spread optimally over a large area. By using coated, high-performance chains, a maintenance-free operation and a long lifespan are guaranteed even with high retraction power.

Closed reel core

The first layer of the PE pipe is the layer exposed to the highest retraction forces and therefore it is important that no edges or small supporting points damage the PE pipe and eventually reduce its lifespan. To prevent such wear, each reel core of the RAINSTAR drum is completely closed and equipped with a special pipe guard (RAINSTAR T51, T61).

Our RAINSTAR series T32 and T42 is well equipped with a deflector plate. Thus the first layer of the PE pipe sits on the drum evenly and without distortion. The pipe is gently guided into the right position for each layer.

Level-wind

A precise level-wind system is essential for a trouble-free operation. The BAUER level-wind works gently and nearly maintenance-free through a double guided winding mechanism and a precisely driven helically grooved spindle. Especially at high retraction forces and angular PE-pipe retraction, it is important that the guide rails are supported twice in order to absorb the forces and guide the PE-pipe precisely in the right direction.

This results in a longer lifespan of the PE-pipe and trouble free operation

Radial full-flow turbine TVR20

The radial full-flow economy turbine TVR 20 with the unique vario nozzle is a power pack and energy saver in one. No matter if small or water saving precipitation rates or high amounts of water need to be dealt with - the TVR 20 turbine convinces with a high degree of efficiency and low pressure losses over the whole range of power.

Even under particularly difficult operating conditions, the turbine still has reserves for operational safety, resulting in enormous cost savings and minimum pressure losses in normal operation.

Maximum use of output is achieved by direct flow from the Vario nozzle onto the impeller. At maximum and minimum nozzle settings, the full stream flows over the turbine's impeller. This way a high efficiency can be achieved with every flow rate with a low loss of pressure.

Production and testing

Highest precision during assembly for maximum efficiency in operation. Every single part of the high-tech turbine is produced in-house. After the assembly each turbine is individually checked at an ultra-modern, fully automatic test bench regarding its performance and quality before the RAINSTAR assembly continues.

Turbine TVR 18-gear-combination

Turbine with optimal performance and improved degree of efficiency - therefore reduced energy costs. In combination with the 4-speed gear for optimal transmission at every retraction speed as well as comfort control and precise crank. Developed and manufactured by BAUER with usual care and quality.

BAUER 4 speed gearbox

The concentrated power of the turbine is transmitted without loss over a V-belt or directly to the robust BAUER 4-speed gearbox. 4 different transmission gear ratios ensure that the turbine operates at cost saving maximum efficiency and thus it is possible to reduce costs.

• The control with precise shifting gate and display for enables changing the gears in a comfortable way.
• The safety lock of the clutch lever prevents a change of gear with engaged drive in order to prevent possible misuse of untrained personnel.  The aerated drum brake is placed directly on the drive & ensures highest security during road transport.
• The brake adapts over different spring loads automatically to the different operating conditions and improper operation is excluded.
• The result is a long service life, high operational reliability and consistent quality.

Gentle to the drops

The complete package

Especially in the final phase of the irrigation or on uneven terrain, the automatic tilt compensation cares for a consistent position of the sprinkler. The angle of the water jet of the sprinkler remains unchanged and protects the crops from damages by water.

The combi-cart wheel is being lifted and locked automatically via the PE pipe retraction and the special kinematics at the end of the irrigation process. Due to the special construction of the RAINSTAR it is not necessary to take any precautions for the transport - the band brake on the gear fixes the pipe reel and the wheel cart, automatic and absolutely safe.

Combi wheel cart

The combi wheel cart impresses with its infinitely adjustable track width as well as the symmetric and asymmetric PE pipe retraction. The high overhead clearance prevents damages even with high crops. Large dimensioned tires guarantee a safe operation, even in rough terrain or with difficult crops.

Constant angle of the water jet

Automatic levelling

Automatic cart lift

Boom AS26 or AS32

Spray booms apply a particularly fine mist, equally protecting the crop and soil structure. Already a low connection pressure is enough for operating a boom. This ensures sustainable use of water and energy resources.

For detailed information see chapter booms

The CAREFREE package

Innovation on a high-tech level

Simple operation at the click of one button is an important factor in the development of new RAINSTAR controls. Through full-time monitoring of chose set-point and actual value of the retraction speed, the crops are precisely irrigated. Programming of pre- and post irrigation can also very easily be done at the click of one button. Our controls work sustainably with a solar panel and a 12 Volt battery to ensure a sufficient power supply. Through the arrangement of 4 magnets there is a permanent measurement even at low retraction speed in order to assure precise regulation of the precipitation.

The integrated shut-off sensor is operationally reliable, protected against accidental operation, mounted under the drive cover and is disengaged mechanically at the end of the strip.

Rainstar controls

Modern irrigation needs reliable, precise control systems. The irrigation electronics from BAUER are state-of-the-art and enable precise control of precipitation and reliable monitoring of the machine. This guarantees minimal water and energy consumption with maximum efficiency at the same time.

Exact length measurement

Regular retraction speed

Contactless

Wear-free

Trouble free

Ecostar 6000

Latest irrigation electronics for precise control of precipitation rates, as well as control and monitoring via SMS function.

• Powerful irrigation electronics with 4.3 „Full LED” Touch-Display
• Program preselection of 12 different programs
• Recording of water consumption on different levels
• Switching of operation / programming of retraction speed to precipitation rate
• Signal for user if end of PE-pipe is reached and for operation of short distance sprinkler
• Record and if required read out the last operating steps for error analysis
• Automatic functional analysis of all components and sensors
• Two solar panels and a 12 volt battery care for sufficient power supply

Ecostar 4300

• Easy operation at the click of one button
• 4‑line display
• Irrigation status indication
• Permanent set-actual speed comparison
• Solar panel + 12V battery
• Operation-hour counter
• Real-time clock-start time indication
• Variable irrigation speed zones
• Precipitation indicator

SmartRain

Simple monitoring and control of different irrigation machines via App directly from the smartphone or the office on the PC.

all about SmartRain
