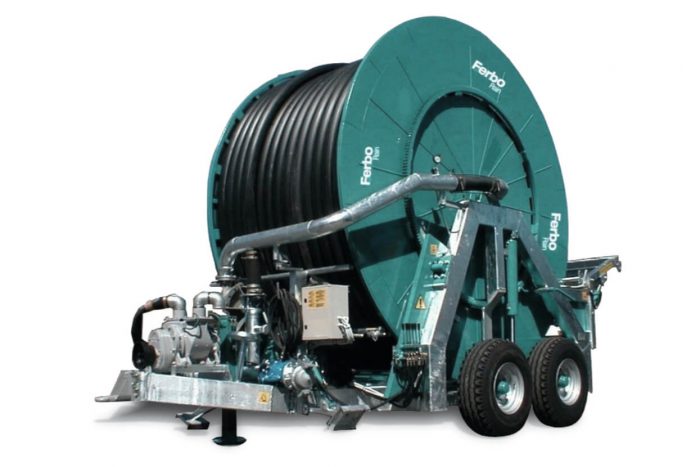

Ferbo GHE SERIES

Overview

The Ferbo GHE Series represents a premium line of turbine drive hard hose irrigators designed for large-scale agricultural operations requiring reliable, high-capacity irrigation solutions. Manufactured in Italy by Ferbo, these mobile irrigators feature a 360° turntable with hydraulic wheel lift technology, combining robust construction with advanced operational control. Each unit is equipped with a flanged turbine on the gearbox with speed control and compensator, a 4-speed gearbox with mechanical drive disengagement, and a comprehensive hydraulic system with quick clutches for seamless tractor connection. Available in eight configurations ranging from 125 mm to 160 mm (4.92 to 6.30 inches) hose diameters and 450 m to 800 m (1476 to 2625 feet) hose lengths, the GHE Series delivers versatile irrigation coverage for diverse farm sizes and crop types.

What distinguishes the GHE Series from conventional hard hose irrigators is its sophisticated multi-speed transmission system with PTO-driven rewinding capability and out-of-drum rewinding functionality, enabling precise control over irrigation speed and hose retrieval both in-field and during maintenance operations. The leadscrew hose layering device ensures uniform hose winding on the painted reel, preventing tangles and extending hose life. The hydraulic system features five independent control levers managing rotation, right and left wheel lift, jack operation, trolley lift, and staker legs, providing operators with comprehensive command over machine positioning and setup. Paired with high-performance Explorer, TWIN 202, or LANCER sectoring sprinklers with complete nozzle sets, the GHE Series delivers uniform water distribution across extensive irrigation runs while the digital hour meter tracks operational time for maintenance scheduling and performance analysis.

Key Features & Benefits

• 360° Turntable with Hydraulic Wheel Lift: Provides complete rotational freedom for flexible field positioning and efficient lane changes, while hydraulic wheel lift eliminates manual labour during setup and transport operations.
• Flanged Turbine with Speed Control and Compensator: Ensures consistent retrieval speed regardless of water pressure variations, delivering uniform irrigation application rates and preventing over or under-watering in different field sections.
• 4-Speed Gearbox with Multiple Drive Modes: Offers precise control over irrigation speed with mechanical drive disengagement, PTO-driven rewinding for powered retrieval, and out-of-drum rewinding capability for maintenance and hose replacement procedures.
• Comprehensive Hydraulic Control System: Five independent control levers manage rotation, individual wheel lift, jack positioning, trolley lift, and staker legs, enabling single-operator setup and adjustment without manual intervention.
• Leadscrew Hose Layering Device: Automatically guides the hose onto the reel in uniform layers, preventing overlapping and crushing that can damage the hose and ensuring smooth deployment on subsequent irrigation cycles.
• Two-Wheel Sprinkler Trolley with Adjustable Track: Accommodates varying row spacings and field conditions while providing stable support for the raingun throughout the irrigation run, reducing ground compaction compared to fixed-track designs.
• Double Water Inlet Configuration: Allows connection from either side of the machine, facilitating positioning in irregular fields and simplifying connection to hydrant networks or mobile water sources.
• RAL 5021 Painted Components: All mechanical parts receive durable RAL 5021 colour coating alongside painted frame and reel, providing superior corrosion resistance and extended service life in humid agricultural environments.
• Digital Hour Meter: Tracks cumulative operating time for accurate maintenance scheduling, warranty documentation, and operational cost analysis across multiple growing seasons.
• Height-Adjustable Drawbar with Lateral Staker Legs: Ensures compatibility with various tractor hitch heights while lateral staker legs provide stability during stationary operation, preventing movement during high-pressure irrigation.

Technical Specifications

Available Hose Configurations

Ideal Applications

• Large-Scale Field Crops: Ideal for irrigating extensive areas of cereals, maize, soybeans, and forage crops where long irrigation runs and high flow rates maximise efficiency and minimise labour requirements.
• Pasture and Forage Production: Excellent for maintaining productive grasslands and hay fields where the adjustable track sprinkler trolley accommodates varying terrain and the sectoring sprinklers prevent overspray onto non-target areas.
• Vegetable Production: Suitable for large-scale vegetable operations requiring uniform water distribution across extensive plantings, with multiple speed settings enabling precise application rates for different crop stages.
• Orchards and Permanent Crops: Effective for under-tree irrigation in orchards and vineyards where the 360° turntable facilitates positioning between rows and the adjustable track accommodates varying row spacings.
• Contract Irrigation Services: Perfect for irrigation contractors serving multiple farms, with the height-adjustable drawbar ensuring compatibility with various tractor types and the digital hour meter documenting billable operating time.
• Water Distribution from Remote Sources: Well-suited for operations irrigating from distant water sources, canals, or reservoirs where the extended hose lengths (up to 800 m / 2625 ft) reach remote field sections without repositioning the water supply.

Mobile Irrigators 360° Turntable With Hydraulic Wheel Lift, Equipped With:
