    I-20

    Manufacturer: Hunter
    The I-20 is loaded with upgraded features such as FloStop™ control, check valves, and efficient nozzles that make it the perfect choice in a range of applications.

    Radius 4.9 to 14.0 m
    Flow 0.07 to 3.23 m³/hr
    Flow 1.2 to 53.8 l/min
    Inlet Size ¾" BSP

    • Versatile: 34 nozzles and 6 body choices
    • Durable: Tough factory-installed rubber cover
    • Adjustable: 50º–360º arc setting with easy through-the-top adjustment
    Manufacturer part number: I-20-00
    *

    Specifications

    Operating Specifications

    • Nozzle choices: 34
    • Radius: 4.9 to 14.0 m
    • Flow: 0.07 to 3.23 m3/hr; 1.2 to 53.8 l/min
    • Recommended pressure range: 1.7 to 4.5 bar; 170 to 450 kPa
    • Operating pressure range: 1.4 to 7.0 bar; 140 to 700 kPa
    • Precipitation rate: 10 mm/hr approximately
    • Nozzle trajectory: standard = 25°, low-angle = 13°
    • Nozzle racks: 1.5 to 8.0 blue, 2.0 to 4.5 low-angle grey, 0.50 to 3.0 black, 6.0 to 13.0 green, MPR-25, MPR-30, MPR-35
    • Warranty period: 5 years

    Factory-Installed Options

    • No Drain Check Valve (NCV models)
    • Reclaimed water ID
    • Blue 1.5–4.0 nozzles

    User-Installed Options

    • HSJ-0 prefabricated ¾" PVC Swing Joint

    Features

    With 34 nozzle choices, a 4.9 to 14.0 m radius, and 6 body choices, the I-20 is an indispensable rotor. Whether you’ve got a small area, sandy soil, or a mix of shrubs and grass, the I-20 is ready to water with efficiency and reliability. Recent improvements include automatic arc return (non-reversing 360, from 50 to 360 degrees) and a non-strippable, vandal-proof drive mechanism that prevents gear stripping and saves repair costs. Adding FloStop™ control, easy, through-the-top arc adjustment, and a standard drain-check valve all equate to a rotor that stands second-to-none in its class.

    Key Benefits

    Patented automatic arc return feature returns the turret back to the original arc pattern if vandalised; adjustable arc from 50° to 360°
    Non-strippable drive mechanism is protected from damage if turned in the opposite direction of travel
    Part-and full-circle in one model is flexible for all landscapes and decreases inventory
    Headed and slotted setscrew allows radius adjustment with a Hunter Wrench or flat-blade screwdriver
    FloStop™ closes the flow of water from individual sprinklers for nozzle changes or repairs
    Flat-top nozzles allow fast, easy insertion
    QuickCheck™ Arc Mechanism for fast arc adjustment
    Available stainless steel riser for extra durability
    Drain Check Valve prevents low-head drainage (up to 3 m of elevation)

    Advanced Features

    Automatic Arc Return

    This patented feature returns the turret to the original arc regardless of where it is turned. This ensures vandal protection in any environment.

    Advanced Feature - Auto Arc Return

    Non-Strippable Drive

    The patented, non-strippable, vandal proof drive mechanism enables the turret to be turned without causing damage.

    Part- and Full-Circle in One Model

    Patented non-reversing 360 for part- and full-circle in one model, from 50 to 360 degrees.

    Advanced Feature - Part- And Full-Circle in One Model

    Headed and Slotted Set Screw

    Use a slotted screwdriver or the Hunter wrench for easier and simpler adjustments as needed.

    FloStop® Control

    FloStop closes the flow of water from individual sprinkler heads while the system is running. This is ideal for changing nozzles or turning off specific heads during maintenance and construction.

    Advanced Feature - FloStop Control

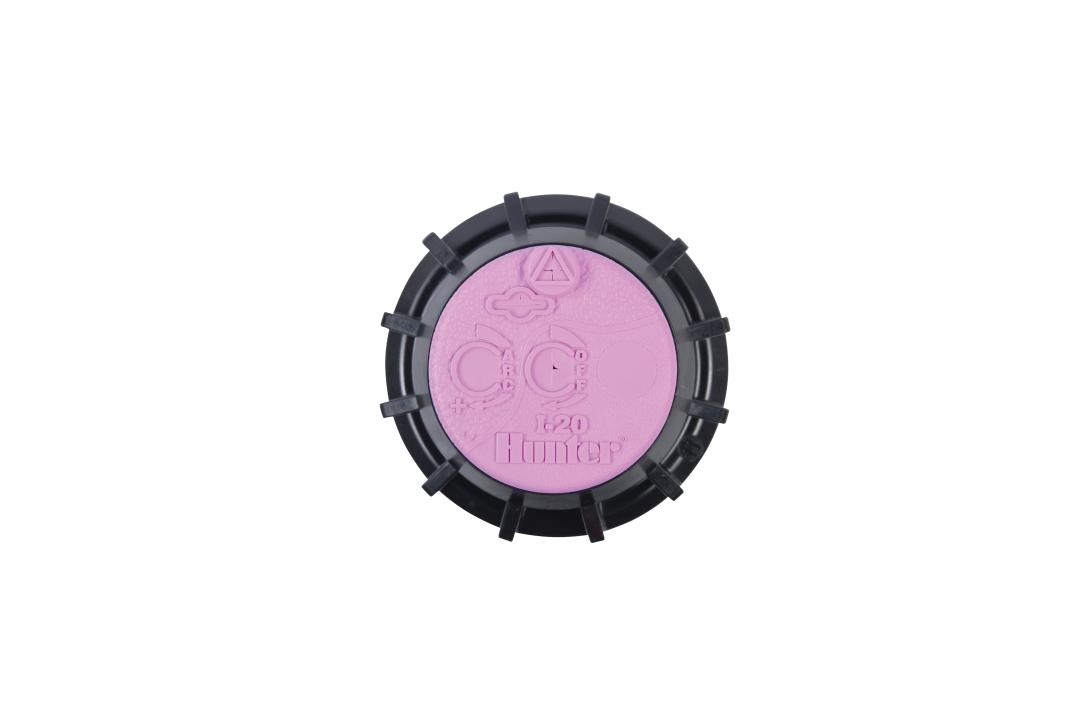

    Optional Reclaimed Water ID

    Purple caps indicate where non-potable irrigation water is being used.

    Stainless Steel Riser

    For unforgiving soil conditions, unpredictable climates, or heavy foot traffic, stainless steel is the best choice

    Drain Check Valve (up to 3.0 m of elevation)

    As air in the system piping can cause long-term damage to rotors and plumbing, the drain check valve keeps lines from draining when the system is shut off. This saves water, reduces liability, and increases system life.



    Charts

    PGP Ultra / I-20 Blue Standard Nozzle Performance Data


    PGP Ultra / I-20 Blue Standard
    Nozzle Performance Data
    View Nozzle
    Nozzle Pressure Radius Flow Precip mm/hr
      bar kPa m m³/hr l/min
    1.5 •
    Blue
    		 1.7 170 8.8 0.27 4.5 7 8
    2.0 200 9.1 0.29 4.8 7 8
    2.5 250 9.4 0.32 5.4 7 8
    3.0 300 9.8 0.35 5.9 7 9
    3.5 350 9.8 0.38 6.4 8 9
    4.0 400 9.8 0.41 6.8 9 10
    4.5 450 9.4 0.43 7.2 10 11
    2.0 •
    Blue
    		 1.7 170 10.1 0.32 5.4 6 7
    2.0 200 10.1 0.35 5.8 7 8
    2.5 250 10.1 0.39 6.5 8 9
    3.0 300 10.4 0.43 7.2 8 9
    3.5 350 10.4 0.47 7.8 9 10
    4.0 400 10.4 0.50 8.3 9 11
    4.5 450 10.4 0.53 8.8 10 11
    2.5 •
    Blue
    		 1.7 170 10.1 0.39 6.6 8 9
    2.0 200 10.4 0.43 7.1 8 9
    2.5 250 10.7 0.48 8.0 8 10
    3.0 300 10.7 0.54 8.9 9 11
    3.5 350 10.7 0.58 9.7 10 12
    4.0 400 10.7 0.62 10.4 11 13
    4.5 450 10.7 0.66 11.1 12 13
    3.0 •
    Blue
    		 1.7 170 10.7 0.50 8.4 9 10
    2.0 200 10.7 0.54 9.1 10 11
    2.5 250 11.0 0.61 10.2 10 12
    3.0 300 11.6 0.68 11.4 10 12
    3.5 350 11.9 0.74 12.3 10 12
    4.0 400 11.9 0.79 13.2 11 13
    4.5 450 11.9 0.84 14.0 12 14
    4.0 •
    Blue
    		 1.7 170 11.3 0.68 11.3 11 12
    2.0 200 11.6 0.73 12.2 11 13
    2.5 250 11.9 0.81 13.6 12 13
    3.0 300 12.2 0.90 15.0 12 14
    3.5 350 12.2 0.97 16.2 13 15
    4.0 400 12.5 1.04 17.3 13 15
    4.5 450 12.5 1.10 18.3 14 16
    5.0 •
    Blue
    		 1.7 170 11.3 0.84 14.0 13 15
    2.0 200 11.6 0.91 15.2 14 16
    2.5 250 11.9 1.02 17.1 15 17
    3.0 300 12.8 1.14 19.0 14 16
    3.5 350 12.8 1.24 20.6 15 17
    4.0 400 12.8 1.32 22.1 16 19
    4.5 450 12.8 1.41 23.4 17 20
    6.0 •
    Blue
    		 1.7 170 11.6 1.01 16.8 15 17
    2.0 200 11.9 1.09 18.2 15 18
    2.5 250 12.2 1.22 20.4 16 19
    3.0 300 13.1 1.36 22.7 16 18
    3.5 350 13.1 1.47 24.5 17 20
    4.0 400 13.4 1.57 26.2 18 20
    4.5 450 13.4 1.67 27.9 19 21
    8.0 •
    Blue
    		 1.7 170 11.3 1.35 22.5 21 25
    2.0 200 11.9 1.46 24.3 21 24
    2.5 250 12.5 1.63 27.2 21 24
    3.0 300 13.4 1.81 30.2 20 23
    3.5 350 13.7 1.95 32.6 21 24
    4.0 400 14.0 2.09 34.8 21 25
    4.5 450 14.0 2.22 36.9 23 26

    Notes:
    All precipitation rates calculated for 180 degree operation. For the precipitation rate for a 360 degree sprinkler, divide by 2.

    PGP Ultra / I-20 Low-Angle Nozzle Performance Data


    PGP Ultra / I-20 Grey Low Angle
    Nozzle Performance Data
    View Nozzle
    Nozzle Pressure Radius Flow Precip mm/hr
      bar kPa m m³/hr l/min
    2.0
    LA •
    Grey
    		 1.7 170 7.3 0.33 5.6 12 14
    2.0 200 7.6 0.36 6.0 12 14
    2.5 250 7.9 0.40 6.7 13 15
    3.0 300 8.2 0.45 7.4 13 15
    3.5 350 8.5 0.48 8.0 13 15
    4.0 400 8.8 0.52 8.6 13 15
    4.5 450 9.1 0.55 9.1 13 15
    2.5
    LA •
    Grey
    		 1.7 170 7.9 0.44 7.3 14 16
    2.0 200 8.2 0.47 7.9 14 16
    2.5 250 8.8 0.53 8.8 14 16
    3.0 300 9.4 0.59 9.8 13 15
    3.5 350 10.1 0.64 10.6 13 15
    4.0 400 10.4 0.68 11.3 13 15
    4.5 450 10.7 0.72 12.0 13 15
    3.5
    LA •
    Grey
    		 1.7 170 8.5 0.58 9.7 16 18
    2.0 200 8.8 0.62 10.3 16 18
    2.5 250 9.1 0.68 11.4 16 19
    3.0 300 10.1 0.75 12.5 15 17
    3.5 350 10.7 0.80 13.3 14 16
    4.0 400 11.0 0.85 14.1 14 16
    4.5 450 11.3 0.89 14.8 14 16
    4.5
    LA •
    Grey
    		 1.7 170 8.2 0.71 11.8 21 24
    2.0 200 8.8 0.76 12.7 19 23
    2.5 250 9.1 0.84 14.1 20 23
    3.0 300 10.1 0.93 15.5 18 21
    3.5 350 10.7 1.00 16.6 18 20
    4.0 400 11.0 1.06 17.6 18 20
    4.5 450 11.3 1.12 18.6 18 20

    Notes:
    All precipitation rates calculated for 180 degree operation. For the precipitation rate for a 360 degree sprinkler, divide by 2.

    PGP Ultra / I-20 High-Flow Nozzle Performance Data


    PGP Ultra / I-20 High Flow Nozzle
    Performance Data
    View Nozzle
    Nozzle Pressure Radius Flow Precip mm/hr
      bar kPa m m³/hr l/min
    10 •
    Dk. Green
    		 1.7 170 10.7 1.48 24.6 26 30
    2.0 200 11.9 1.60 26.7 23 26
    2.5 250 12.5 1.80 30.0 23 27
    3.0 300 12.8 2.01 33.5 25 28
    3.5 350 13.1 2.18 36.3 25 29
    4.0 400 13.7 2.34 39.0 25 29
    4.5 450 14.0 2.49 41.5 25 29
    13 •
    Dk. Green
    		 1.7 170 11.0 1.91 31.9 32 37
    2.0 200 12.2 2.08 34.6 28 32
    2.5 250 12.8 2.34 38.9 29 33
    3.0 300 13.1 2.61 43.4 30 35
    3.5 350 13.4 2.83 47.1 31 36
    4.0 400 13.7 3.03 50.5 32 37
    4.5 450 14.0 3.23 53.8 33 38
    6.0
    LA •
    Dk. Green
    		 1.7 170 9.1 0.86 14.3 21 24
    2.0 200 9.4 0.94 15.6 21 24
    2.5 250 10.1 1.07 17.8 21 24
    3.0 300 10.7 1.20 20.0 21 24
    3.5 350 11.3 1.31 21.9 21 24
    4.0 400 11.6 1.42 23.6 21 24
    4.5 450 11.9 1.52 25.3 21 25
    8.0
    LA •
    Dk. Green
    		 1.7 170 10.1 1.17 19.5 23 27
    2.0 200 10.7 1.28 21.3 22 26
    2.5 250 11.3 1.44 24.0 23 26
    3.0 300 11.6 1.61 26.9 24 28
    3.5 350 11.9 1.76 29.3 25 29
    4.0 400 12.5 1.89 31.5 24 28
    4.5 450 12.5 2.01 33.6 26 30

    Notes:
    All precipitation rates calculated for 180 degree operation. For the precipitation rate for a 360 degree sprinkler, divide by 2.

    PGP Ultra / I-20 Black Short-Radius Nozzle Performance Data


    PGP Ultra / I-20 Black Short Radius Nozzle Performance Data
    View Nozzle
    Nozzle Pressure Radius Flow Precip mm/hr
      bar kPa m m³/hr l/min
    .50
    SR •
    Black
    		 1.7 170 4.9 0.07 1.2 6 7
    2.0 200 5.2 0.08 1.3 6 7
    2.5 250 5.2 0.09 1.5 7 8
    3.0 300 5.2 0.10 1.7 8 9
    3.5 350 5.5 0.12 1.9 8 9
    4.0 400 5.5 0.13 2.1 8 10
    4.5 450 5.5 0.14 2.3 9 10
    1.0
    SR •
    Black
    		 1.7 170 4.9 0.16 2.7 14 16
    2.0 200 5.2 0.17 2.9 13 15
    2.5 250 5.2 0.19 3.2 14 17
    3.0 300 5.2 0.21 3.6 16 18
    3.5 350 5.5 0.23 3.8 15 18
    4.0 400 5.5 0.25 4.1 16 19
    4.5 450 5.5 0.26 4.3 17 20
    2.0
    SR •
    Black
    		 1.7 170 4.9 0.28 4.7 24 27
    2.0 200 5.2 0.31 5.2 23 27
    2.5 250 5.2 0.36 6.0 27 31
    3.0 300 5.2 0.41 6.9 31 35
    3.5 350 5.5 0.45 7.6 30 35
    4.0 400 5.5 0.49 8.2 33 38
    4.5 450 5.5 0.53 8.9 35 41
    .75
    SR •
    Black
    		 1.7 170 6.7 0.12 2.0 5 6
    2.0 200 7.0 0.13 2.2 5 6
    2.5 250 7.0 0.15 2.4 6 7
    3.0 300 7.3 0.16 2.7 6 7
    3.5 350 7.6 0.17 2.9 6 7
    4.0 400 7.6 0.19 3.1 6 7
    4.5 450 7.6 0.20 3.3 7 8
    1.5
    SR •
    Black
    		 1.7 170 6.7 0.23 3.8 10 12
    2.0 200 7.0 0.25 4.1 10 12
    2.5 250 7.0 0.28 4.6 11 13
    3.0 300 7.3 0.31 5.2 12 13
    3.5 350 7.6 0.34 5.6 12 13
    4.0 400 7.6 0.36 6.0 12 14
    4.5 450 7.6 0.39 6.4 13 15
    3.0
    SR •
    Black
    		 1.7 170 6.7 0.53 8.9 24 27
    2.0 200 7.0 0.56 9.3 23 26
    2.5 250 7.0 0.60 10.0 24 28
    3.0 300 7.3 0.64 10.7 24 28
    3.5 350 7.6 0.67 11.2 23 27
    4.0 400 7.6 0.70 11.7 24 28
    4.5 450 7.6 0.73 12.1 25 29

    Notes:
    All precipitation rates calculated for 180 degree operation. For the precipitation rate for a 360 degree sprinkler, divide by 2.

    MPR-25 Red Nozzle Performance Data


    PGP ULTRA / I-20 MPR-25 RED NOZZLE PERFORMANCE DATA
    View Nozzle
    Arc Pressure Radius Flow Precip mm/hr
      bar kPa m m3/hr l/min
    •
    Red
    90°
    		1.7 170 7.0 0.17 3.0</
    *
    *
    *
    *
