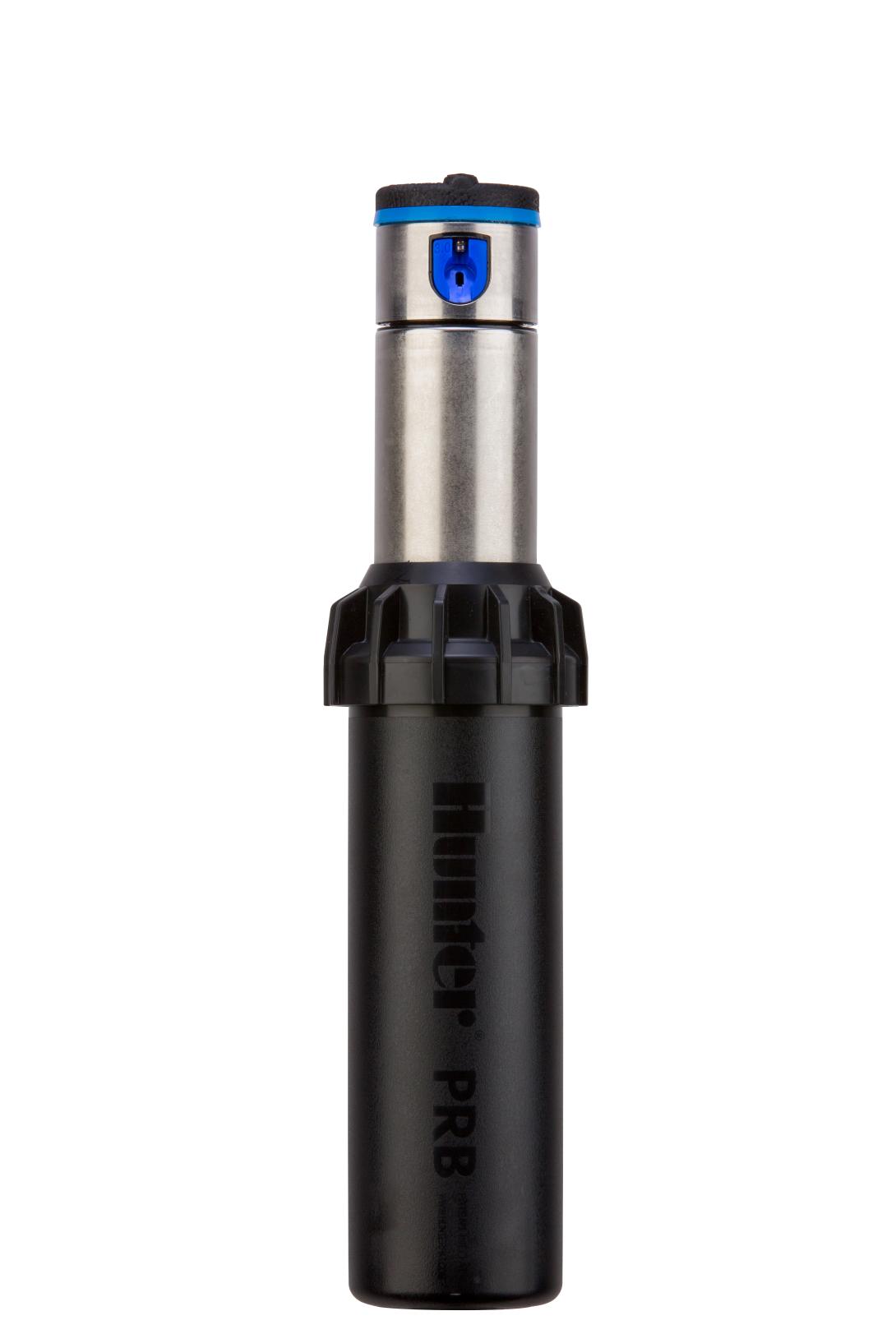

    PGP Ultra & I-20 PRB

    Manufacturer: Hunter
    The PGP Ultra and I-20 PRB are built to thrive in applications where high water pressure could otherwise lead to inefficient nozzle operation.

    Radius 4.9 to 14.0 m
    Flow 0.07 to 2.22 m³/hr
    Flow 1.2 to 36.9 l/min
    Inlet Size ¾" BSP

    • Pressure-regulated body (3.1 bar; 310 kPa) reduces high incoming pressure to increase nozzle efficiency (requires dynamic pressure differential: 1.0 bar; 103 kPa)
    • Part- and full-circle in one model for flexibility across landscapes and reduced inventory
    • Drain Check Valve prevents low-head drainage (up to 3 m of elevation)
    Manufacturer part number: I-20-00-PRB
    *

    Specifications

    OPERATING SPECIFICATIONS

    • Nozzle choices: 30
    • Radius: 4.9 to 14.0 m
    • Flow: 0.07 to 2.22 m3/hr; 1.2 to 36.9 l/min
    • Nozzle discharge pressure: 3.1 bar; 310 kPa
    • Operating pressure range: 2.4 to 7.0 bar; 240 to 700 kPa
    • Recommended pressure range: 4.1 to 7.0 bar; 410 to 700 kPa
    • Precipitation rate: 10 mm/hr approximately
    • Nozzle trajectory: standard = 25°, low-angle = 13°
    • Nozzle racks: 1.5 to 8.0 blue, 2.0 to 4.5 low-angle grey, 0.50 to 3.0 black, MPR-25, MPR-30, MPR-35
    • Warranty period: 5 years

    FACTORY-INSTALLED OPTIONS

    • Reclaimed water ID
    • Blue #1.5–4.0 nozzles

    USER-INSTALLED OPTIONS

    • HSJ-0 prefabricated ¾" PVC swing joint

    Features

    The PGP and I-20 pressure regulated bodies will take incoming pressures of 3.5-7 Bar and reduce them to 3.1 Bar. The Hunter PRB rotors allow the nozzles to operate at peak efficiency, saving up to 25 percent more water. Having the pressure regulator in the body allows it to remain in place and functional even if the original riser is removed and replaced for service.

    Key Benefits

    Pressure-regulated body (3.1 bar; 310 kPa) reduces high incoming pressure to increase nozzle efficiency
    Patented automatic arc return feature returns the turret back to the original arc pattern if vandalised; adjustable arc from 50° to 360°
    Non-strippable drive mechanism is protected from damage if turned in the opposite direction of travel
    Part- and full-circle in one model for flexibility across landscapes and reduced inventory
    Headed and slotted setscrew allows radius adjustment with a Hunter wrench or flat-blade screwdriver
    FloStop™ closes the flow of water from individual sprinklers, to change the nozzle or perform repairs (I-20 only)
    Flat-top nozzles allow fast, easy insertion
    QuickCheck™ arc mechanism for fast arc adjustment
    Available stainless steel riser for extra durability
    Drain check valve prevents low-head drainage (up to 3 m of elevation)

    Advanced Features

    Pressure Regulated Body (3.1 bar; 310 kPa)

    Reduces high incoming pressure to prevent misting and allows nozzles to operate at peak efficiency. Lower pressure produces larger water drop - lets that fight the effects of wind.

    PGP Ultra 10cm, I-20 10cm and 15cm

    Stainless Steel Riser (PRB)

    For unforgiving soil conditions, unpredictable climates, or heavy foot traffic, stainless steel with the I-20 model is the best choice.

    Drain Check Valve (up to 3.0 m of elevation)

    As air in the system piping can cause long-term damage to rotors and plumbing, the drain check valve keeps lines from draining when the system is shut off. This saves water, reduces liability, and increases system life.

    Optional Reclaimed Water ID

    Purple caps indicate where non-potable irrigation water is being used.

    Automatic Arc Return

    This patented feature returns the turret to the original arc regardless of where it is turned. This ensures vandal protection in any environment.

    Advanced Feature - Auto Arc Return

    Non-Strippable Drive

    The patented, non-strippable, vandal proof drive mechanism enables the turret to be turned without causing damage.

    Part- and Full-Circle in One Model

    Patented non-reversing 360 for part- and full-circle in one model, from 50 to 360 degrees.

    Advanced Feature - Part- And Full-Circle in One Model

    Headed and Slotted Set Screw

    Use a slotted screwdriver or the Hunter wrench for easier and simpler adjustments as needed.

    FloStop® Control for I-20

    FloStop closes the flow of water from individual sprinkler heads while the system is running. This is ideal for changing nozzles or turning off specific heads during maintenance and construction.

    Advanced Feature - FloStop Control


    Charts

    PGP Ultra / I-20 / PRB Blue Standard Nozzle Performance Data


    PGP Ultra / I-20 / PRB Blue Standard
    Nozzle Performance Data
    View Nozzle
    Nozzle Pressure Radius Flow Precip mm/hr
      bar kPa m m³/hr l/min
    1.5 •
    Blue
    		 1.7 170 8.8 0.27 4.5 7 8
    2.0 200 9.1 0.29 4.8 7 8
    2.5 250 9.4 0.32 5.4 7 8
    3.0 300 9.8 0.35 5.9 7 9
    3.5 350 9.8 0.38 6.4 8 9
    4.0 400 9.8 0.41 6.8 9 10
    4.5 450 9.4 0.43 7.2 10 11
    2.0 •
    Blue
    		 1.7 170 10.1 0.32 5.4 6 7
    2.0 200 10.1 0.35 5.8 7 8
    2.5 250 10.1 0.39 6.5 8 9
    3.0 300 10.4 0.43 7.2 8 9
    3.5 350 10.4 0.47 7.8 9 10
    4.0 400 10.4 0.50 8.3 9 11
    4.5 450 10.4 0.53 8.8 10 11
    2.5 •
    Blue
    		 1.7 170 10.1 0.39 6.6 8 9
    2.0 200 10.4 0.43 7.1 8 9
    2.5 250 10.7 0.48 8.0 8 10
    3.0 300 10.7 0.54 8.9 9 11
    3.5 350 10.7 0.58 9.7 10 12
    4.0 400 10.7 0.62 10.4 11 13
    4.5 450 10.7 0.66 11.1 12 13
    3.0 •
    Blue
    		 1.7 170 10.7 0.50 8.4 9 10
    2.0 200 10.7 0.54 9.1 10 11
    2.5 250 11.0 0.61 10.2 10 12
    3.0 300 11.6 0.68 11.4 10 12
    3.5 350 11.9 0.74 12.3 10 12
    4.0 400 11.9 0.79 13.2 11 13
    4.5 450 11.9 0.84 14.0 12 14
    4.0 •
    Blue
    		 1.7 170 11.3 0.68 11.3 11 12
    2.0 200 11.6 0.73 12.2 11 13
    2.5 250 11.9 0.81 13.6 12 13
    3.0 300 12.2 0.90 15.0 12 14
    3.5 350 12.2 0.97 16.2 13 15
    4.0 400 12.5 1.04 17.3 13 15
    4.5 450 12.5 1.10 18.3 14 16
    5.0 •
    Blue
    		 1.7 170 11.3 0.84 14.0 13 15
    2.0 200 11.6 0.91 15.2 14 16
    2.5 250 11.9 1.02 17.1 15 17
    3.0 300 12.8 1.14 19.0 14 16
    3.5 350 12.8 1.24 20.6 15 17
    4.0 400 12.8 1.32 22.1 16 19
    4.5 450 12.8 1.41 23.4 17 20
    6.0 •
    Blue
    		 1.7 170 11.6 1.01 16.8 15 17
    2.0 200 11.9 1.09 18.2 15 18
    2.5 250 12.2 1.22 20.4 16 19
    3.0 300 13.1 1.36 22.7 16 18
    3.5 350 13.1 1.47 24.5 17 20
    4.0 400 13.4 1.57 26.2 18 20
    4.5 450 13.4 1.67 27.9 19 21
    8.0 •
    Blue
    		 1.7 170 11.3 1.35 22.5 21 25
    2.0 200 11.9 1.46 24.3 21 24
    2.5 250 12.5 1.63 27.2 21 24
    3.0 300 13.4 1.81 30.2 20 23
    3.5 350 13.7 1.95 32.6 21 24
    4.0 400 14.0 2.09 34.8 21 25
    4.5 450 14.0 2.22 36.9 23 26

    Notes:
    All precipitation rates calculated for 180 degree operation. For the precipitation rate for a 360 degree sprinkler, divide by 2.

    PGP Ultra / I-20 / PRB Black Short Radius Nozzle Performance Data


    PGP Ultra / I-20 / PRB Black Short Radius
    Nozzle Performance Data
    View Nozzle
    Nozzle Pressure Radius Flow Precip mm/hr
      bar kPa m m³/hr l/min
    .50
    SR •
    Black
    		 1.7 170 4.9 0.07 1.2 6 7
    2.0 200 5.2 0.08 1.3 6 7
    2.5 250 5.2 0.09 1.5 7 8
    3.0 300 5.2 0.10 1.7 8 9
    3.5 350 5.5 0.12 1.9 8 9
    4.0 400 5.5 0.13 2.1 8 10
    4.5 450 5.5 0.14 2.3 9 10
    1.0
    SR •
    Black
    		 1.7 170 4.9 0.16 2.7 14 16
    2.0 200 5.2 0.17 2.9 13 15
    2.5 250 5.2 0.19 3.2 14 17
    3.0 300 5.2 0.21 3.6 16 18
    3.5 350 5.5 0.23 3.8 15 18
    4.0 400 5.5 0.25 4.1 16 19
    4.5 450 5.5 0.26 4.3 17 20
    2.0
    SR •
    Black
    		 1.7 170 4.9 0.28 4.7 24 27
    2.0 200 5.2 0.31 5.2 23 27
    2.5 250 5.2 0.36 6.0 27 31
    3.0 300 5.2 0.41 6.9 31 35
    3.5 350 5.5 0.45 7.6 30 35
    4.0 400 5.5 0.49 8.2 33 38
    4.5 450 5.5 0.53 8.9 35 41
    .75
    SR •
    Black
    		 1.7 170 6.7 0.12 2.0 5 6
    2.0 200 7.0 0.13 2.2 5 6
    2.5 250 7.0 0.15 2.4 6 7
    3.0 300 7.3 0.16 2.7 6 7
    3.5 350 7.6 0.17 2.9 6 7
    4.0 400 7.6 0.19 3.1 6 7
    4.5 450 7.6 0.20 3.3 7 8
    1.5
    SR •
    Black
    		 1.7 170 6.7 0.23 3.8 10 12
    2.0 200 7.0 0.25 4.1 10 12
    2.5 250 7.0 0.28 4.6 11 13
    3.0 300 7.3 0.31 5.2 12 13
    3.5 350 7.6 0.34 5.6 12 13
    4.0 400 7.6 0.36 6.0 12 14
    4.5 450 7.6 0.39 6.4 13 15
    3.0
    SR •
    Black
    		 1.7 170 6.7 0.53 8.9 24 27
    2.0 200 7.0 0.56 9.3 23 26
    2.5 250 7.0 0.60 10.0 24 28
    3.0 300 7.3 0.64 10.7 24 28
    3.5 350 7.6 0.67 11.2 23 27
    4.0 400 7.6 0.70 11.7 24 28
    4.5 450 7.6 0.73 12.1 25 29

    Notes:
    All precipitation rates calculated for 180 degree operation. For the precipitation rate for a 360 degree sprinkler, divide by 2.

    PGP Ultra / I-20 / PRB Grey Low Angle Nozzle Performance Data


    PGP Ultra / I-20 / PRB Grey Low Angle
    Nozzle Performance Data
    View Nozzle
    Nozzle Pressure Radius Flow Precip mm/hr
      bar kPa m m³/hr l/min
    2.0
    LA •
    Grey
    		 1.7 170 7.3 0.33 5.6 12 14
    2.0 200 7.6 0.36 6.0 12 14
    2.5 250 7.9 0.40 6.7 13 15
    3.0 300 8.2 0.45 7.4 13 15
    3.5 350 8.5 0.48 8.0 13 15
    4.0 400 8.8 0.52 8.6 13 15
    4.5 450 9.1 0.55 9.1 13 15
    2.5
    LA •
    Grey
    		 1.7 170 7.9 0.44 7.3 14 16
    2.0 200 8.2 0.47 7.9 14 16
    2.5 250 8.8 0.53 8.8 14 16
    3.0 300 9.4 0.59 9.8 13 15
    3.5 350 10.1 0.64 10.6 13 15
    4.0 400 10.4 0.68 11.3 13 15
    4.5 450 10.7 0.72 12.0 13 15
    3.5
    LA •
    Grey
    		 1.7 170 8.5 0.58 9.7 16 18
    2.0 200 8.8 0.62 10.3 16 18
    2.5 250 9.1 0.68 11.4 16 19
    3.0 300 10.1 0.75 12.5 15 17
    3.5 350 10.7 0.80 13.3 14 16
    4.0 400 11.0 0.85 14.1 14 16
    4.5 450 11.3 0.89 14.8 14 16
    4.5
    LA •
    Grey
    		 1.7 170 8.2 0.71 11.8 21 24
    2.0 200 8.8 0.76 12.7 19 23
    2.5 250 9.1 0.84 14.1 20 23
    3.0 300 10.1 0.93 15.5 18 21
    3.5 350 10.7 1.00 16.6 18 20
    4.0 400 11.0 1.06 17.6 18 20
    4.5 450 11.3 1.12 18.6 18 20

    Notes:
    All precipitation rates calculated for 180 degree operation. For the precipitation rate for a 360 degree sprinkler, divide by 2.

    PGP Ultra / I-20 / PRB MPR-25 Red Nozzle Performance Data


    PGP ULTRA / I-20 / PRB MPR-25 RED NOZZLE PERFORMANCE DATA
    View Nozzle
    Arc Pressure Radius Flow Precip mm/hr
      bar kPa m m3/hr l/min
    •
    Red
    90°
    		1.7 170 7.0 0.17 3.0 13.7 15.8
    2.4 240 7.3 0.20 3.6 14.9 17.3
    3.1 310 7.6 0.23 3.6 15.6 18.1
    3.8 380 7.6 0.25 4.2 17.4 20.1
    4.5 450 7.6 0.27 4.8 18.9 21.9
    •
    Red
    120°
    		1.7 170 7.0 0.23 3.6 13.9 16.0
    2.4 240 7.3 0.27 4.8 15.4 17.8
    3.1 310 7.6 0.31 5.4 16.2 18.7
    3.8 380 7.6 0.35 6.0 18.0 20.7
    4.5 450 7.6 0.38 6.6 19.6 22.6
    •
    Red
    180°
    		1.7 170 7.0 0.33 5.4 13.3 15.4
    2.4 240 7.3 0.39 6.6 14.7 17.0
    3.1 310 7.6 0.45 7.2 15.5 17.9
    3.8 380 7.6 0.50 8.4 17.3 20.0
    4.5 450 7.6 0.55 9.0 18.9 21.8
    •
    Red
    360°
    		1.7 170 7.0 0.63 10.8 12.8 14.8
    2.4 240 7.3 0.76 12.6 14.2 16.4
    3.1 310 7.6 0.87 14.4 14.9 17.3
    3.8 380 7.6 0.97 16.2 16.6 19.2
    4.5 450 7.6 1.05 17.4 18.1 20.9

    PGP Ultra / I-20 / PRB MPR-30 Lt. Green Nozzle Performance Data


    PGP ULTRA / I-20 / PRB MPR-30 LT. GREEN NOZZLE PERFORMANCE DATA
    View Nozzle
    Arc Pressure Radius Flow Precip mm/hr
      bar kPa m m3/hr l/min
    •
    Lt. Green
    90°
    		1.7 170 8.8 0.23 3.6 12.0 13.8
    2.4 240 9.1 0.28 4.8 13.4 15.4
    3.1 310 9.1 0.32 5.4 15.2 17.6
    3.8 380 9.1 0.35 6.0 17.0 19.6
    4.5 450 9.1 0.38 6.6 18.4 21.2
    •
    Lt. Green
    *
    *
    *
    *
