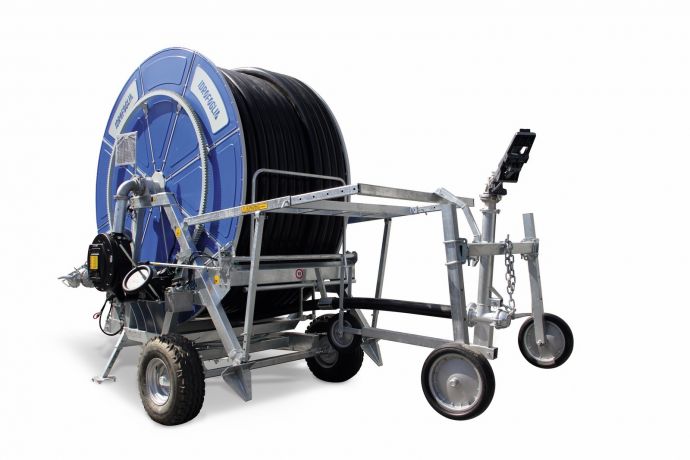

Turbocar Active G5

Hose reel irrigator with turntable 360°equipped with:

Galvanized frame and painted reel
Mechanical parts painted with RAL 5017
Flanged turbine on the gearbox, speed control and compensator
Gearbox 4 speeds with automatic drive disengagement, device for rewinding through PTO and rewinding out of the drum
Leadscrew hose layering device
3 wheels sprinkler trolley with adjustable track
Hydraulic lift operations through manual pump for trolley lift and staker leg
Drawbar with connection adjustable in height, mechanical jack and lateral staker legs
Drum rotation that can be operated from trolley lifting device through release lever
Sectoring sprinkler with set of nozzles
Supply hose 4 mt. with female ball joint on line side
Double water inlet
Instructions and maintenance handbook
Guarantee coupon

The G5 is suited for large areas, with hose capacity up to 540 meters and a 360° rotating turret. The reinforced structure and three-wheel trolley with adjustable track width ensure stability and ease of movement, even on complex or uneven terrain.

Serie	Codice	Diametro tubo	Lunghezza tubo	Irrigatore
G5	100 G 500	mm 100	mt 500	Reflex / Twin 140
G5	100 G 550	mm 100	mt 550	Reflex / Twin 140
G5	110 G 400	mm 110	mt 400	Reflex / Twin 140
G5	110 G 420	mm 110	mt 420	Reflex / Twin 160
G5	110 G 450	mm 110	mt 450	Reflex / Twin 160
G5	110 G 470	mm 110	mt 470	Reflex / Twin 160
G5	110 G 500	mm 110	mt 500	Reflex / Twin 160
G5	110 G 540	mm 110	mt 540	Reflex / Twin 160
G5	120 G 440	mm 120	mt 440	Explorer / Twin 202
G5	125 G 300	mm 125	mt 300	Explorer / Twin 202
G5	125 G 340	mm 125	mt 340	Explorer / Twin 202
G5	125 G 380	mm 125	mt 380	Explorer / Twin 202
G5	125 G 400	mm 125	mt 400	Explorer / Twin 202
G5	140 G 280	mm 140	mt 280	Explorer / Twin 202
G5	140 G 300	mm 140	mt 300	Explorer / Twin 202
