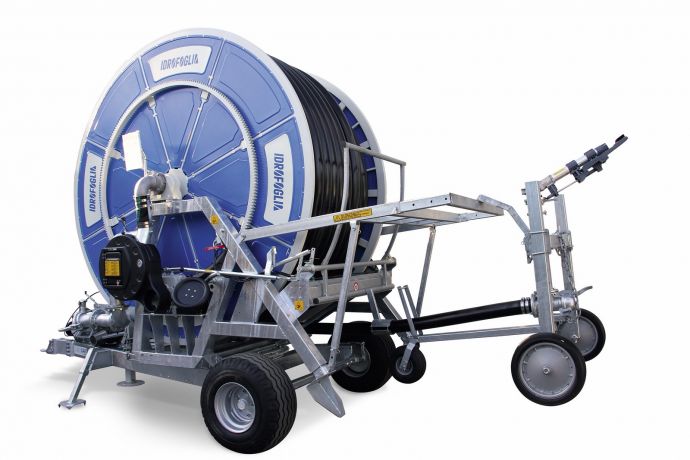

Turbocar Active G6

Hose reel irrigator with turntable 360°equipped with:

Galvanized frame and painted reel
Mechanical parts painted with RAL 5017
Flanged turbine on the gearbox, speed control and compensator
Gearbox 4 speeds with automatic drive disengagement, device for rewinding through PTO and rewinding out of the drum
Leadscrew hose layering device
3 wheels sprinkler trolley with adjustable track
Hydraulic lift operations through manual pump for trolley lift and staker leg
Drawbar with connection adjustable in height, mechanical jack and lateral staker legs
Drum rotation that can be operated from trolley lifting device through release lever
Sectoring sprinkler with set of nozzles
Supply hose 4 mt. with female ball joint on line side
Double water inlet
Instructions and maintenance handbook
Guarantee coupon

The G6 is the top-of-the-line model, with a hose capacity of up to 680 meters and a 360° rotating turret. It offers superior performance, ease of use, and high durability, designed for very large surfaces and demanding working conditions, ensuring uniform coverage and excellent maneuverability.

Serie	Codice	Diametro tubo	Lunghezza tubo	Irrigatore
G6	110 G 630	mm 110	mt 630	Reflex / Twin 160
G6	110 G 680	mm 110	mt 680	Reflex / Twin 160
G6	125 G 470	mm 125	mt 470	Explorer / Twin 202
G6	125 G 500	mm 125	mt 500	Explorer / Twin 202
G6	135 G 450	mm 135	mt 450	Explorer / Twin 202
G6	135 G 480	mm 135	mt 480	Explorer / Twin 202
G6	140 G 360	mm 140	mt 360	Explorer / Twin 202
G6	140 G 400	mm 140	mt 400	Explorer / Twin 202
G6	150 G 330	mm 150	mt 330	Explorer / Twin 202
G6	150 G 350	mm 150	mt 350	Explorer / Twin 202
