Overview

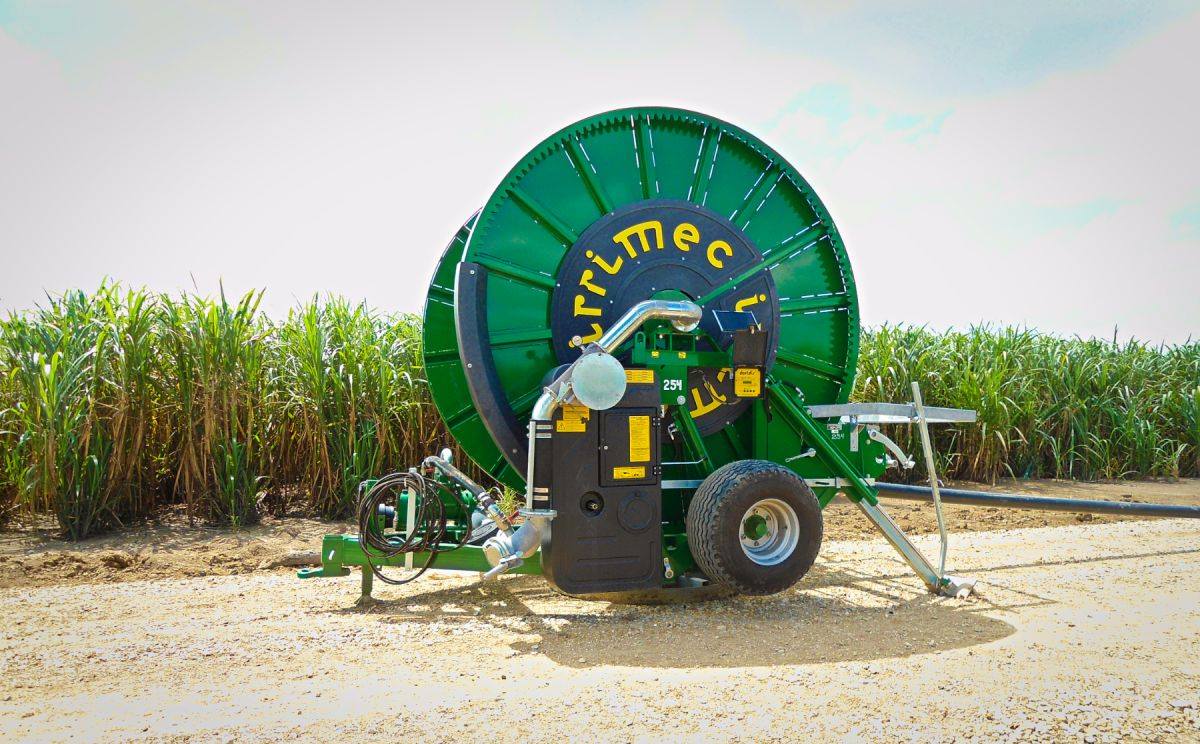

The Irrimec MASTER MF1/3 is a professional turbine drive hard hose irrigator engineered and manufactured in Italy by Irrimec, a leading global innovator in irrigation technology. This water-powered reel system harnesses the energy of the irrigation water supply itself to rewind hoses ranging from 90 mm to 140 mm (3.54 to 5.51 inches) in diameter and extending from 250 m to 520 m (820 to 1,706 feet) in length, delivering efficient coverage across medium to large-scale agricultural operations. The turbine drive mechanism eliminates the need for external power sources, making the MASTER MF1/3 an ideal hard hose irrigator for remote fields, cost-conscious operations, and growers seeking reliable, fuel-free irrigation automation.
What distinguishes the MASTER MF1/3 within the turbine drive hard hose irrigator category is its robust TG turbine gearbox configuration, precision chain drive transmission, and engineered hose guide system that ensures consistent, uniform rewinding across the full hose length. The galvanised chassis treatment provides exceptional corrosion resistance for long-term durability in demanding field environments, while the heavy-duty cart platform offers stability and ease of transport between irrigation sites. With 21 distinct hose diameter and length configurations, the MASTER MF1/3 delivers unmatched flexibility to match field dimensions, crop requirements, and water supply characteristics without the operational complexity or maintenance demands of engine-driven alternatives.
Key Features & Benefits
- Water-Powered Turbine Drive: Eliminates fuel costs, engine maintenance, and electricity requirements by harnessing irrigation water pressure to drive the rewinding mechanism — delivers complete operational independence in remote paddocks and reduces total cost of ownership over the irrigator's lifespan.
- TG Turbine Gearbox System: Precision-engineered gearbox converts turbine rotation into controlled, consistent hose retrieval speed proportional to water flow rate, ensuring uniform application rates and preventing hose kinking or uneven rewinding that can damage equipment or reduce irrigation uniformity.
- Integrated Speed Control: Built-in bypass valve allows fine adjustment of turbine speed independent of mainline pressure, enabling operators to match retrieval speed precisely to crop water requirements, soil infiltration rates, and field topography without throttling the raingun or compromising application uniformity.
- Heavy-Duty Chain Drive Transmission: Robust chain and sprocket system transfers turbine power to the hose reel drum with minimal friction losses and maximum reliability, reducing maintenance intervals and ensuring decades of dependable performance even under continuous seasonal operation.
- Engineered Hose Guide Mechanism: Automated guide system traverses the full drum width during rewinding, laying hose evenly across the reel and preventing overlapping, binding, or edge buildup that can damage hose walls and create retrieval problems during subsequent irrigation cycles.
- Galvanised Chassis Construction: Complete hot-dip galvanisation of the structural frame and critical components provides superior corrosion resistance against fertiliser residues, soil moisture, and weathering, extending equipment lifespan and maintaining structural integrity in coastal and high-humidity environments.
- Multi-Configuration Flexibility: Twenty-one factory-available hose diameter and length combinations allow precise matching to field geometry, water supply capacity, and raingun specifications without custom engineering, enabling growers to standardise on one reliable platform across diverse irrigation requirements.
- Low-Maintenance Operation: Water-powered drive system eliminates spark plugs, carburettors, oil changes, air filters, and fuel system maintenance required by engine-driven reels, reducing annual servicing costs and minimising downtime during critical irrigation windows when every operational hour counts.
- Quiet Field Operation: Turbine drive produces minimal operational noise compared to petrol or diesel engines, reducing operator fatigue during setup and monitoring, eliminating noise complaints near residential areas, and allowing irrigation scheduling flexibility without disturbing livestock or neighbouring properties.
- Proven Italian Engineering: Manufactured by Irrimec in Italy with precision components and rigorous quality control, the MASTER MF1/3 embodies decades of European irrigation innovation and delivers the reliability, durability, and performance consistency expected from world-class agricultural machinery.
Technical Specifications
| Specification |
Details |
| Manufacturer |
Irrimec |
| Model |
MASTER MF1/3 |
| Product Type |
Turbine Drive Hard Hose Irrigator |
| Drive System |
Water-Powered Turbine (Energy Independent) |
| Turbine Configuration |
TG Series Turbine Gearbox |
| Transmission Type |
Heavy-Duty Chain Drive with Precision Sprockets |
| Hose Diameter Range |
90-140 mm (3.54-5.51 in) |
| Hose Length Range |
250-520 m (820-1,706 ft) |
| Maximum Hose Capacity |
520 m of Ø 90 mm hose (1,706 ft of 3.54 in) |
| Speed Control Method |
Integrated Bypass Valve with Manual Adjustment |
| Hose Guide System |
Automated Traversing Guide Mechanism |
| Raingun Compatibility |
Compatible with All Standard Agricultural Rainguns |
| Chassis Treatment |
Hot-Dip Galvanised Steel Frame |
| Cart Configuration |
Heavy-Duty Wheeled Platform for Field Transport |
| Country of Manufacture |
Italy |
Available Hose Configurations
| Model Designation |
Hose Diameter |
Hose Length |
Configuration Notes |
| 90 TG |
Ø 90 mm (3.54 in) |
450 m (1,476 ft) |
High-capacity configuration for extended reach applications |
| 90 TG |
Ø 90 mm (3.54 in) |
460 m (1,509 ft) |
Optimised for maximum coverage with 90 mm hose systems |
| 90 TG |
Ø 90 mm (3.54 in) |
520 m (1,706 ft) |
Maximum length configuration for large field irrigation |
| 100 TG |
Ø 100 mm (3.94 in) |
420 m (1,378 ft) |
Balanced capacity for medium-flow applications |
| 100 TG |
Ø 100 mm (3.94 in) |
450 m (1,476 ft) |
Versatile configuration for diverse crop requirements |
| 100 TG |
Ø 100 mm (3.94 in) |
480 m (1,575 ft) |
Extended reach with increased flow capacity |
| 100 TG |
Ø 100 mm (3.94 in) |
500 m (1,640 ft) |
High-performance configuration for large-scale operations |
| 110 TG |
Ø 110 mm (4.33 in) |
370 m (1,214 ft) |
High-flow configuration for intensive irrigation |
| 110 TG |
Ø 110 mm (4.33 in) |
400 m (1,312 ft) |
Balanced flow and reach for medium to large fields |
| 110 TG |
Ø 110 mm (4.33 in) |
420 m (1,378 ft) |
Optimised for high-capacity raingun systems |
| 110 TG |
Ø 110 mm (4.33 in) |
450 m (1,476 ft) |
Maximum reach with 110 mm hose diameter |
| 120 TG |
Ø 120 mm (4.72 in) |
350 m (1,148 ft) |
Heavy-duty configuration for maximum flow rates |
| 120 TG |
Ø 120 mm (4.72 in) |
380 m (1,247 ft) |
High-volume irrigation for intensive cropping systems |
| 120 TG |
Ø 120 mm (4.72 in) |
400 m (1,312 ft) |
Extended capacity for large raingun applications |
| 125 TG |
Ø 125 mm (4.92 in) |
350 m (1,148 ft) |
Premium flow capacity for demanding applications |
| 125 TG |
Ø 125 mm (4.92 in) |
370 m (1,214 ft) |
High-performance configuration for intensive irrigation |
| 125 TG |
Ø 125 mm (4.92 in) |
400 m (1,312 ft) |
Maximum capacity with 125 mm hose systems |
| 135 TG |
Ø 135 mm (5.31 in) |
250 m (820 ft) |
Maximum flow rate for high-volume applications |
| 135 TG |
Ø 135 mm (5.31 in) |
320 m (1,050 ft) |
Heavy-duty configuration for large-scale irrigation |
| 135 TG |
Ø 135 mm (5.31 in) |
350 m (1,148 ft) |
Extended reach with maximum flow capacity |
| 140 TG |
Ø 140 mm (5.51 in) |
260 m (853 ft) |
Maximum diameter configuration for extreme flow requirements |
Turbine Drive System & Operation
The MASTER MF1/3 employs a sophisticated water-powered turbine drive system in which pressurised irrigation water flowing through the mainline drives a precision-engineered turbine assembly flanged directly to the TG series gearbox. As water passes through the turbine chamber en route to the raingun, the turbine rotor converts hydraulic energy into rotational force, which the gearbox steps down to optimal retrieval speed before transferring power through the heavy-duty chain drive to the hose reel drum. The retrieval speed remains proportional to water flow rate, ensuring consistent application rates as the raingun travels across the field. An integrated bypass valve allows operators to divert a portion of the flow around the turbine, providing precise manual control over rewinding speed without affecting mainline pressure or raingun performance — essential for matching retrieval rate to soil infiltration capacity, crop sensitivity, and terrain variations.
The operational advantages of this water-powered turbine drive system are transformative for modern irrigation operations. By eliminating dependence on fuel supplies, the MASTER MF1/3 achieves complete energy independence — no petrol or diesel procurement, no fuel storage or spillage risks, and zero fuel costs across the irrigator's decades-long service life. The turbine operates virtually silently compared to engine-driven alternatives, reducing operator fatigue and enabling flexible irrigation scheduling without noise concerns near residential areas or sensitive livestock operations. Maintenance requirements drop dramatically without spark plugs, carburettors, oil changes, air filters, or fuel system components to service, allowing operators to focus on agronomic management rather than mechanical troubleshooting. Performance remains inherently tied to water pressure, delivering consistent, reliable operation season after season without the variability introduced by engine wear, fuel quality fluctuations, or ignition system degradation. For growers operating in remote fields beyond electrical infrastructure or seeking to minimise operational complexity and long-term costs, the MASTER MF1/3 turbine drive system represents the pinnacle of irrigation automation simplicity and dependability.
Ideal Applications
- Remote Field Irrigation: Water-powered operation eliminates the need for electricity supply or fuel transport to distant paddocks, making the MASTER MF1/3 ideal for back-country fields, leased ground, and operations where infrastructure access is limited or non-existent.
- Pasture and Forage Production: Cost-efficient long irrigation runs with fuel-free operation deliver economical water application across extensive grazing paddocks, hay fields, and silage production areas where irrigation frequency and total seasonal hours demand minimal operating costs.
- Row Crop and Field Crop Irrigation: Consistent retrieval speed and uniform water application suit maize, soybeans, cotton, cereals, and other broadacre crops requiring precise moisture management across variable field topography and soil types without the performance variability of engine-driven systems.
SPECIFICS: Turbine driven, model 10/50-25/120. Model with hot galvanised ground support platform, giving 360° turntable rotation. Structure shot-blasted treated with 2 applications of powder coating epoxy anti-corrosive primer and a top coa tof polyesthere paint with high shock resistence, high atmospheric resistance and long lasting.
