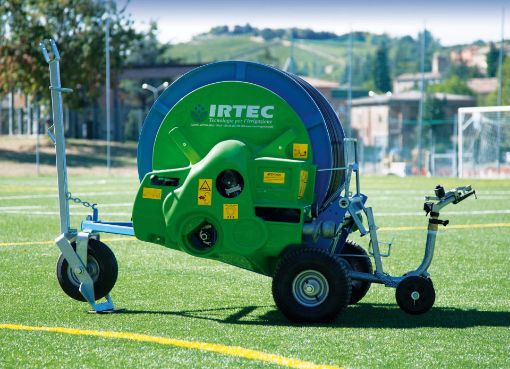

Irtec FBT Turbine Drive Hard Hose Irrigator

Overview

Irtec is a leading manufacturer of high-quality irrigation equipment, and their Hose Reels are designed to provide efficient and reliable solutions for various irrigation needs. The Irtec Hose Reels are engineered to deliver seamless water distribution, making them an ideal choice for both small-scale and large-scale agricultural applications.

The FBT Turbine Drive Hard Hose Irrigator represents the professional solution for convenient irrigation of even the smallest spaces. Manufactured in Italy with precision engineering, this model combines Irtec's renowned build quality with innovative turbine-driven technology. The FBT features a flanged turbine on the gearbox with external by-pass, ensuring smooth and controlled hose retraction. Its galvanised raingun trolley and polyethylene hose made from unadulterated raw material demonstrate Irtec's commitment to durability and performance. With epoxy resin coating and polyurethane paint finish, this irrigator is built to withstand demanding agricultural environments whilst maintaining consistent operation season after season.

Key Features & Benefits

Turbine Drive System: Flanged turbine mounted directly on the gearbox with external by-pass provides reliable, water-powered operation without requiring external power sources.
Professional-Grade Gearbox: Robust gearbox ensures consistent torque delivery and smooth hose winding throughout the irrigation cycle.
Advanced Hose-Guide System: Integrated guidance mechanism ensures even hose winding and prevents tangling or overlapping, extending hose life.
Galvanised Raingun Trolley: Corrosion-resistant galvanised construction provides long-lasting protection and stable platform for the raingun during operation.
Complete Nozzle Set Included: Comes standard with K1-23-000 raingun nozzles ranging from Ø 8 to Ø 10, allowing immediate adjustment for varying flow and pressure conditions.
Integrated Pressure Monitoring: Built-in pressure gauge enables real-time monitoring of system pressure for optimal irrigation management.
Power Take-Off for Fast Retraction: Optional fast retraction capability allows quick recovery of hose when needed, improving operational efficiency.
Flexible Connection System: Includes flexible connection pipe for easy attachment to water source whilst accommodating machine movement.
Comprehensive Safety Guards: Equipped with safety guards protecting moving components and ensuring operator safety during operation.
Superior Wheel Configuration: Features 1 front wheel mod. 13.5.00 x 6" and 2 rear wheels mod. 15.6.00 x 6" 4F for excellent stability and manoeuvrability across varied terrain.
Premium Coating System: Machine coated with epoxy resin and finished with polyurethane paints provides exceptional corrosion resistance and weather protection.
High-Quality Polyethylene Hose: Hose manufactured from unadulterated raw material ensures consistent performance, UV resistance, and long service life.
Compact Design Philosophy: Engineered specifically for efficient irrigation of smaller spaces whilst maintaining professional-grade performance.

Technical Specifications

Manufacturer	Model	Product Type	Drive System	Gearbox	Hose Diameter Range	Hose Length Range	Raingun Model	Front Wheel	Rear Wheels	Chassis Treatment	Country of Manufacture
Irtec	FBT	Turbine Drive Hard Hose Irrigator	Turbine flanged on gearbox with external by-pass	Professional-grade gearbox	40-43 mm (1.57-1.69")	120-130 m (394-427 ft)	K1-23-000	1 x mod. 13.5.00 x 6"	2 x mod. 15.6.00 x 6" 4F	Epoxy resin coating with polyurethane paint	Italy

Available Hose Configurations

Hose Diameter	Hose Length	Raingun	Nozzle Range (mm)	End Hose	Performance Chart
40 mm (1.57")	130 m (427 ft)	K1-23-000	9/10/12	1	40FBT130.pdf
43 mm (1.69")	120 m (394 ft)	K1-23-000	9/10/12	1	43FBT120.pdf

Machine Dimensions

FBT Dimensions Diagram

Diagram shows dimension reference points (1, 2, 3, 4) on the machine corresponding to key measurements.

Dimension Reference	Metric (cm)	Imperial (in)
1	195 cm	76.8 in
2	150 cm	59.1 in
3	128 cm	50.4 in
4	126 cm	49.6 in

Ideal Applications

Small to Medium Field Irrigation: Specifically designed for efficient irrigation of smaller agricultural plots where larger machines would be impractical or excessive.
Specialty Crop Production: Perfect for irrigating high-value specialty crops requiring precise water application in confined spaces.
Orchard and Vineyard Management: Well-suited for navigating between tree rows and vine trellises whilst providing thorough irrigation coverage.
Market Gardens and Intensive Horticulture: Ideal for commercial vegetable production operations requiring professional equipment in compact formats.
Nursery Operations: Excellent choice for plant nurseries needing reliable irrigation equipment that can manoeuvre in restricted areas.
Pasture and Forage Management: Effective for irrigating smaller pasture plots and forage production areas for livestock operations.
Sports Turf Maintenance: Suitable for maintaining sports fields, golf courses, and recreational turf areas requiring professional irrigation.
Municipal and Landscape Projects: Valuable for parks, green spaces, and landscaping projects where space constraints demand compact equipment.

Standard Equipment

Turbine flanged on the gearbox with external by-pass	Gearbox
Hose-guide system	Galvanized raingun trolley . Raingun
Set of nozzles K1-23-000 raingun from Ø 8 to Ø 10	Pressure gauge
Power-take-off for fast retraction	Flexible connection pipe
Safety guards	1 front wheel mod. 13.5.00 x 6" - 2 rear wheels mod. 15.6.00 x 6" 4F
Machine coated by epoxy resin and painted with polyurethane paints	Polyethylene hose made by unadulterated raw material

Your name *

Your email *

Subject: *

Enquiry *

Irrigation Unit Conversions

Convert a given value and unit to different unit type. Conversions are available for flow rate, area, distance, time, volume, pressure, power, precipitation, salinity, and speed.

Click here to see unit descriptions.

Flow Rate:
		to

Area:
		to

Distance:
		to

Time:
		to

Volume:
		to

Pressure:
		to

Power:
		to

Precipitation (Water Application) Rate:
		to

Salinity:
		to

Speed:
		to

Reference: Washington State University

Feature Title	Feature	Benefit
Turbine Drive System	Features a turbine drive mechanism flanged directly on the gearbox with external by-pass for consistent hose retrieval.	Provides reliable, water-powered operation without requiring external power sources, reducing operational costs and ensuring consistent performance in remote locations.
Integrated Gearbox	Built with a robust gearbox system designed for heavy-duty agricultural irrigation applications.	Ensures smooth and controlled hose winding with minimal maintenance requirements, extending equipment lifespan and reducing downtime.
Hose-Guide System	Incorporates an engineered hose-guide system that directs the hose evenly onto the reel during retrieval.	Prevents hose tangling and uneven winding, reducing wear and tear whilst ensuring consistent hose storage for prolonged equipment life.
Galvanised Raingun Trolley	Equipped with a galvanised raingun trolley that resists corrosion in wet agricultural environments.	Delivers long-lasting durability in harsh outdoor conditions, minimising rust and maintenance whilst ensuring reliable irrigation coverage year after year.
Versatile Nozzle Set	Includes a complete set of K1-23-000 raingun nozzles ranging from Ø 8mm to Ø 10mm for varied application rates.	Allows customisation of water distribution to match specific crop requirements and field conditions, optimising irrigation efficiency and crop yield.
Fast Retraction Power Take-Off	Features a dedicated power take-off mechanism enabling rapid hose retraction when needed.	Significantly reduces retrieval time during field operations, improving productivity and allowing faster field transitions between irrigation cycles.
Integrated Pressure Gauge	Comes standard with a pressure gauge for real-time monitoring of system operating pressure.	Enables operators to maintain optimal irrigation pressure, preventing equipment damage and ensuring consistent water application across the field.
Safety Guard Protection	Fitted with comprehensive safety guards protecting moving parts and operator interaction points.	Enhances operator safety during operation and maintenance, reducing injury risk and ensuring compliance with agricultural safety standards.
Heavy-Duty Wheel Configuration	Mounted on robust wheels including 1 front wheel (13.5.00 x 6") and 2 rear wheels (15.6.00 x 6" 4F) for stable field mobility.	Provides excellent stability and manoeuvrability across varied terrain conditions, reducing soil compaction whilst enabling easy repositioning in the field.
Advanced Corrosion Protection	Machine frame treated with epoxy resin coating and finished with polyurethane paint for superior corrosion resistance.	Withstands continuous exposure to water, chemicals, and UV radiation, maintaining structural integrity and appearance throughout years of intensive agricultural use.
Premium Polyethylene Hose	Supplied with polyethylene hose manufactured from 100% unadulterated raw material for consistent quality.	Ensures reliable, kink-free operation with excellent UV and chemical resistance, reducing replacement frequency and lowering long-term operational costs.
Flexible Connection Pipe	Includes a flexible connection pipe that accommodates movement and pressure variations during operation.	Reduces stress on connections and prevents leaks, ensuring continuous irrigation flow whilst minimising maintenance and extending system lifespan.


Feature Title

Feature

Benefit

Turbine Drive System

Features a turbine drive mechanism flanged directly on the gearbox with external by-pass for consistent hose retrieval.

Provides reliable, water-powered operation without requiring external power sources, reducing operational costs and ensuring consistent performance in remote locations.

Integrated Gearbox

Built with a robust gearbox system designed for heavy-duty agricultural irrigation applications.

Ensures smooth and controlled hose winding with minimal maintenance requirements, extending equipment lifespan and reducing downtime.

Hose-Guide System

Incorporates an engineered hose-guide system that directs the hose evenly onto the reel during retrieval.

Prevents hose tangling and uneven winding, reducing wear and tear whilst ensuring consistent hose storage for prolonged equipment life.

Galvanised Raingun Trolley

Equipped with a galvanised raingun trolley that resists corrosion in wet agricultural environments.

Delivers long-lasting durability in harsh outdoor conditions, minimising rust and maintenance whilst ensuring reliable irrigation coverage year after year.

Versatile Nozzle Set

Includes a complete set of K1-23-000 raingun nozzles ranging from Ø 8mm to Ø 10mm for varied application rates.

Allows customisation of water distribution to match specific crop requirements and field conditions, optimising irrigation efficiency and crop yield.

Fast Retraction Power Take-Off

Features a dedicated power take-off mechanism enabling rapid hose retraction when needed.

Significantly reduces retrieval time during field operations, improving productivity and allowing faster field transitions between irrigation cycles.

Integrated Pressure Gauge

Comes standard with a pressure gauge for real-time monitoring of system operating pressure.

Enables operators to maintain optimal irrigation pressure, preventing equipment damage and ensuring consistent water application across the field.

Safety Guard Protection

Fitted with comprehensive safety guards protecting moving parts and operator interaction points.

Enhances operator safety during operation and maintenance, reducing injury risk and ensuring compliance with agricultural safety standards.

Heavy-Duty Wheel Configuration

Mounted on robust wheels including 1 front wheel (13.5.00 x 6") and 2 rear wheels (15.6.00 x 6" 4F) for stable field mobility.

Provides excellent stability and manoeuvrability across varied terrain conditions, reducing soil compaction whilst enabling easy repositioning in the field.

Advanced Corrosion Protection

Machine frame treated with epoxy resin coating and finished with polyurethane paint for superior corrosion resistance.

Withstands continuous exposure to water, chemicals, and UV radiation, maintaining structural integrity and appearance throughout years of intensive agricultural use.

Premium Polyethylene Hose

Supplied with polyethylene hose manufactured from 100% unadulterated raw material for consistent quality.

Ensures reliable, kink-free operation with excellent UV and chemical resistance, reducing replacement frequency and lowering long-term operational costs.

Flexible Connection Pipe

Includes a flexible connection pipe that accommodates movement and pressure variations during operation.

Reduces stress on connections and prevents leaks, ensuring continuous irrigation flow whilst minimising maintenance and extending system lifespan.
