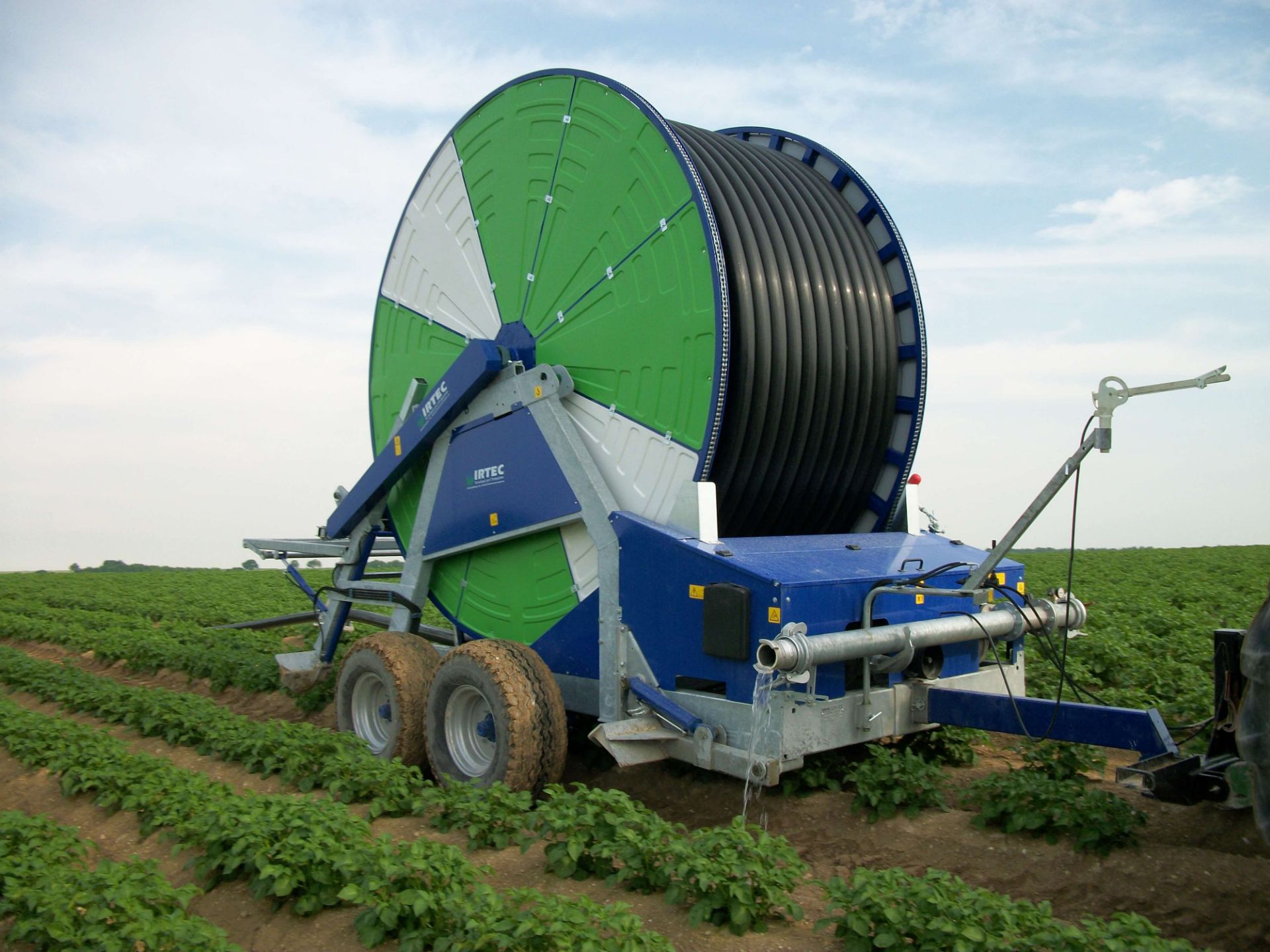

Irtec FL10 Hydraulic Drive Hard Hose Irrigator

Overview

Irtec is a leading manufacturer of high-quality irrigation equipment, and their Hose Reels are designed to provide efficient and reliable solutions for various irrigation needs. The Irtec Hose Reels are engineered to deliver seamless water distribution, making them an ideal choice for both small-scale and large-scale agricultural applications.

This specific model, the FL10, stands out due to its advanced technology and robust construction. Engineered for large-surface irrigation requirements, this hydraulic drive hard hose irrigator represents the pinnacle of Italian engineering where fluid dynamics expertise meets practical field operation. The fully hydraulic system controls trolley lifting, drawbar positioning, and turret rotation, ensuring smooth and efficient operation across extensive agricultural landscapes. Its comprehensive feature set and multiple configuration options make it exceptionally versatile for diverse large-scale irrigation projects.

Key Features & Benefits

Fully Hydraulic Operation: Complete hydraulic control system manages trolley lifting, drawbar lifting, and turret rotation for effortless operation and precise positioning.
Four-Wheel Chassis Design: Robust 4-wheel chassis configuration provides superior stability and weight distribution across various terrain conditions.
Advanced Gearbox System: Equipped with 4 synchronised speed gearbox and power take-off for optimal performance matching to tractor capabilities.
Integrated Turbine Technology: Turbine flanged directly on the gearbox with double built-in bypass ensures consistent water flow and pressure regulation.
Professional Rain Management: Easy Rain computer system with solar panel provides intelligent irrigation control and monitoring without external power requirements.
Explorer Raingun System: High-performance EXPLORER raingun with comprehensive nozzle set from Ø 28 to Ø 40 delivers precise water distribution patterns.
Galvanised Trolley with Variable Track: Raingun trolley mounted on variable track wheels allows precise hose laying on tractor wheel tracks with automatic stabiliser leg for secure positioning.
Telescopic Hydraulic Feet: Adjustable hydraulic stabilisation system ensures secure anchoring during operation across uneven ground conditions.
Double Chain Hose Retraction: Reliable dual-chain winding system provides consistent hose retrieval and extended service life.
Superior Corrosion Protection: Hot galvanised chassis with epoxy resin coating and polyurethane paint finish ensures long-lasting durability in harsh agricultural environments.
Premium Polyethylene Hose: Manufactured from unadulterated raw material for maximum flexibility, durability, and resistance to UV degradation.
Dual Water Inlet System: Galvanised double water inlet with Bauer 133 connection provides reliable water supply coupling.
Comprehensive Safety Features: Steel safety guards with swaged galvanisation and paint finish protect operators and critical components.
Quick Hydraulic Connections: Rapid coupling system to tractor hydraulics enables fast setup and efficient field transitions.
Hydraulic Lateral Reverse Pull: Enables precise positioning and directional control for complex field layouts and obstacles.

Technical Specifications

Manufacturer	Model	Product Type	Drive System	Gearbox	Turbine	Hose Diameter Range	Hose Length Range	Raingun	Nozzle Range	Tyres	Water Inlet	Control System	Chassis Treatment	Country of Manufacture
Irtec	FL10	Hydraulic Drive Hard Hose Irrigator	Fully Hydraulic	4 Synchronised Speed with PTO	Flanged with Double Built-in Bypass	125-140 mm (4.92-5.51 in)	550-820 m (1804-2690 ft)	EXPLORER	Ø 28 to Ø 40 mm	48A8 14PR 6F	Bauer 133	Easy Rain Computer with Solar Panel	Hot Galvanised, Epoxy Resin, Polyurethane Paint	Italy

Available Hose Configurations

Hose Diameter	Hose Length	Raingun	Nozzle Range	End Hose	Performance Data
125 mm (4.92 in)	750 m (2461 ft)	EXPLORER	28/30/32 mm	D	125FL10750.pdf
125 mm (4.92 in)	820 m (2690 ft)	EXPLORER	28/30/32 mm	A	125FL10820.pdf
135 mm (5.31 in)	600 m (1969 ft)	EXPLORER	34/36/38 mm	I	135FL10600.pdf
135 mm (5.31 in)	650 m (2133 ft)	EXPLORER	32/34/36 mm	E	135FL10650.pdf
135 mm (5.31 in)	700 m (2297 ft)	EXPLORER	32/34/36 mm	C	135FL10700.pdf
135 mm (5.31 in)	750 m (2461 ft)	EXPLORER	32/34/36 mm	A	135FL10750.pdf
140 mm (5.51 in)	550 m (1804 ft)	EXPLORER	34/36/38 mm	F	140FL10550.pdf
140 mm (5.51 in)	630 m (2067 ft)	EXPLORER	34/36/38 mm	E	140FL10630.pdf
140 mm (5.51 in)	700 m (2297 ft)	EXPLORER	34/36/38 mm	B	140FL10700.pdf
140 mm (5.51 in)	720 m (2362 ft)	EXPLORER	34/36/38 mm	A	140FL10720.pdf

Machine Dimensions

FL10 Dimensions

Diagram shows dimension reference points on the machine.

Dimension Label	Metric (cm)	Imperial (in)
1	513 cm	201.97 in
2	445 cm	175.20 in
4	396 cm	155.91 in
5	265 cm	104.33 in
7	363 cm	142.91 in
8	250 cm	98.43 in
9	260-275 cm (variable)	102.36-108.27 in

Ideal Applications

Large-Scale Row Crop Farming: Perfectly suited for extensive corn, soybean, wheat, and cotton operations requiring consistent coverage across significant acreage.
Forage and Pasture Management: Ideal for maintaining productive grazing lands and hay fields where large irrigation spans are necessary.
Vegetable Production: Excellent for commercial vegetable operations requiring flexible irrigation patterns and adjustable water application rates.
Orchard and Vineyard Irrigation: Adaptable configuration options accommodate permanent plantings with variable row spacing and coverage requirements.
Commercial Landscaping Projects: Suitable for golf courses, sports fields, and large institutional grounds requiring professional-grade irrigation equipment.
Contract Irrigation Services: Multiple hose configuration options make this ideal for contractors serving diverse client needs and field conditions.
Mixed Farming Operations: Versatile enough to handle multiple crop types and field layouts within a single farming enterprise.
Reclamation and Erosion Control: Reliable water distribution for establishing vegetation on disturbed lands and environmental restoration projects.

Standard Equipment

4 wheel chassis	Hydraulic lifting device of trolley
Telescopic hydraulic feet	Hydraulic lifting of drawbar
4 synchronised speed gearbox	Power take off
Turbine flanged on the gearbox with double built-in by-pass	Flexible connection pipe
Raingun	Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Galvanized raingun trolley mounted on variable track wheels for laying	down the hose on the tractor wheel track with automatic gun-cart stabilizer leg
Pressure gauge (glycerine bath)	Winding handle
Computer Easy Rain	Solar panel
Hose retraction by double chain	Hydraulic system by rapid couplings to tractor
Hydraulic lateral reverse pull	Safety guards
48A8 14PR 6F	Double stabilizer legs mounted on drawbar for secure anchoring during working phase
Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints	Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet	Water inlet with Bauer 133
Polyethylene hose made by unadulterated raw material

Your name *

Your email *

Subject: *

Enquiry *

Irrigation Unit Conversions

Convert a given value and unit to different unit type. Conversions are available for flow rate, area, distance, time, volume, pressure, power, precipitation, salinity, and speed.

Click here to see unit descriptions.

Flow Rate:
		to

Area:
		to

Distance:
		to

Time:
		to

Volume:
		to

Pressure:
		to

Power:
		to

Precipitation (Water Application) Rate:
		to

Salinity:
		to

Speed:
		to

Reference: Washington State University

Feature Title	Feature	Benefit
Double Chain Retraction System	Features a robust double chain hose retraction mechanism for reliable and consistent winding performance.	Ensures smooth and dependable hose retrieval even under heavy loads, minimising downtime and maintenance requirements.
Four-Speed Synchronised Gearbox	Equipped with a four-speed synchronised gearbox offering precise control over irrigation speed and coverage.	Allows customised watering rates to match specific crop requirements and field conditions, optimising water efficiency.
Hot Galvanised Epoxy Coating	Chassis and reel feature hot galvanisation with epoxy resin coating and polyurethane paint finish for superior corrosion protection.	Delivers exceptional durability and weather resistance, extending equipment lifespan even in harsh agricultural environments.
Telescopic Hydraulic Stabiliser Feet	Incorporates telescopic hydraulic feet and double stabiliser legs for secure anchoring during operation.	Provides exceptional stability on uneven terrain, preventing movement and ensuring consistent irrigation performance.
Easy Rain Computer System	Includes the Easy Rain computer with solar panel for automated irrigation control and monitoring.	Simplifies operation management and reduces labour costs whilst ensuring precise irrigation scheduling without external power requirements.
Variable Track Raingun Trolley	Galvanised raingun trolley mounted on variable track wheels with automatic stabiliser leg for precise hose laying.	Enables accurate hose placement along tractor wheel tracks, preventing crop damage and ensuring uniform water distribution.
Hydraulic Lifting System	Features complete hydraulic operation including trolley lifting, drawbar adjustment, and lateral reverse pull controlled via rapid couplings.	Eliminates manual handling requirements, improving operator safety and reducing physical strain during setup and transport.
Virgin Polyethylene Hose	Supplied with polyethylene hose manufactured from unadulterated raw material for maximum strength and flexibility.	Ensures reliable long-term performance with resistance to UV degradation, chemicals, and abrasion throughout demanding irrigation cycles.
EXPLORER Raingun Nozzle Set	Comes complete with EXPLORER raingun and comprehensive nozzle set ranging from Ø28 to Ø40mm for versatile coverage options.	Provides flexibility to adjust water application rates and coverage patterns to suit different crops, soils, and field sizes.
Glycerine Bath Pressure Gauge	Fitted with glycerine-filled pressure gauge for accurate and vibration-dampened pressure monitoring.	Delivers reliable pressure readings in all conditions, enabling precise system adjustments and early detection of potential issues.
Double Turbine Bypass System	Turbine flanged directly to gearbox with integrated double built-in bypass for consistent power delivery.	Ensures smooth and reliable operation whilst protecting the system from pressure surges and hydraulic overload conditions.
Galvanised Safety Guards	All safety guards constructed from swaged galvanised steel with protective paint coating for enhanced durability.	Protects operators from moving parts whilst maintaining structural integrity and corrosion resistance throughout the equipment's service life.


Feature Title

Feature

Benefit

Double Chain Retraction System

Features a robust double chain hose retraction mechanism for reliable and consistent winding performance.

Ensures smooth and dependable hose retrieval even under heavy loads, minimising downtime and maintenance requirements.

Four-Speed Synchronised Gearbox

Equipped with a four-speed synchronised gearbox offering precise control over irrigation speed and coverage.

Allows customised watering rates to match specific crop requirements and field conditions, optimising water efficiency.

Hot Galvanised Epoxy Coating

Chassis and reel feature hot galvanisation with epoxy resin coating and polyurethane paint finish for superior corrosion protection.

Delivers exceptional durability and weather resistance, extending equipment lifespan even in harsh agricultural environments.

Telescopic Hydraulic Stabiliser Feet

Incorporates telescopic hydraulic feet and double stabiliser legs for secure anchoring during operation.

Provides exceptional stability on uneven terrain, preventing movement and ensuring consistent irrigation performance.

Easy Rain Computer System

Includes the Easy Rain computer with solar panel for automated irrigation control and monitoring.

Simplifies operation management and reduces labour costs whilst ensuring precise irrigation scheduling without external power requirements.

Variable Track Raingun Trolley

Galvanised raingun trolley mounted on variable track wheels with automatic stabiliser leg for precise hose laying.

Enables accurate hose placement along tractor wheel tracks, preventing crop damage and ensuring uniform water distribution.

Hydraulic Lifting System

Features complete hydraulic operation including trolley lifting, drawbar adjustment, and lateral reverse pull controlled via rapid couplings.

Eliminates manual handling requirements, improving operator safety and reducing physical strain during setup and transport.

Virgin Polyethylene Hose

Supplied with polyethylene hose manufactured from unadulterated raw material for maximum strength and flexibility.

Ensures reliable long-term performance with resistance to UV degradation, chemicals, and abrasion throughout demanding irrigation cycles.

EXPLORER Raingun Nozzle Set

Comes complete with EXPLORER raingun and comprehensive nozzle set ranging from Ø28 to Ø40mm for versatile coverage options.

Provides flexibility to adjust water application rates and coverage patterns to suit different crops, soils, and field sizes.

Glycerine Bath Pressure Gauge

Fitted with glycerine-filled pressure gauge for accurate and vibration-dampened pressure monitoring.

Delivers reliable pressure readings in all conditions, enabling precise system adjustments and early detection of potential issues.

Double Turbine Bypass System

Turbine flanged directly to gearbox with integrated double built-in bypass for consistent power delivery.

Ensures smooth and reliable operation whilst protecting the system from pressure surges and hydraulic overload conditions.

Galvanised Safety Guards

All safety guards constructed from swaged galvanised steel with protective paint coating for enhanced durability.

Protects operators from moving parts whilst maintaining structural integrity and corrosion resistance throughout the equipment's service life.
