Telescopic hydraulic feet
Hydraulic lifting of drawbar
Turbine flanged on the gearbox with double built-in by-pass
Flexible connection pipe
Offset galvanized trolley mounted on 5 large solid wheels
4 wheel chassis
Hydraulic lifting device of trolley
Independent hydraulic lift with swivel to hook the gun trolley
Hydraulic rotation of turntable
4 synchronised speed gearbox
Power take off . Raingun
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Pressure gauge (glycerine bath)
Winding handle
Computer Easy Rain
Hose retraction by double chain
Hydraulic system by rapid couplings to tractor
Safety guards
4 wheels mod. 11.5/80-15.3 12PR 6F
Hot galvanized chassis and turret
Reel coated by epoxy resin and painted with polyurethane paint
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
For hose diam. 110-120-125 water inlet Bauer Ø 108
For hose diam. 135-140 water inlet Bauer Ø 133
Polyethylene hose made by unadulterated raw material

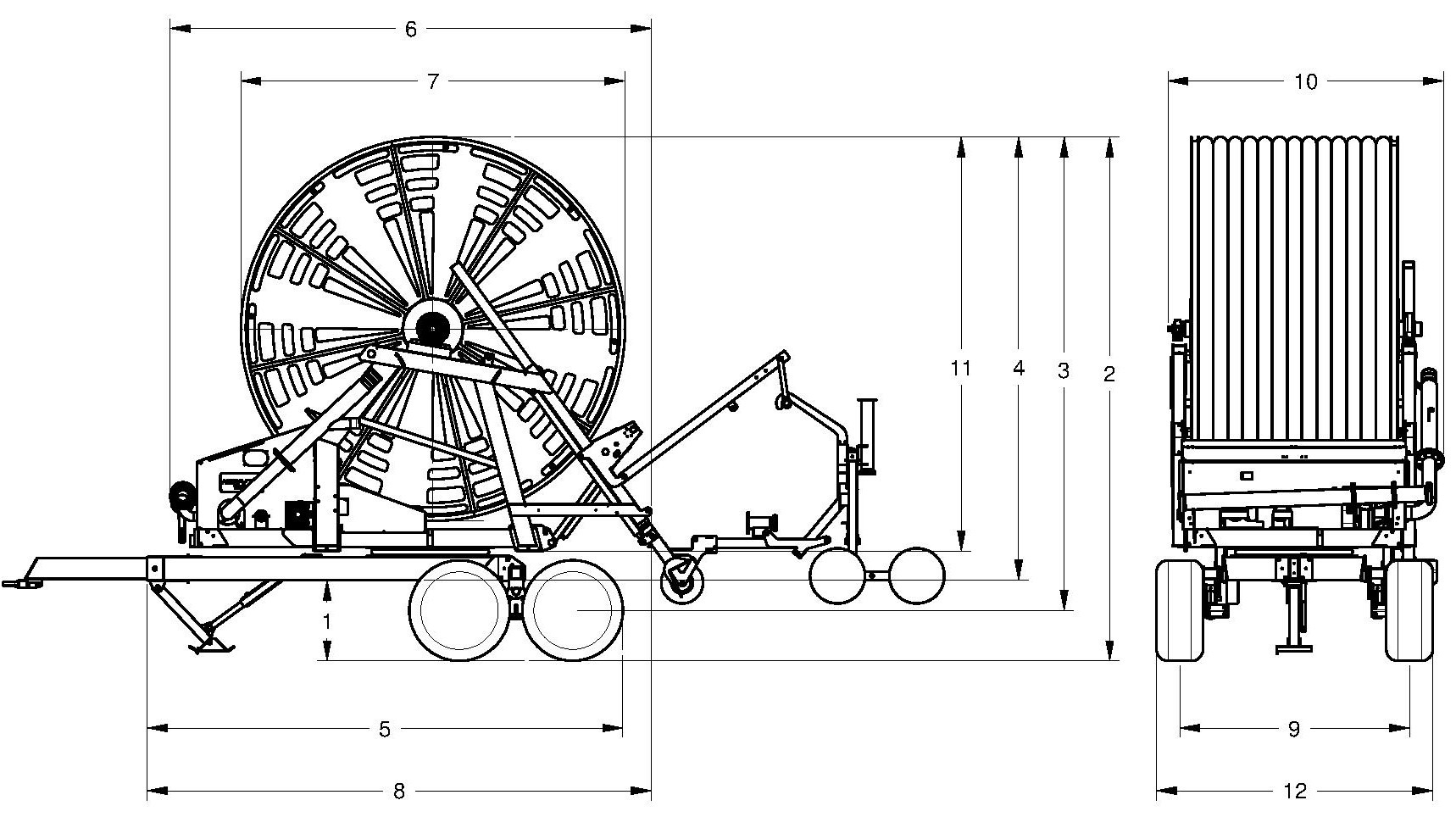

1 cm.	2 cm.	3 cm.	4 cm.	5 cm.	6 cm.	7 cm.	8 cm.	9 cm.	10 cm.	11 cm.	12 cm.
66	439	396	373	413	425	318	445	220 - 250	249	344	250 - 280

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
110	650	REFLEX	24/26/28	7	110G4650.pdf
110	670	REFLEX	24/26/28	7	110G4670.pdf
110	700	REFLEX	24/26/28	9	110G4700.pdf
110	730	REFLEX	24/26/28	10	110G4730.pdf
120	600	EXPLORER	28/30/32	8	120G4600.pdf
120	640	EXPLORER	26/28/30	10	120G4640.pdf
125	550	EXPLORER	32/34/36	7	125G4550.pdf
125	600	EXPLORER	28/30/32	9	125G4600.pdf
125	620	EXPLORER	28/30/32	10	125G4620.pdf
135	500	EXPLORER	32/34/36	2	135G4500.pdf
140	400	EXPLORER	34/36/38	5	140G4400.pdf
140	450	EXPLORER	34/36/38	3	140G4450.pdf
140	470	EXPLORER	34/36/38	2	140G4470.pdf
