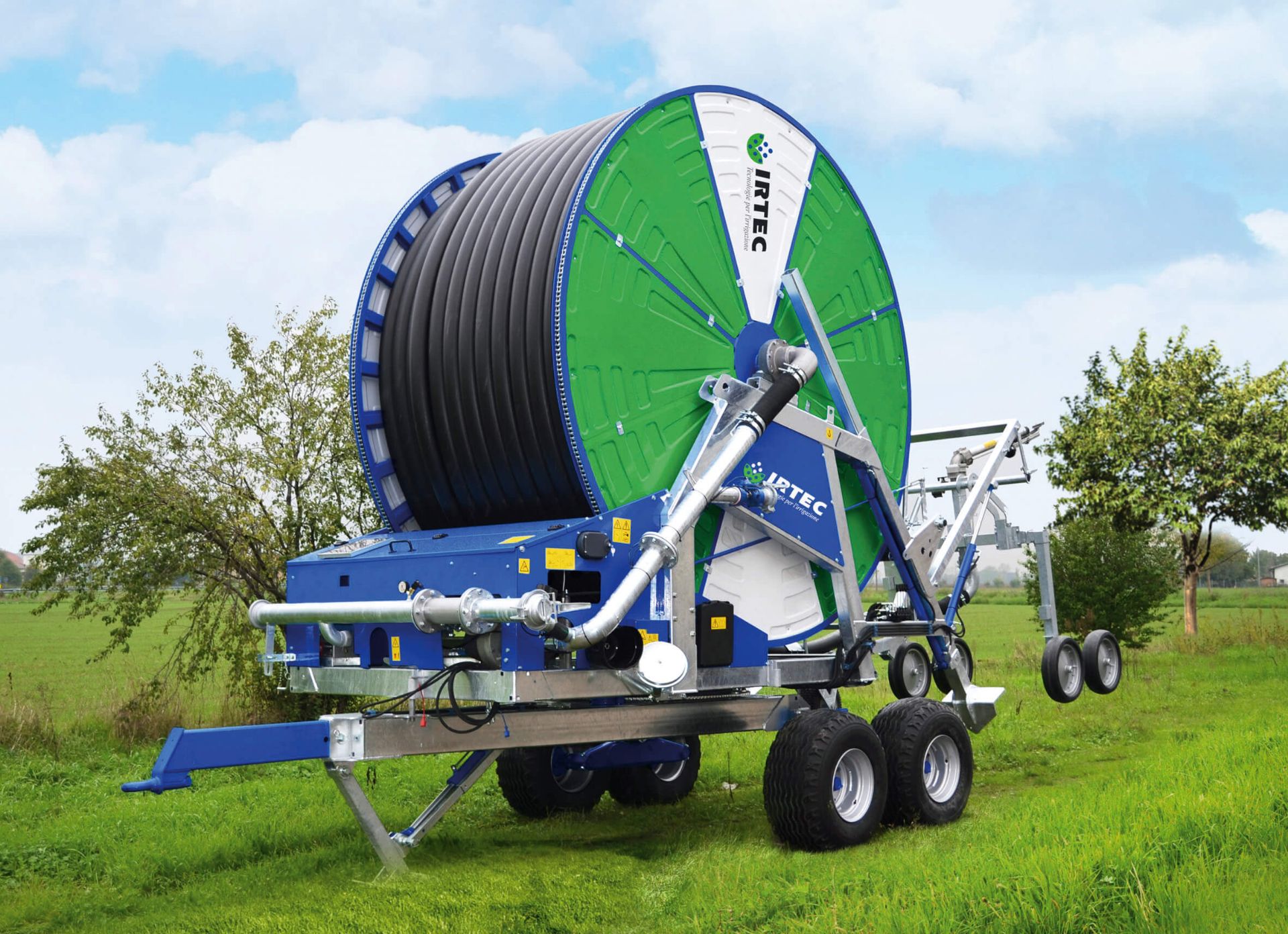

G4 Special

Telescopic hydraulic feet
Hydraulic lifting of drawbar
Turbine flanged on the gearbox with double built-in by-pass
Flexible connection pipe
Offset galvanized trolley mounted on 5 large solid wheels
4 wheel chassis
Hydraulic lifting device of trolley
Independent hydraulic lift with swivel to hook the gun trolley
Hydraulic rotation of turntable
4 synchronised speed gearbox
Power take off . Raingun
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Pressure gauge (glycerine bath)
Winding handle
Computer Easy Rain
Hose retraction by double chain
Hydraulic system by rapid couplings to tractor
Safety guards
4 wheels mod. 11.5/80-15.3 12PR 6F
Hot galvanized chassis and turret
Reel coated by epoxy resin and painted with polyurethane paint
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
For hose diam. 110-120-125 water inlet Bauer Ø 108
For hose diam. 135-140 water inlet Bauer Ø 133
Polyethylene hose made by unadulterated raw material

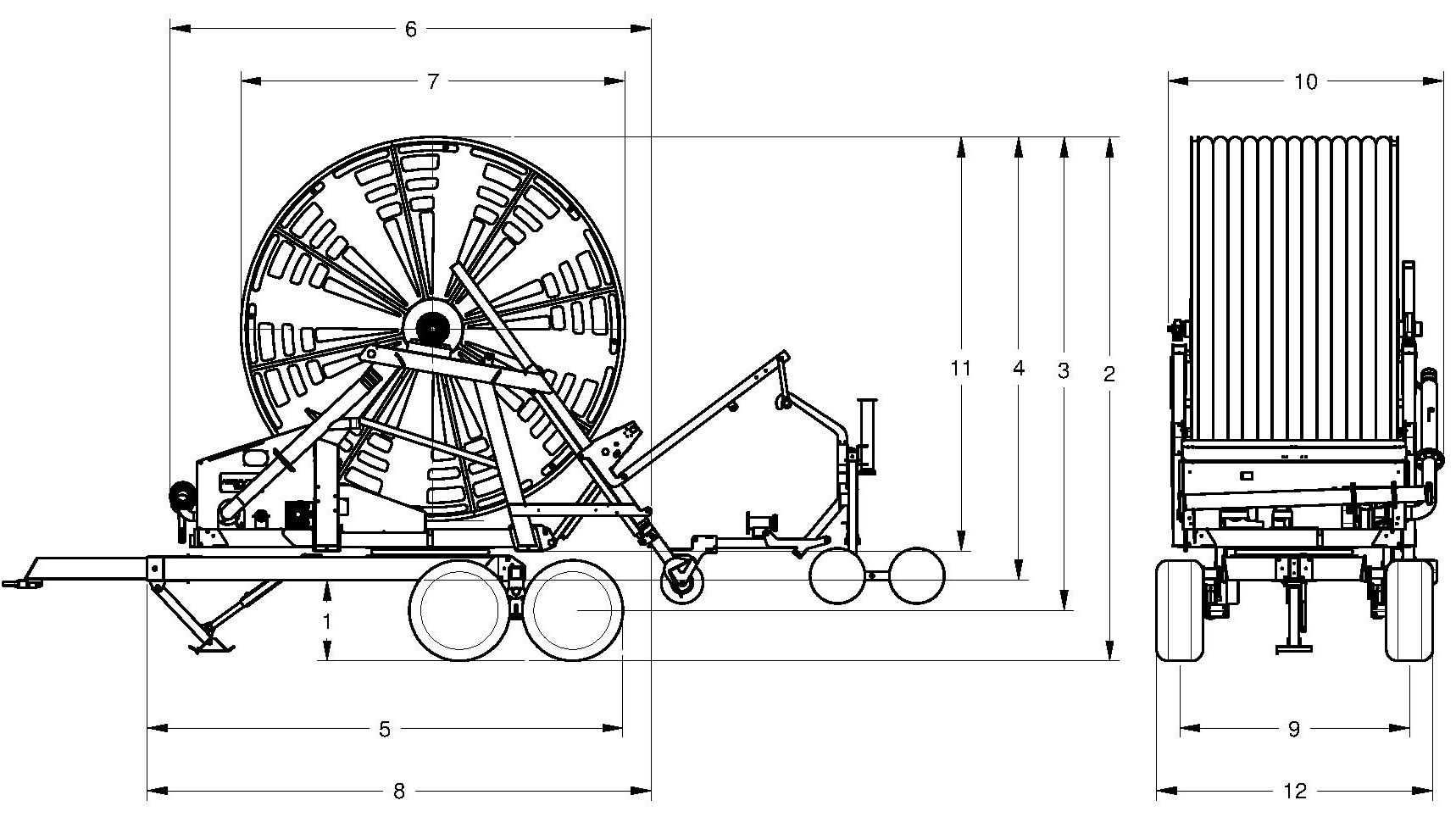

1 cm.	2 cm.	3 cm.	4 cm.	5 cm.	6 cm.	7 cm.	8 cm.	9 cm.	10 cm.	11 cm.	12 cm.
66	455	412	389	413	425	334	445	220 - 250	249	360	250 - 280

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
110	750	REFLEX	24/26/28	5	110G4SP750.pdf
110	790	REFLEX	24/26/28	5	110G4SP790.pdf
110	810	REFLEX	24/26/28	3	110G4SP810.pdf
110	850	REFLEX	24/26/28	2	110G4SP850.pdf
120	650	EXPLORER	26/28/30	9	120G4SP650.pdf
120	670	EXPLORER	26/28/30	9	120G4SP670.pdf
120	690	EXPLORER	26/28/30	5	120G4SP690.pdf
120	720	EXPLORER	26/28/30	3	120G4SP720.pdf
120	770	EXPLORER	26/28/30	1	120G4SP770.pdf
125	630	EXPLORER	28/30/32	5	125G4SP630.pdf
125	650	EXPLORER	28/30/32	9	125G4SP650.pdf
125	680	EXPLORER	28/30/32	3	125G4SP680.pdf
125	720	EXPLORER	28/30/32	1	125G4SP720.pdf
135	520	EXPLORER	32/34/36	1	135G4SP520.pdf
135	570	EXPLORER	32/34/36	8	135G4SP570.pdf
135	600	EXPLORER	32/34/36	10	135G4SP600.pdf
140	430	EXPLORER	34/36/38	5	140G4SP430.pdf
140	470	EXPLORER	34/36/38	3	140G4SP470.pdf
140	500	EXPLORER	34/36/38	2	140G4SP500.pdf
