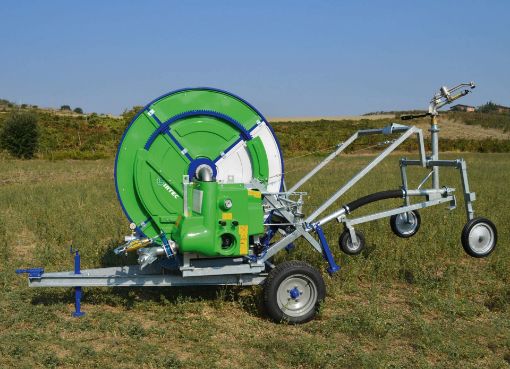

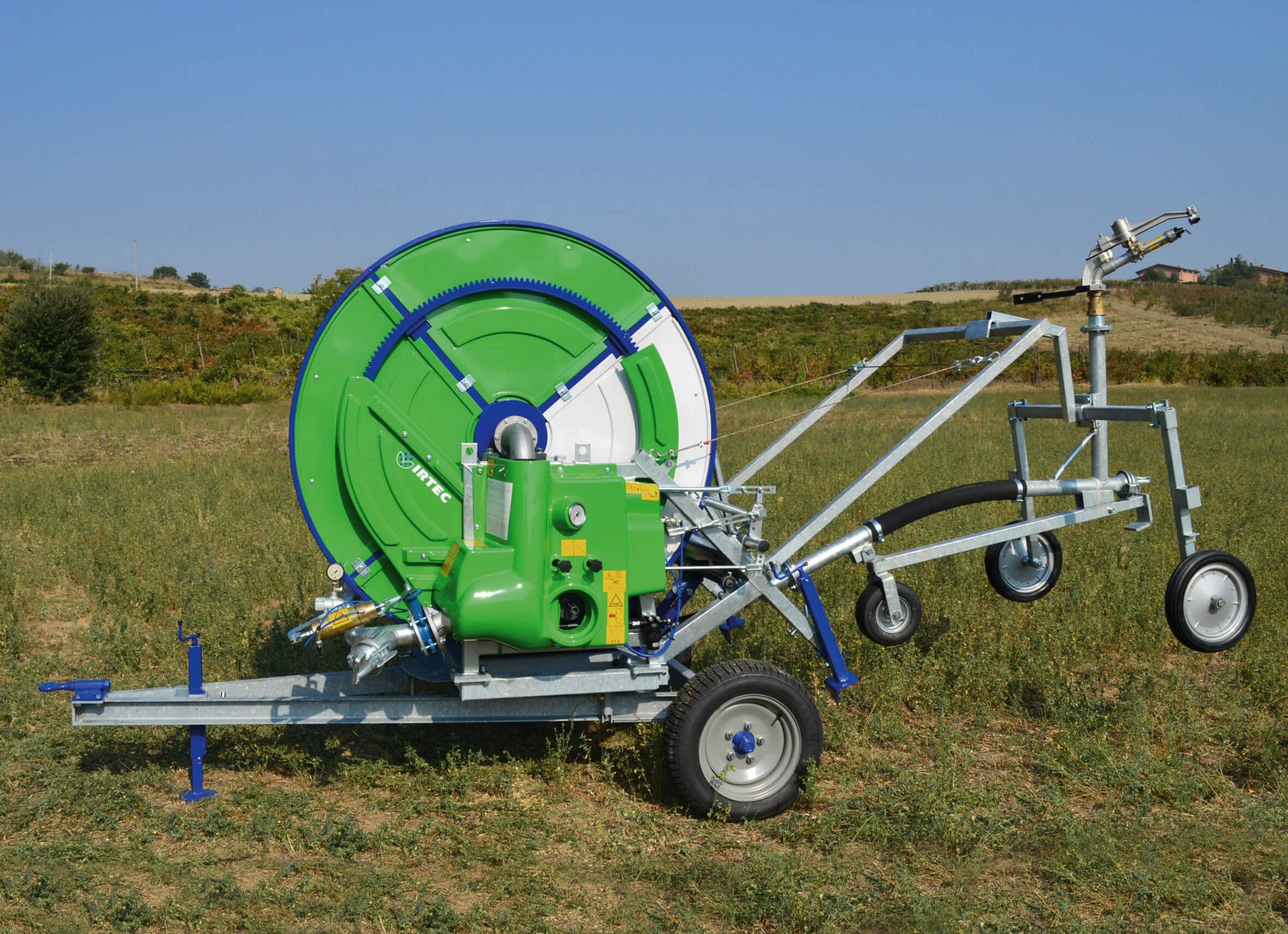

G/A2

Mechanical lifting device of trolley
Telescopic mechanical feet
3 Speed gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
TL4 raingun trolley with 3 large solid wheels
Raingun
Set of nozzles HYDRA raingun from Ø 12 to Ø 16
Set of nozzles ROYAL raingun from Ø 16 to Ø 22
Pressure gauge (glycerine bath)
Winding handle
Speed equalizer
Safety guards
2 wheels mod. 205/60 R15 5F
Hot galvanized chassis and turret
Reel coated by epoxy resin and painted with polyurethane paint
Galvanized double water inlet
Polyethylene hose made by unadulterated raw material

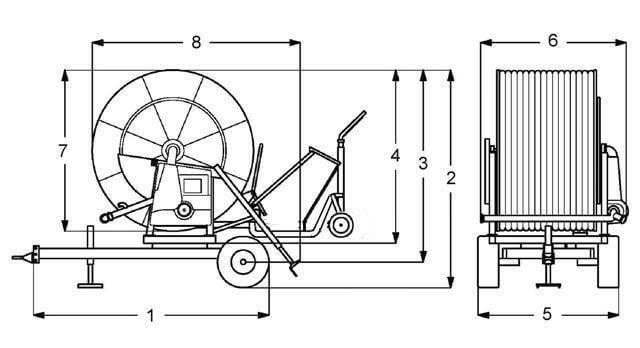

1 cm.	2 cm.	3 cm.	4 cm.	5 cm.	6 cm.	7 cm.	8 cm.
290	230	200	180	175	170	169	225

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
63	250	HYDRA	14/16/18	7	63G_A2250.pdf
63	280	HYDRA	14/16/18	9	63G_A2280.pdf
63	300	HYDRA	14/16/18	10	63G_A2300.pdf
70	220	ROYAL	16/18/20	6	70G_A2220.pdf
70	270	ROYAL	16/18/20	10	70G_A2270.pdf
75	220	ROYAL	16/18/20	7	75G_A2220.pdf
75	250	ROYAL	16/18/20	9	75G_A2250.pdf
82	180	ROYAL	18/20/22	1	82G_A2180.pdf
