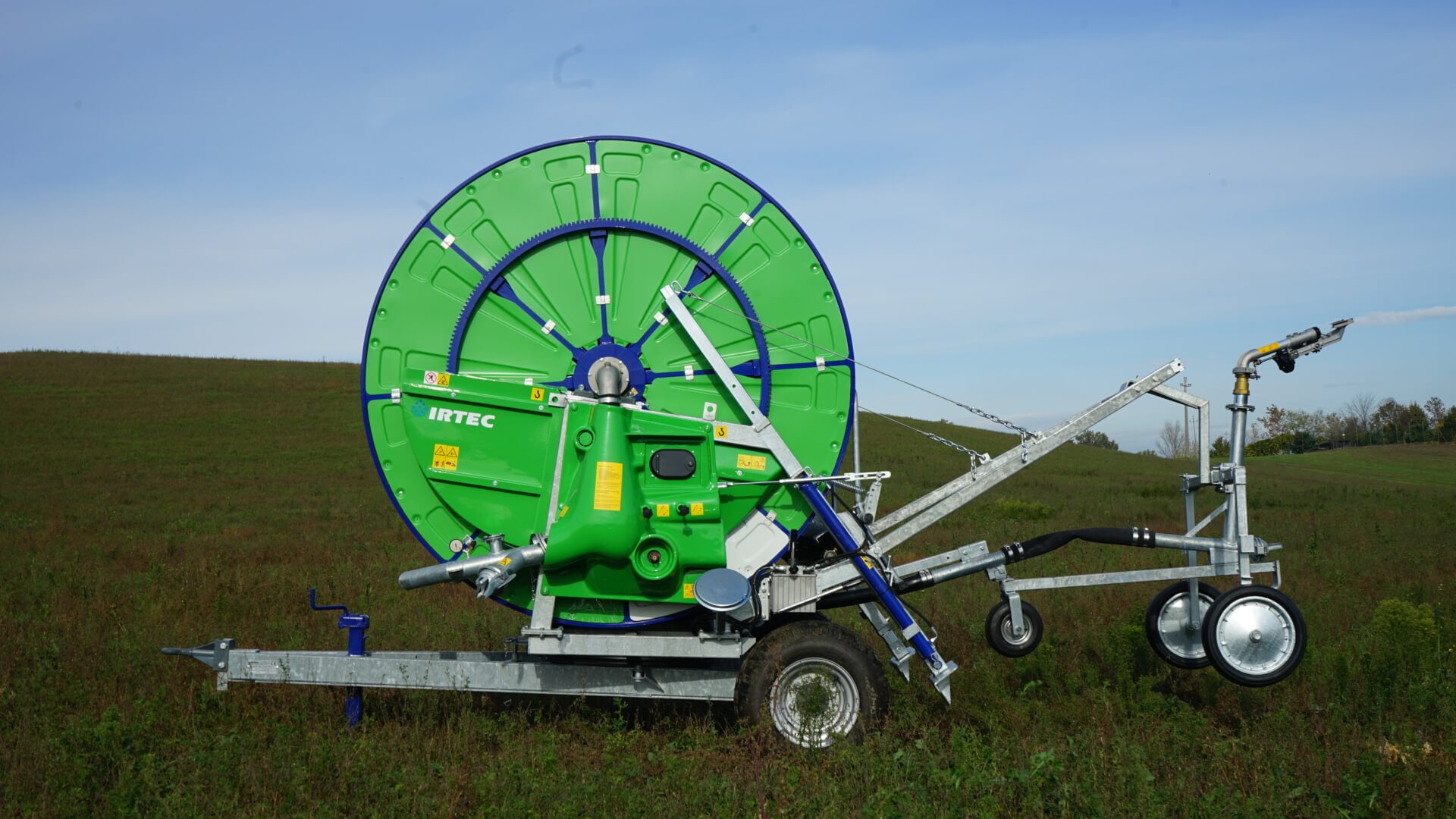

G/C5

Mechanical lifting device of trolley .
Telescopic mechanical feet .
6 Speed gearbox .
Power take off .
Turbine flanged on the gearbox with built-in by-pass .
Flexible connection pipe .
TL4 raingun trolley with 3 large solid wheels up to hose Ø 82 .
TL4 raingun trolley with 5 large solid wheels for hose Ø 90 .
TL3 raingun trolley with 5 large solid wheels for hose Ø 100 - 110 .
Raingun .
Set of nozzles ROYAL raingun from Ø 16 to Ø 22 .
Set of nozzles REFLEX raingun from Ø 24 to Ø 32 .
Pressure gauge (glycerine bath) .
Winding handle . Tachometer .
Safety guards .
2 wheels mod. 10.080.12 8PR 5F .
Hot galvanized chassis and turret .
Reel coated by epoxy resin and painted with polyurethane paint .
Safety guards made of steel, swaged galvanized and painted .
Galvanized double water inlet .
For hose diam. 75-82-90-100 water inlet Bauer Ø 89 .
For hose diam. 110 water inlet Bauer Ø 108 .
Polyethylene hose made by unadulterated raw material

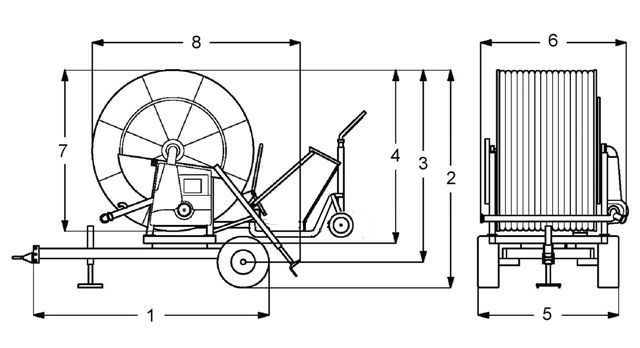

1 cm.	2 cm.	3 cm.	4 cm.	5 cm.	6 cm.	7 cm.	8 cm.
330	296	265	245	205	225	224	280

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
75	350	ROYAL	16/18/20	4	75G_C5350.pdf
75	400	ROYAL	16/18/20	4	75G_C5400.pdf
82	350	ROYAL	18/20/22	5	82G_C5350.pdf
82	400	ROYAL	18/20/22	3	82G_C5400.pdf
90	280	REFLEX	24/26/28	8	90G_C5280.pdf
90	300	REFLEX	24/26/28	9	90G_C5300.pdf
90	350	REFLEX	24/26/28	2	90G_C5350.pdf
100	275	REFLEX	26/28/30	9	100G_C5275.pdf
100	300	REFLEX	26/28/30	9	100G_C5300.pdf
110	200	REFLEX	28/30/32	3	110G_C5200.pdf
110	250	REFLEX	28/30/32	9	110G_C5250.pdf
