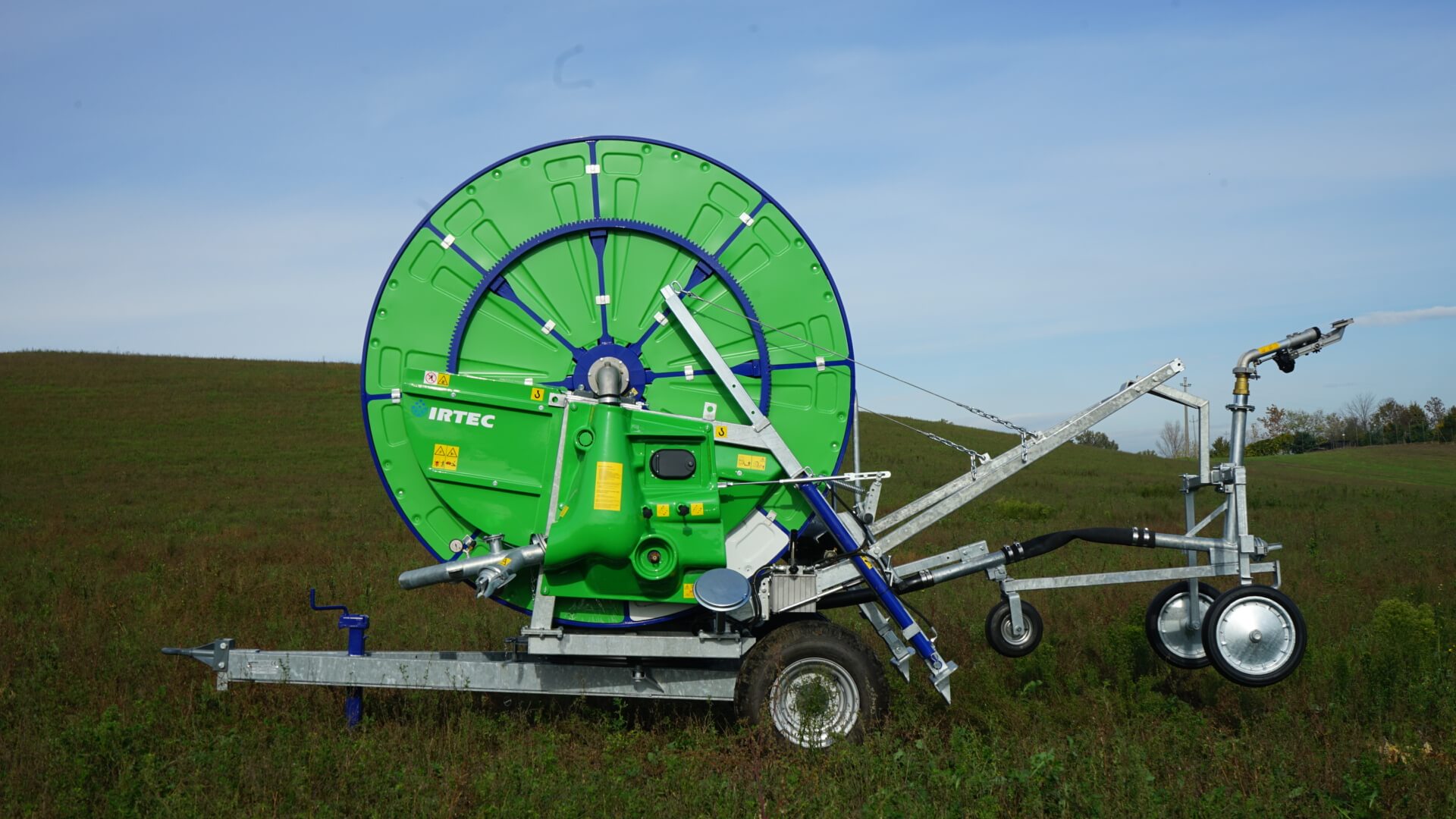

Irtec GC5 Turbine Drive Hard Hose Irrigator

Overview

Irtec is a leading manufacturer of high-quality irrigation equipment, and their Hose Reels are designed to provide efficient and reliable solutions for various irrigation needs. The Irtec Hose Reels are engineered to deliver seamless water distribution, making them an ideal choice for both small-scale and large-scale agricultural applications.

This specific model, the GC5, stands out due to its advanced technology and robust construction. The GC5 Turbine Drive Hard Hose Irrigator represents a choice with eyes closed for reliability and performance, offering a hard-to-beat mix of available models and basic equipment. Manufactured in Italy, this hose reel combines Irtec's renowned engineering excellence with practical features designed for demanding irrigation applications. Its turbine-driven system, comprehensive standard equipment package, and multiple configuration options make it a versatile solution for operations requiring dependable water distribution across extensive areas.

Key Features & Benefits

Turbine Drive System: Features a turbine flanged directly on the gearbox with built-in by-pass, ensuring consistent and efficient operation powered by water pressure.
Six-Speed Gearbox: Provides precise control over retrieval speed, allowing operators to adjust winding rates to match specific irrigation requirements and field conditions.
Mechanical Lifting Device: Includes a mechanical lifting system for the trolley, facilitating easy deployment and retrieval of the irrigation system.
Telescopic Mechanical Feet: Adjustable stabilising feet ensure secure positioning on uneven terrain and provide stable operation during use.
Advanced Raingun Trolley Options: Equipped with purpose-designed trolleys featuring large solid wheels—TL4 with 3 wheels for 75-82mm hoses, TL4 with 5 wheels for 90mm hoses, and TL3 with 5 wheels for 100-110mm hoses—ensuring smooth movement and reduced soil compaction.
Comprehensive Nozzle Sets: Includes complete nozzle sets for ROYAL rainguns (16-22mm diameter) and REFLEX rainguns (24-32mm diameter), providing versatility for different flow rates and coverage patterns.
Hot Galvanised Protection: Chassis and turret feature hot galvanisation, whilst the reel is coated with epoxy resin and finished with polyurethane paint, ensuring exceptional corrosion resistance and longevity.
Dual Water Inlet System: Galvanised double water inlet with Bauer Ø 89mm connections for 75-100mm hoses and Bauer Ø 108mm for 110mm hoses, providing reliable water supply connections.
Premium Polyethylene Hose: Manufactured from unadulterated raw material, ensuring durability and resistance to UV degradation and chemical exposure.
Precision Monitoring: Includes glycerine-bath pressure gauge and tachometer for accurate monitoring of operating parameters.
Robust Wheel Configuration: Equipped with 10.080.12 8PR 5F wheels, designed for easy transport across varied agricultural terrains.
Comprehensive Safety Features: Steel safety guards are swaged galvanised and painted, providing operator protection whilst maintaining durability.

Technical Specifications

Manufacturer	Model	Product Type	Drive System	Gearbox	Hose Diameter Range	Hose Length Range	Raingun Options	Wheels	Water Inlet Options	Chassis Treatment	Country of Manufacture
Irtec	GC5	Turbine Drive Hard Hose Irrigator	Turbine flanged on gearbox with built-in by-pass	6 Speed	75-110mm (2.95-4.33 in)	200-400m (656-1312 ft)	ROYAL & REFLEX	10.080.12 8PR 5F (2 wheels)	Bauer Ø 89mm / Ø 108mm	Hot galvanised chassis and turret; epoxy resin coated reel with polyurethane paint	Italy

Available Hose Configurations

Hose Diameter	Hose Length	Raingun	Nozzle Range	End Hose	Performance Chart
75mm (2.95 in)	350m (1148 ft)	ROYAL	16/18/20mm	4	View PDF
75mm (2.95 in)	400m (1312 ft)	ROYAL	16/18/20mm	4	View PDF
82mm (3.23 in)	350m (1148 ft)	ROYAL	18/20/22mm	5	View PDF
82mm (3.23 in)	400m (1312 ft)	ROYAL	18/20/22mm	3	View PDF
90mm (3.54 in)	280m (919 ft)	REFLEX	24/26/28mm	8	View PDF
90mm (3.54 in)	300m (984 ft)	REFLEX	24/26/28mm	9	View PDF
90mm (3.54 in)	350m (1148 ft)	REFLEX	24/26/28mm	2	View PDF
100mm (3.94 in)	275m (902 ft)	REFLEX	26/28/30mm	9	View PDF
100mm (3.94 in)	300m (984 ft)	REFLEX	26/28/30mm	9	View PDF
110mm (4.33 in)	200m (656 ft)	REFLEX	28/30/32mm	3	View PDF
110mm (4.33 in)	250m (820 ft)	REFLEX	28/30/32mm	9	View PDF

Machine Dimensions

GC5 Dimensions Diagram

Diagram shows dimension reference points (1-8) on the machine.

Dimension Reference	Metric (cm)	Imperial (in)
1	330 cm	129.9 in
2	296 cm	116.5 in
3	265 cm	104.3 in
4	245 cm	96.5 in
5	205 cm	80.7 in
6	225 cm	88.6 in
7	224 cm	88.2 in
8	280 cm	110.2 in

Ideal Applications

Large-Scale Field Crops: Perfectly suited for irrigating extensive fields of corn, wheat, cotton, soybeans, and other row crops requiring consistent water distribution over large areas.
Pasture and Forage Management: Ideal for maintaining productive grazing lands and hay fields, ensuring optimal grass growth and forage quality for livestock operations.
Vegetable Production: Provides efficient irrigation for commercial vegetable farms, supporting uniform crop development and maximising yields in processing and fresh market operations.
Orchard and Vineyard Establishment: Suitable for young tree and vine irrigation during establishment phases, delivering targeted water application to support healthy root development.
Dust Suppression: Effective for controlling dust on farm roads, construction sites, and mining operations where water distribution over long distances is required.
Sports Turf and Golf Courses: Applicable for maintaining large turf areas where mobile irrigation capability is needed to supplement permanent systems or during construction phases.
Land Reclamation Projects: Useful for revegetation and rehabilitation projects requiring temporary or mobile irrigation infrastructure over extensive areas.

Standard Equipment

Mechanical lifting device of trolley .	Telescopic mechanical feet .
6 Speed gearbox .	Power take off .
Turbine flanged on the gearbox with built-in by-pass .	Flexible connection pipe .
TL4 raingun trolley with 3 large solid wheels up to hose Ø 82 .	TL4 raingun trolley with 5 large solid wheels for hose Ø 90 .
TL3 raingun trolley with 5 large solid wheels for hose Ø 100 - 110 .	Raingun .
Set of nozzles ROYAL raingun from Ø 16 to Ø 22 .	Set of nozzles REFLEX raingun from Ø 24 to Ø 32 .
Pressure gauge (glycerine bath) .	Winding handle . Tachometer .
Safety guards .	2 wheels mod. 10.080.12 8PR 5F .
Hot galvanized chassis and turret .	Reel coated by epoxy resin and painted with polyurethane paint .
Safety guards made of steel, swaged galvanized and painted .	Galvanized double water inlet .
For hose diam. 75-82-90-100 water inlet Bauer Ø 89 .	For hose diam. 110 water inlet Bauer Ø 108 .
Polyethylene hose made by unadulterated raw material

Your name *

Your email *

Subject: *

Enquiry *

Irrigation Unit Conversions

Convert a given value and unit to different unit type. Conversions are available for flow rate, area, distance, time, volume, pressure, power, precipitation, salinity, and speed.

Click here to see unit descriptions.

Flow Rate:
		to

Area:
		to

Distance:
		to

Time:
		to

Volume:
		to

Pressure:
		to

Power:
		to

Precipitation (Water Application) Rate:
		to

Salinity:
		to

Speed:
		to

Reference: Washington State University

Feature Title	Feature	Benefit
6 Speed Gearbox	Features a 6-speed gearbox system that allows precise control of the hose retrieval speed.	Enables operators to adjust winding speed according to field conditions and crop sensitivity, preventing damage and optimising irrigation efficiency.
Turbine Drive System	Equipped with a water-powered turbine flanged directly on the gearbox with integrated by-pass functionality.	Provides reliable, fuel-free operation using water pressure alone, reducing operational costs and eliminating the need for external power sources.
Hot Galvanised Construction	Chassis and turret manufactured with hot galvanised steel for maximum corrosion protection.	Ensures exceptional durability and extends equipment lifespan even in harsh agricultural environments with constant water exposure.
Multi-Layer Protective Coating	Reel coated with epoxy resin base layer and finished with polyurethane paint for superior protection.	Provides outstanding resistance to UV rays, chemicals, and weathering, maintaining appearance and structural integrity over years of use.
Mechanical Trolley Lifting	Incorporates a mechanical lifting device for easy raising and lowering of the raingun trolley.	Simplifies setup and transport operations, reducing physical strain on operators and speeding up field positioning.
Telescopic Stabilising Feet	Fitted with telescopic mechanical feet for adjustable levelling and stability on uneven terrain.	Ensures stable operation on varied field conditions, preventing tipping and maintaining consistent irrigation performance.
Multi-Diameter Hose Compatibility	Designed to accommodate multiple hose diameters from 75mm to 110mm with corresponding trolley configurations.	Offers flexibility to match irrigation requirements across different field sizes and crop types, maximising investment versatility.
Dual Bauer Water Inlet	Features galvanised double water inlet system with Bauer couplings in Ø89 or Ø108 sizes depending on hose diameter.	Ensures secure, quick-connect water supply with industry-standard fittings, minimising setup time and preventing leaks.
Professional Raingun Trolley	Includes purpose-designed TL3 or TL4 raingun trolleys with 3 or 5 large solid wheels based on hose diameter requirements.	Provides smooth, stable travel across fields whilst protecting the hose from damage, ensuring uniform irrigation coverage throughout the entire run.
Complete Nozzle Sets	Supplied with comprehensive nozzle sets including ROYAL (Ø16-22mm) and REFLEX (Ø24-32mm) options for the raingun.	Allows precise adjustment of water application rates to match soil types and crop needs, optimising water use efficiency.
Glycerine Bath Pressure Gauge	Equipped with a professional-grade pressure gauge filled with glycerine for accurate, vibration-dampened readings.	Enables precise monitoring of operating pressure for optimal irrigation performance whilst extending gauge lifespan through vibration protection.
Heavy-Duty Agricultural Wheels	Mounted on robust 10.0/80-12 8PR 5F agricultural tyres designed for field transport.	Provides excellent traction and stability across soft or uneven terrain, enabling safe relocation between irrigation sites.
Comprehensive Safety Guards	Includes steel safety guards that are swaged, galvanised, and painted for protection around moving components.	Protects operators from rotating parts during operation, ensuring workplace safety and compliance with agricultural equipment standards.
Pure Polyethylene Hose	Supplied with polyethylene hose manufactured from unadulterated raw materials for maximum quality.	Ensures long-lasting hose performance with resistance to UV degradation, chemicals, and abrasion, reducing replacement frequency and maintenance costs.
Tachometer Monitoring	Integrated tachometer for real-time monitoring of winding speed and operational parameters.	Allows operators to maintain optimal retrieval speeds and verify correct operation, preventing hose damage and ensuring consistent irrigation application.


Feature Title

Feature

Benefit

6 Speed Gearbox

Features a 6-speed gearbox system that allows precise control of the hose retrieval speed.

Enables operators to adjust winding speed according to field conditions and crop sensitivity, preventing damage and optimising irrigation efficiency.

Turbine Drive System

Equipped with a water-powered turbine flanged directly on the gearbox with integrated by-pass functionality.

Provides reliable, fuel-free operation using water pressure alone, reducing operational costs and eliminating the need for external power sources.

Hot Galvanised Construction

Chassis and turret manufactured with hot galvanised steel for maximum corrosion protection.

Ensures exceptional durability and extends equipment lifespan even in harsh agricultural environments with constant water exposure.

Multi-Layer Protective Coating

Reel coated with epoxy resin base layer and finished with polyurethane paint for superior protection.

Provides outstanding resistance to UV rays, chemicals, and weathering, maintaining appearance and structural integrity over years of use.

Mechanical Trolley Lifting

Incorporates a mechanical lifting device for easy raising and lowering of the raingun trolley.

Simplifies setup and transport operations, reducing physical strain on operators and speeding up field positioning.

Telescopic Stabilising Feet

Fitted with telescopic mechanical feet for adjustable levelling and stability on uneven terrain.

Ensures stable operation on varied field conditions, preventing tipping and maintaining consistent irrigation performance.

Multi-Diameter Hose Compatibility

Designed to accommodate multiple hose diameters from 75mm to 110mm with corresponding trolley configurations.

Offers flexibility to match irrigation requirements across different field sizes and crop types, maximising investment versatility.

Dual Bauer Water Inlet

Features galvanised double water inlet system with Bauer couplings in Ø89 or Ø108 sizes depending on hose diameter.

Ensures secure, quick-connect water supply with industry-standard fittings, minimising setup time and preventing leaks.

Professional Raingun Trolley

Includes purpose-designed TL3 or TL4 raingun trolleys with 3 or 5 large solid wheels based on hose diameter requirements.

Provides smooth, stable travel across fields whilst protecting the hose from damage, ensuring uniform irrigation coverage throughout the entire run.

Complete Nozzle Sets

Supplied with comprehensive nozzle sets including ROYAL (Ø16-22mm) and REFLEX (Ø24-32mm) options for the raingun.

Allows precise adjustment of water application rates to match soil types and crop needs, optimising water use efficiency.

Glycerine Bath Pressure Gauge

Equipped with a professional-grade pressure gauge filled with glycerine for accurate, vibration-dampened readings.

Enables precise monitoring of operating pressure for optimal irrigation performance whilst extending gauge lifespan through vibration protection.

Heavy-Duty Agricultural Wheels

Mounted on robust 10.0/80-12 8PR 5F agricultural tyres designed for field transport.

Provides excellent traction and stability across soft or uneven terrain, enabling safe relocation between irrigation sites.

Comprehensive Safety Guards

Includes steel safety guards that are swaged, galvanised, and painted for protection around moving components.

Protects operators from rotating parts during operation, ensuring workplace safety and compliance with agricultural equipment standards.

Pure Polyethylene Hose

Supplied with polyethylene hose manufactured from unadulterated raw materials for maximum quality.

Ensures long-lasting hose performance with resistance to UV degradation, chemicals, and abrasion, reducing replacement frequency and maintenance costs.

Tachometer Monitoring

Integrated tachometer for real-time monitoring of winding speed and operational parameters.

Allows operators to maintain optimal retrieval speeds and verify correct operation, preventing hose damage and ensuring consistent irrigation application.
