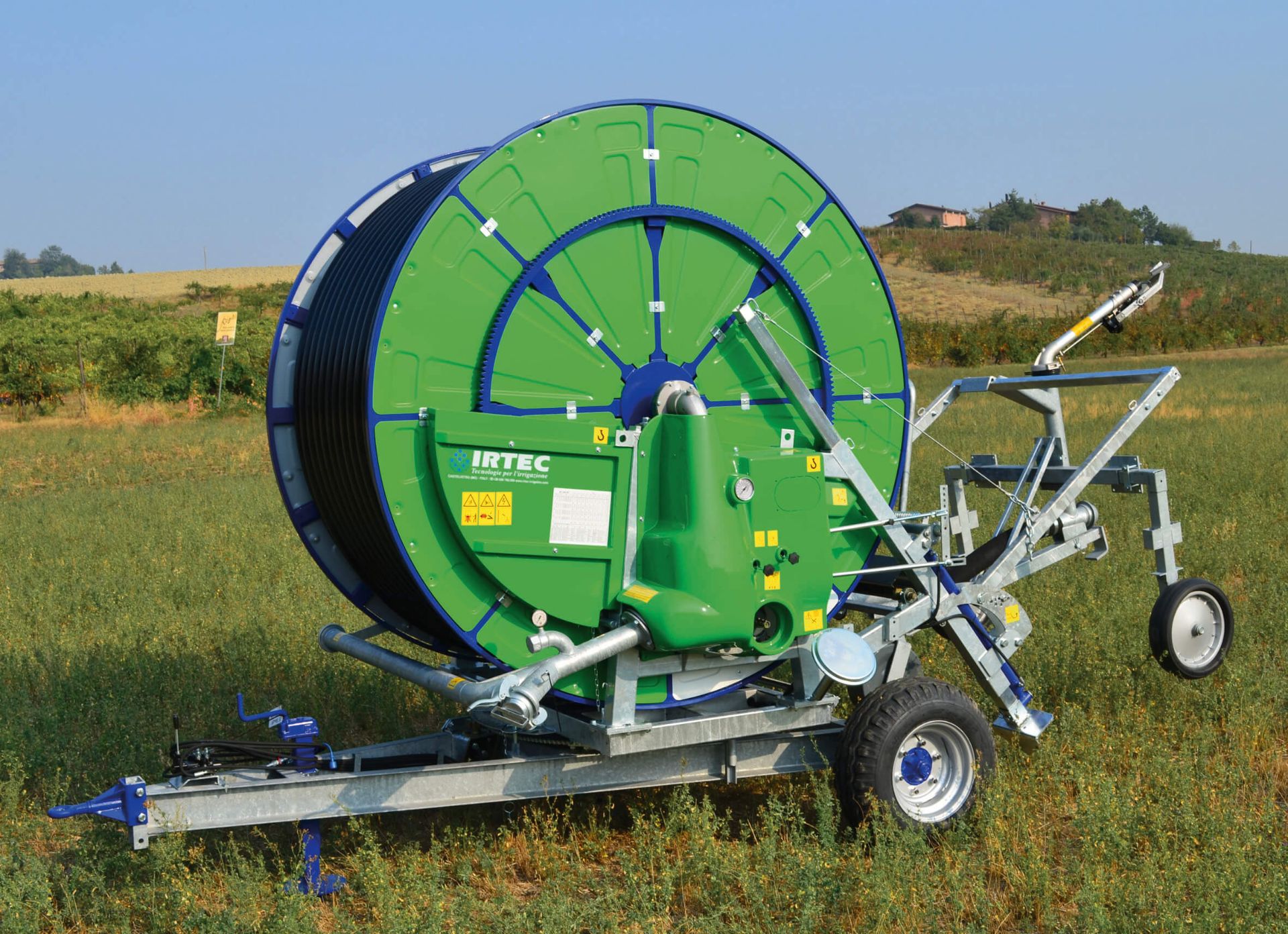

G/D6

Hydraulic lifting device of trolley
Telescopic hydraulic feet
6 Speed gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
TL4 raingun trolley with 3 large solid wheels up to hose Ø 82
TL4 raingun trolley with 5 large solid wheels for hose Ø 90
TL3 raingun trolley with 5 large solid wheels for hose Ø 100 - 110
TL2 raingun trolley with 5 large solid wheels from hose Ø 120
Raingun
Set of nozzles ROYAL raingun from Ø 16 to Ø 22
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Pressure gauge (glycerine bath)
Winding handle
Speed equalizer
Tachometer
Safety guards
2 wheels mod. 10.0/75-15.3 10PR 6F
Hot galvanized chassis and turret
Reel coated by epoxy resin and painted with polyurethane paint
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
For hose diam. 82-90-100 water inlet Bauer Ø 89
For hose diam. 110 - 120 water inlet Bauer Ø 108
Polyethylene hose made by unadulterated raw material

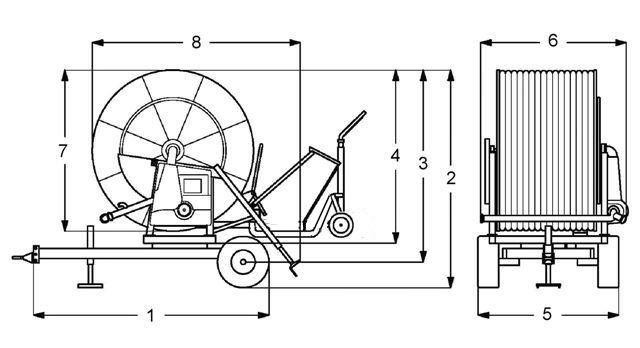

1 cm.	2 cm.	3 cm.	4 cm.	5 cm.	6 cm.	7 cm.	8 cm.
340	314	286	260	210	225	246	295

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
82	500	ROYAL	16/18/20	3	82G_D6500.pdf
90	370	REFLEX	24/26/28	8	82G_D6500.pdf
90	400	REFLEX	24/26/28	10	82G_D6500.pdf
100	300	REFLEX	26/28/30	6	82G_D6500.pdf
100	330	REFLEX	26/28/30	8	82G_D6500.pdf
100	350	REFLEX	26/28/30	9	82G_D6500.pdf
110	250	REFLEX	28/30/32	2	82G_D6500.pdf
120	230	REFLEX	28/30/32	2	82G_D6500.pdf
