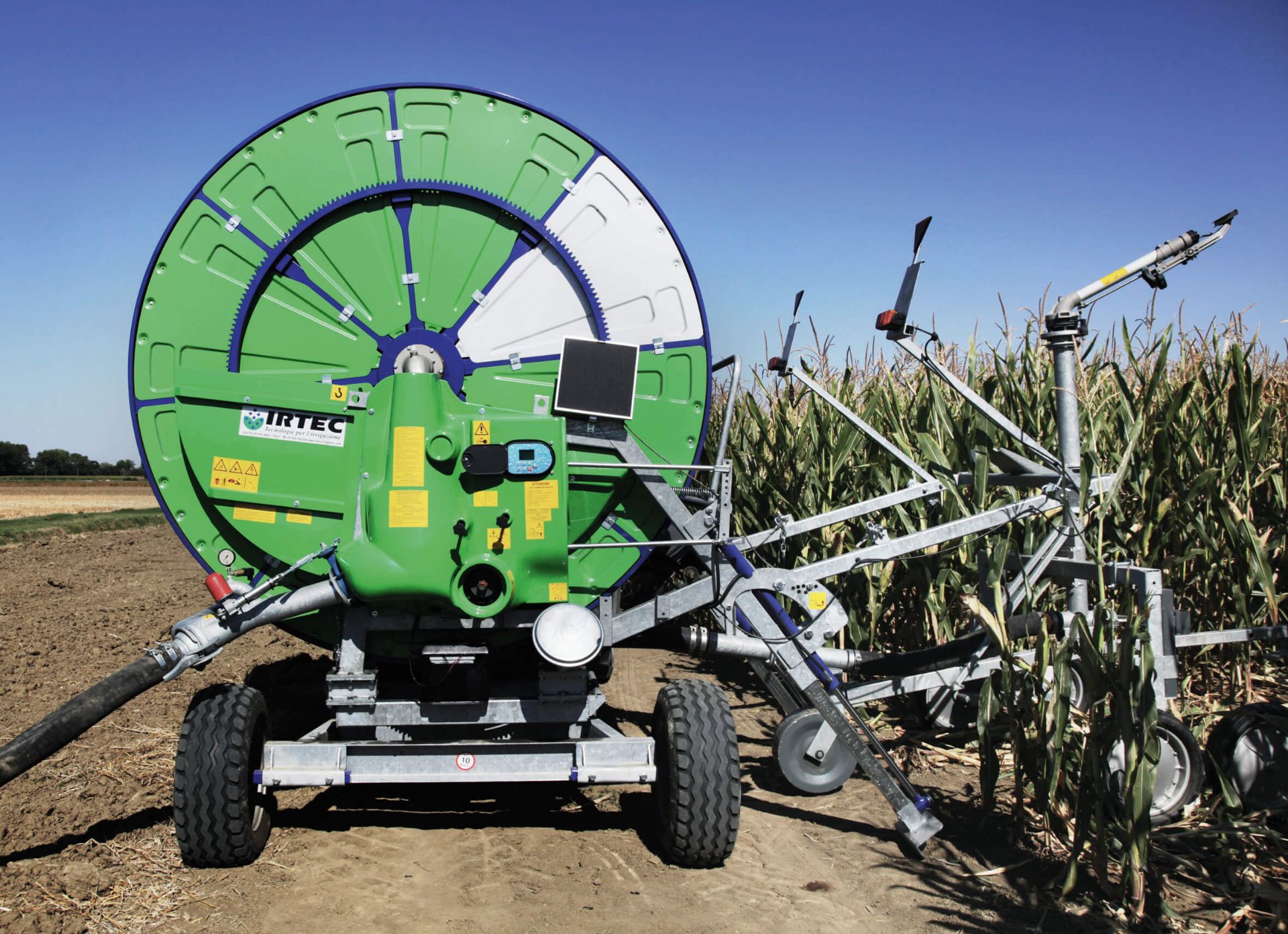

G/D6/1

Hydraulic lifting device of trolley
Telescopic hydraulic feet
6 Speed gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
TL4 raingun trolley with 5 large solid wheels for hose Ø 90
TL3 raingun trolley with 5 large solid wheels for hose Ø 110
Raingun . Set of nozzles ROYAL raingun from Ø 16 to Ø 22
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Pressure gauge (glycerine bath)
Winding handle
Speed equalizer
Tachometer
Safety guards
2 wheels mod. 10.0/75-15.3 10PR 6F
Hot galvanized chassis and turret
Reel coated by epoxy resin and painted with polyurethane paint
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
For hose diam. 90 water inlet Bauer Ø 89
For hose diam. 110 - 120 water inlet Bauer Ø 108
Polyethylene hose made by unadulterated raw material

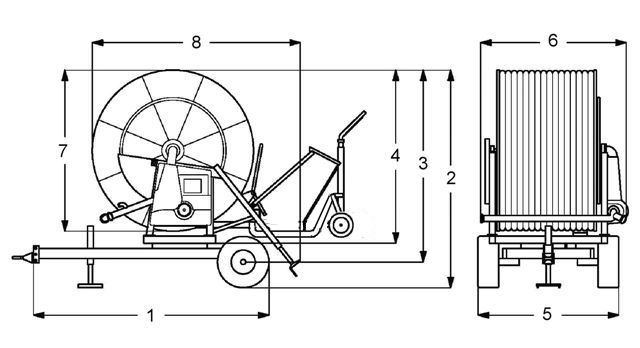

1 cm.	2 cm.	3 cm.	4 cm.	5 cm.	6 cm.	7 cm.	8 cm.
340	324	296	270	210	225	246	295

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
90	450	REFLEX	24/26/28	4	90G_D6_1450.pdf
90	480	REFLEX	24/26/28	2	90G_D6_1480.pdf
110	300	REFLEX	28/30/32	8	110G_D6_1300.pdf
110	320	REFLEX	28/30/32	9	110G_D6_1320.pdf
