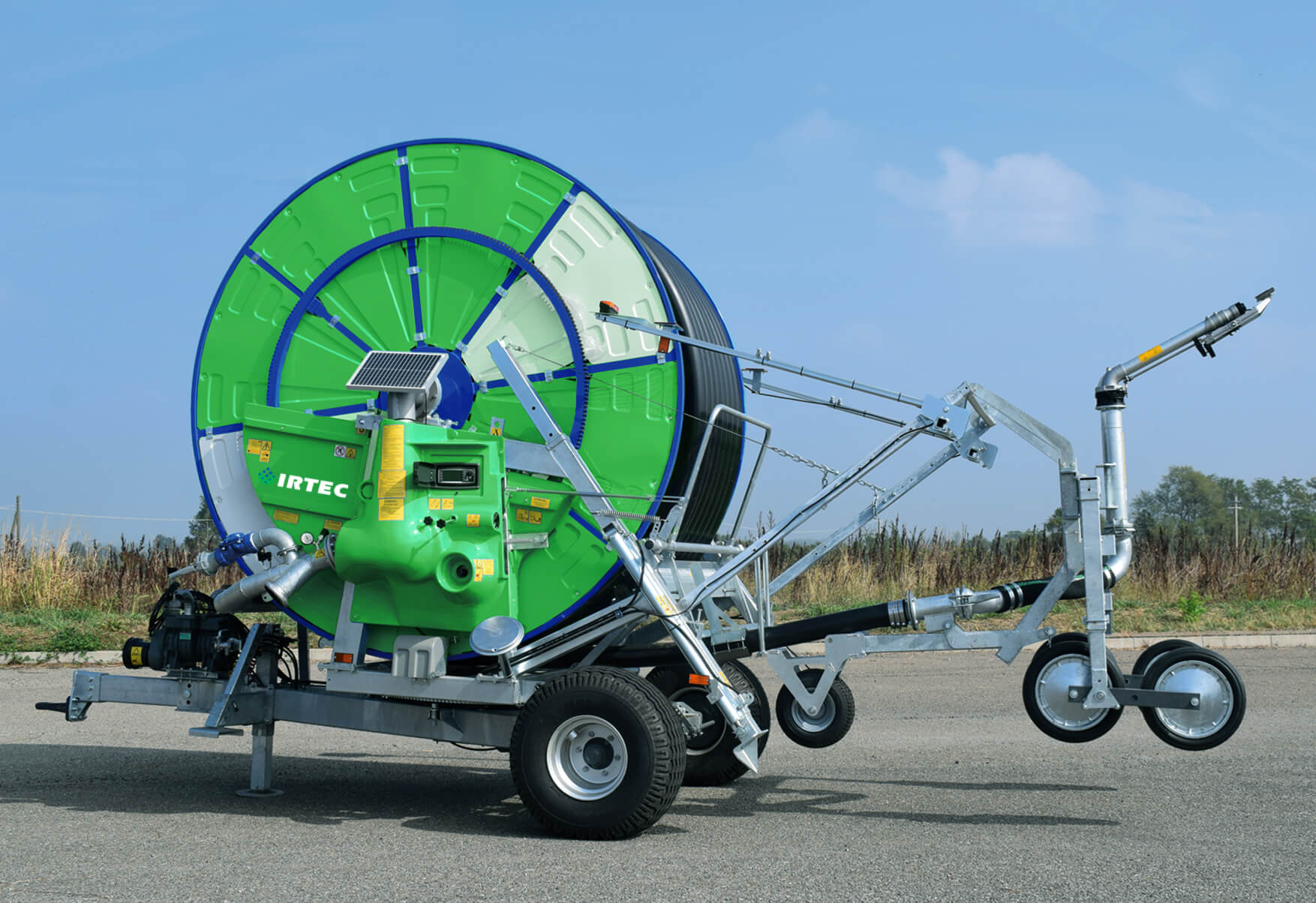

G/ES3R

Hydraulic rotation and hydraulic lifting of drawbar
Independent hydraulic lift with swivel to hook the gun trolley
Telescopic hydraulic feet
4 Speed gearbox
Power take off .
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
TL3 raingun trolley with 5 large solid wheels for hose Ø 110
TL2 raingun trolley with 5 large solid wheels from hose Ø 120
Raingun . Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Winding handle
Speed equalizer
Tachometer
Pressure gauge (glycerine bath)
Safety guards
2 wheels mod. 400/60-15.5 16 PR 6F
Stabilizers on drawbar
Hot galvanized chassis and turret
Reel coated by epoxy resin and painted with polyurethane paint
Reinforced reel with 16 lateral supports
Lateral reel’s support
Reinforced stabilizer legs
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
Polyethylene hose made by unadulterated raw material

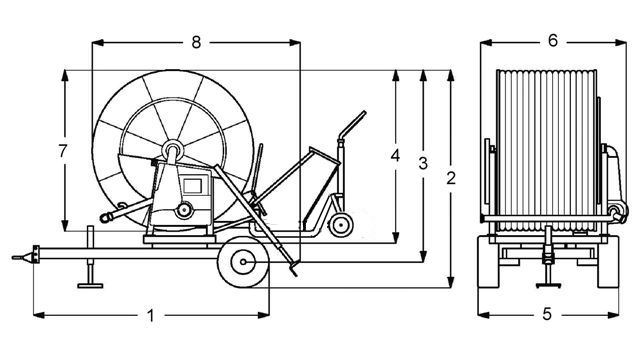

1 cm.	2 cm.	3 cm.	4 cm.	5 cm.	6 cm.	7 cm.	8 cm.
375	363	334	306	240	247	286	338

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
110	510	REFLEX	26/28/30	6	110G_ES3R510.pdf
110	540	REFLEX	26/28/30	7	110G_ES3R540.pdf
110	580	REFLEX	26/28/30	9	110G_ES3R580.pdf
120	380	EXPLORER	30/32/34	5	120G_ES3R380.pdf
120	420	EXPLORER	32/34/36	3	120G_ES3R420.pdf
120	450	EXPLORER	32/34/36	2	120G_ES3R450.pdf
125	370	EXPLORER	32/34/36	5	125G_ES3R370.pdf
125	390	EXPLORER	32/34/36	4	125G_ES3R390.pdf
125	430	EXPLORER	32/34/36	2	125G_ES3R430.pdf
