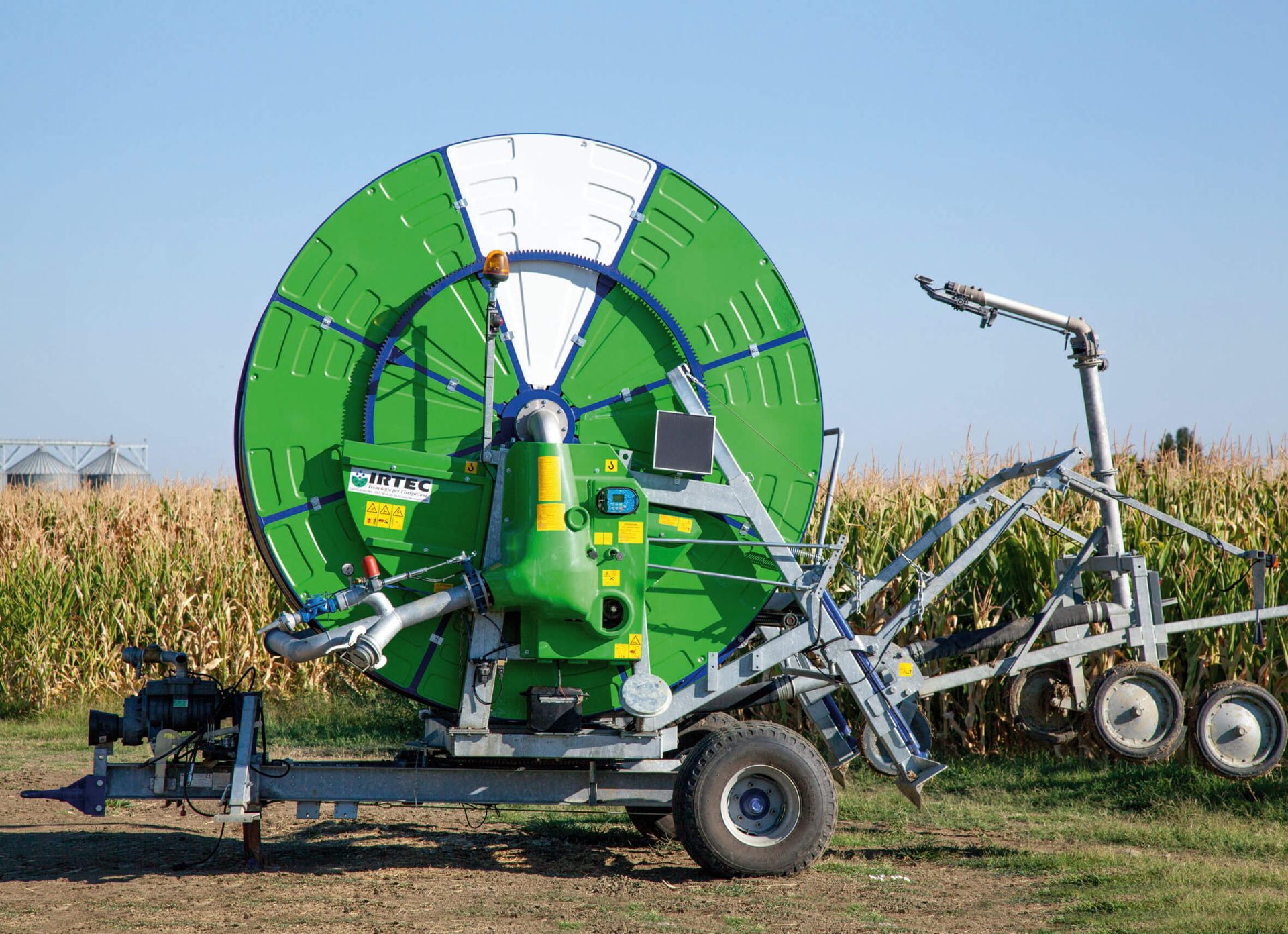

G/F10

Hydraulic lifting device of trolley
Telescopic hydraulic feet
4 Speed gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
TL3 raingun trolley with 5 large solid wheels for hose Ø 100 - 110
TL2 raingun trolley with 5 large solid wheels from hose Ø 120
Raingun . Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Winding handle
Speed equalizer
Tachometer
Pressure gauge (glycerine bath)
Mechanical lifting of drawbar
Safety guards
2 wheels mod. 11.5/80-15.3 12PR 6F
Hot galvanized chassis and turret
Reel coated by epoxy resin and painted with polyurethane paint
Stabilizers on drawbar
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
Polyethylene hose made by unadulterated raw material

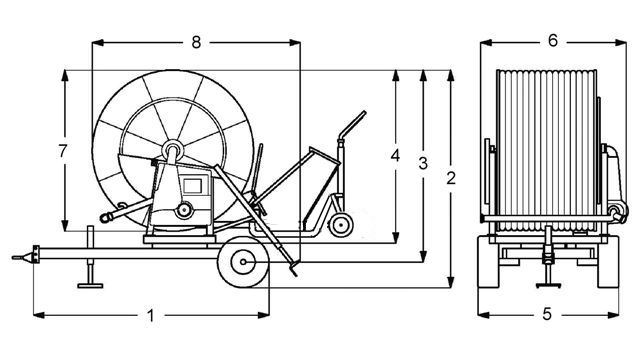

1 cm.	2 cm.	3 cm.	4 cm.	5 cm.	6 cm.	7 cm.	8 cm.
375	385	345	325	243	247	309	360

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
100	550	REFLEX	26/28/30	4	100G_F10550.pdf
100	600	REFLEX	26/28/30	2	100G_F10600.pdf
110	500	REFLEX	26/28/30	4	110G_F10500.pdf
110	530	REFLEX	26/28/30	3	110G_F10530.pdf
110	550	REFLEX	26/28/30	2	110G_F10550.pdf
120	440	EXPLORER	30/32/34	10	120G_F10440.pdf
125	400	EXPLORER	32/34/36	8	125G_F10400.pdf
125	420	EXPLORER	32/34/36	9	125G_F10420.pdf
135	350	EXPLORER	34/36/38	8	135G_F10350.pdf
135	370	EXPLORER	34/36/38	9	135G_F10370.pdf
140	300	EXPLORER	36/38/40	6	140G_F10300.pdf
140	350	EXPLORER	36/38/40	9	140G_F10350.pdf
