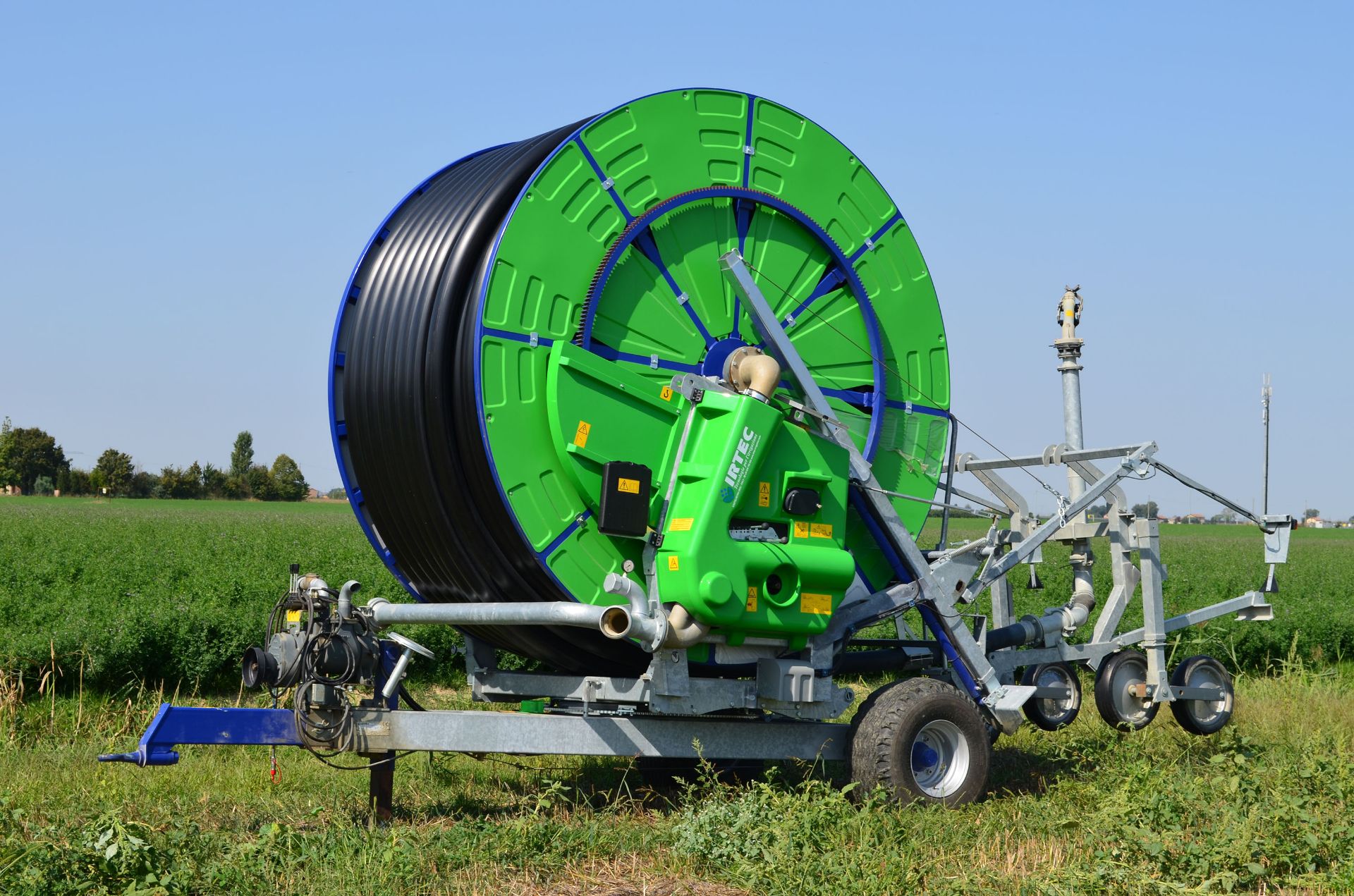

G/F8 Special

Hydraulic lifting device of trolley
Telescopic hydraulic feet
4 synchronised speed gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
TL3 raingun trolley with 5 large solid wheels for hose Ø 100 - 110
TL2 raingun trolley with 5 large solid wheels from hose Ø 120
Raingun . Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Winding handle
Speed equalizer
Tachometer
Pressure gauge (glycerine bath)
Mechanical lifting of drawbar
Safety guards
2 wheels mod. 400/60-15.5 16 PR 6F
Hot galvanized chassis and turret
Reel coated by epoxy resin and painted with polyurethane paint
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
For hose diam. 110-120-125 water inlet Bauer Ø 108
For hose diam. 135-140 water inlet Bauer Ø 133
Polyethylene hose made by unadulterated raw material
Hydraulic rotation device with hydraulic lift of drawbar

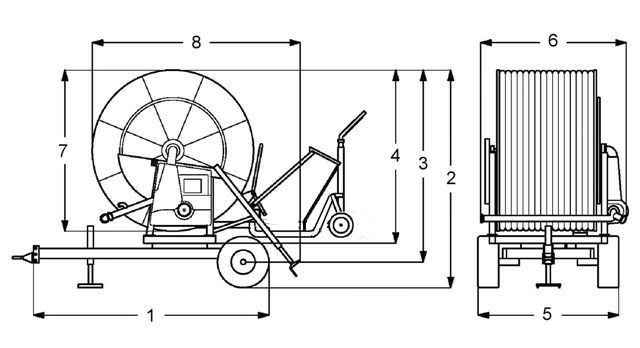

1 cm.	2 cm.	3 cm.	4 cm.	5 cm.	6 cm.	7 cm.	8 cm.
364	412	370	352	235	243	318	350

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
110	700	REFLEX	24/26/28	D	110G_F8SP700.pdf
110	750	REFLEX	24/26/28	C	110G_F8SP750.pdf
120	620	EXPLORER	30/32/34	J	120G_F8SP620.pdf
125	550	EXPLORER	32/34/36	H	125G_F8SP550.pdf
125	600	EXPLORER	32/34/36	J	125G_F8SP600.pdf
135	460	EXPLORER	34/36/38	B	135G_F8SP460.pdf
140	450	EXPLORER	36/38/40	A	140G_F8SP450.pdf
