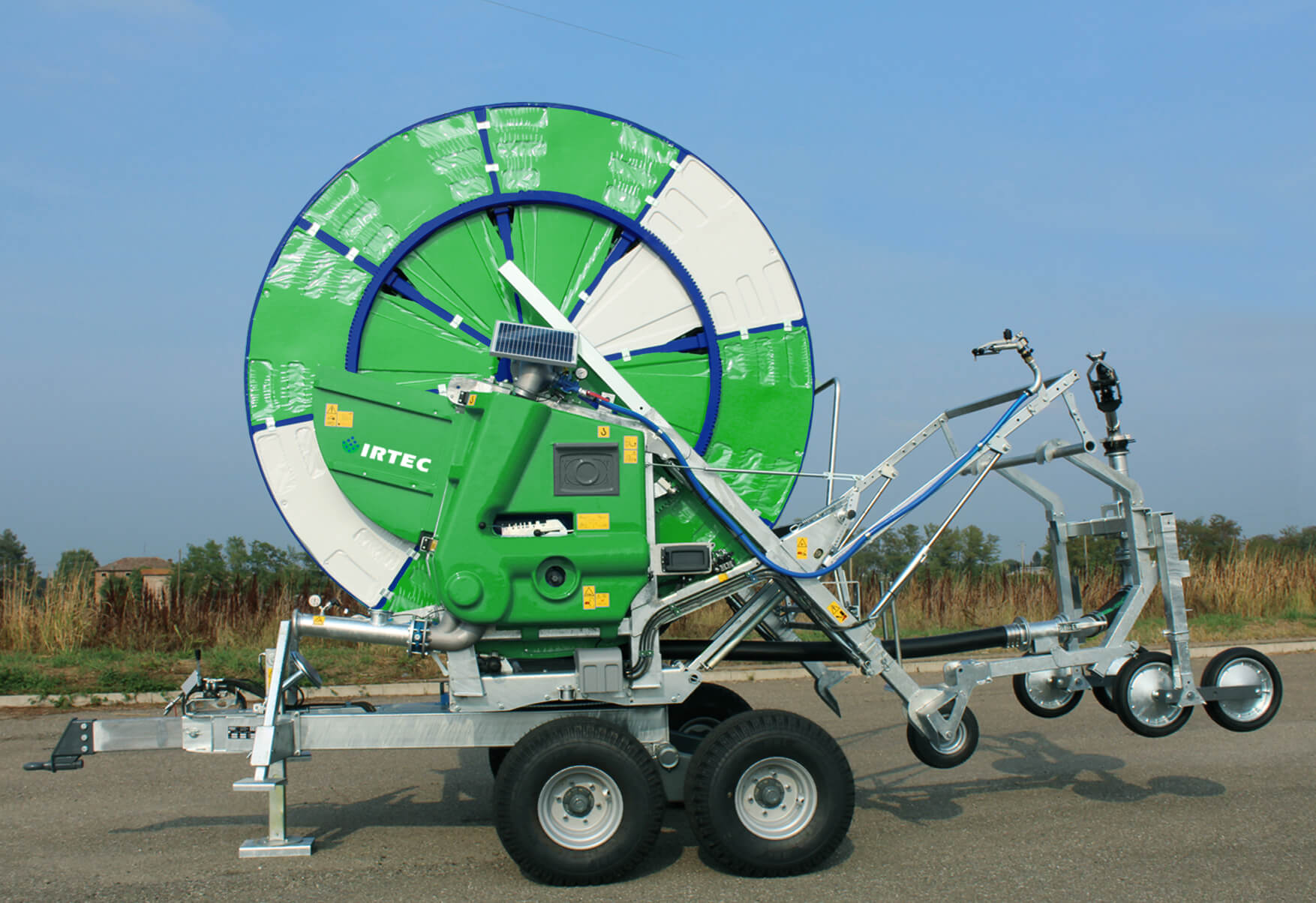

Irtec GF8R Turbine Drive Hard Hose Irrigator

Overview

Irtec is a leading manufacturer of high-quality irrigation equipment, and their Hose Reels are designed to provide efficient and reliable solutions for various irrigation needs. The Irtec Hose Reels are engineered to deliver seamless water distribution, making them an ideal choice for both small-scale and large-scale agricultural applications.

This specific model, the GF8R, stands out due to its advanced technology and robust construction. Featuring a turbine drive system with integrated bypass and a 4-speed synchronised gearbox, this hard hose irrigator delivers exceptional performance and reliability. Its hot galvanised chassis, reinforced reel with 16 lateral supports, and comprehensive hydraulic control system make it a versatile option for demanding irrigation operations across diverse field conditions.

Key Features & Benefits

• Turbine Drive System: Flanged turbine with built-in bypass ensures consistent winding performance and long-term reliability across varying pressure conditions.
• 4-Speed Synchronised Gearbox: Provides precise control over retrieval speed, allowing operators to optimise irrigation application rates for different crops and soil types.
• Comprehensive Hydraulic Control: Features hydraulic rotation and lifting of drawbar, independent hydraulic lift with swivel for gun trolley, and telescopic hydraulic feet for stable positioning on uneven terrain.
• Reinforced Construction: Heavy-duty reel with 16 lateral supports and reinforced stabiliser legs ensures structural integrity even under maximum load conditions.
• Superior Corrosion Protection: Hot galvanised chassis and turret combined with epoxy resin coating and polyurethane paint provide exceptional resistance to weathering and chemical exposure.
• Flexible Configuration Options: Available with hose diameters from 110mm to 125mm (4.33" to 4.92") and lengths up to 670m (2198ft), accommodating fields of various sizes.
• Professional Raingun Systems: Equipped with either REFLEX or EXPLORER rainguns with comprehensive nozzle sets, enabling precise water distribution patterns.
• Large Capacity Trolleys: TL3 and TL2 raingun trolleys with 5 large solid wheels ensure smooth movement across fields without damaging crops or soil structure.
• Complete Monitoring Equipment: Includes tachometer for speed verification, glycerine bath pressure gauge for accurate readings, and speed equaliser for consistent operation.
• Premium Hose Quality: Polyethylene hose manufactured from unadulterated raw material ensures durability and maintains consistent flow characteristics over years of service.
• Transport Ready Design: 19.0/45-17 22 PR wheels and stabilisers on drawbar facilitate safe road transport between irrigation sites.
• Safety Focused: Comprehensive safety guards made of swaged galvanised steel protect operators during all phases of operation.

Technical Specifications

Available Hose Configurations

Machine Dimensions

Diagram shows dimension reference points (1-8) on the machine.

Ideal Applications

• Large-Scale Row Crop Production: Perfect for irrigating extensive fields of maize, cotton, soybeans, and other row crops where consistent water application is critical for yield optimisation.
• Forage and Pasture Management: Excellent for maintaining productive grasslands and hay fields, supporting livestock operations with reliable water distribution across expansive grazing areas.
• Vegetable Farming: Suitable for large commercial vegetable operations requiring precise irrigation scheduling and uniform water application to maintain crop quality and marketability.
• Orchard and Vineyard Irrigation: Ideal for supplemental irrigation in permanent crop installations where portable systems need to cover inter-row spaces efficiently.
• Seed Production Fields: Well-suited for seed crop irrigation where precise water management is essential for maintaining genetic purity and maximising seed quality.
• Contract Irrigation Services: Excellent choice for irrigation contractors serving multiple properties, with robust construction and easy transport capability between locations.
• Agricultural Research Facilities: Provides reliable irrigation control for experimental plots and research trials requiring consistent water management protocols.
• Turf Production: Effective for commercial sod farms and turf production facilities needing uniform irrigation across large growing areas.

Standard Equipment
