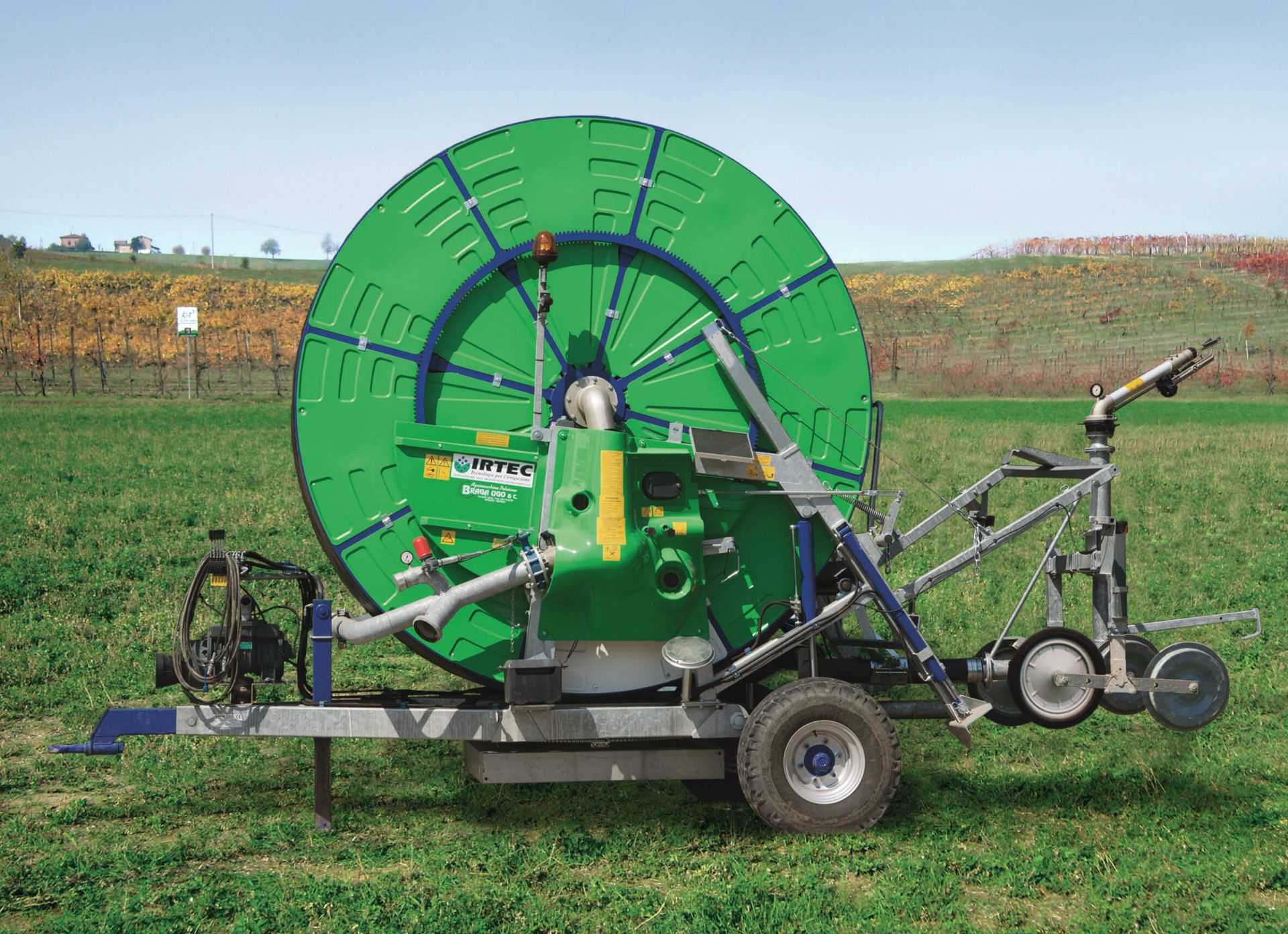

GI/F

Hydraulic lifting device of trolley
Hydraulic rotation of turntable
Hydraulic lifting of drawbar
Telescopic hydraulic feet
4 Speed gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Raingun
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Pressure gauge (glycerine bath)
Winding handle
Speed equalizer
Tachometer
Hydraulic system by rapid couplings to tractor
Safety guards
2 wheels 11.5/80-15.3 12PR 6F
Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
Polyethylene hose made by unadulterated raw material

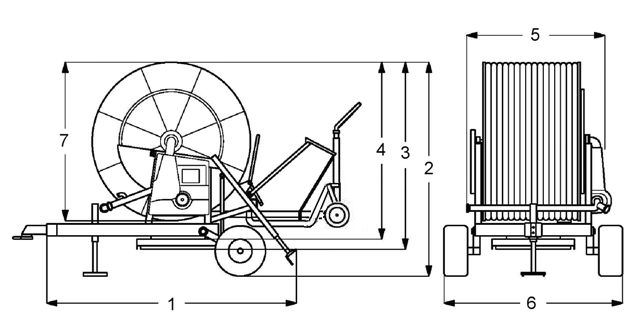

1 cm.	2 cm.	3 cm.	4 cm.	5 cm.	6 cm.	7 cm.
400	383	355	330	240	288	309

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
100	550	REFLEX	24/26/28	4	100GI_F550.pdf
100	600	REFLEX	24/26/28	2	100GI_F600.pdf
110	500	REFLEX	26/28/30	4	110GI_F500.pdf
110	530	REFLEX	26/28/30	3	110GI_F530.pdf
110	550	REFLEX	24/26/28	2	110GI_F550.pdf
120	440	EXPLORER	30/32/34	10	120GI_F440.pdf
125	400	EXPLORER	32/34/36	8	125GI_F400.pdf
125	420	EXPLORER	32/34/36	9	125GI_F420.pdf
135	350	EXPLORER	34/36/38	8	135GI_F350.pdf
135	370	EXPLORER	34/36/38	9	135GI_F370.pdf
140	300	EXPLORER	36/38/40	6	140GI_F300.pdf
140	350	EXPLORER	36/38/40	9	140GI_F350.pdf
