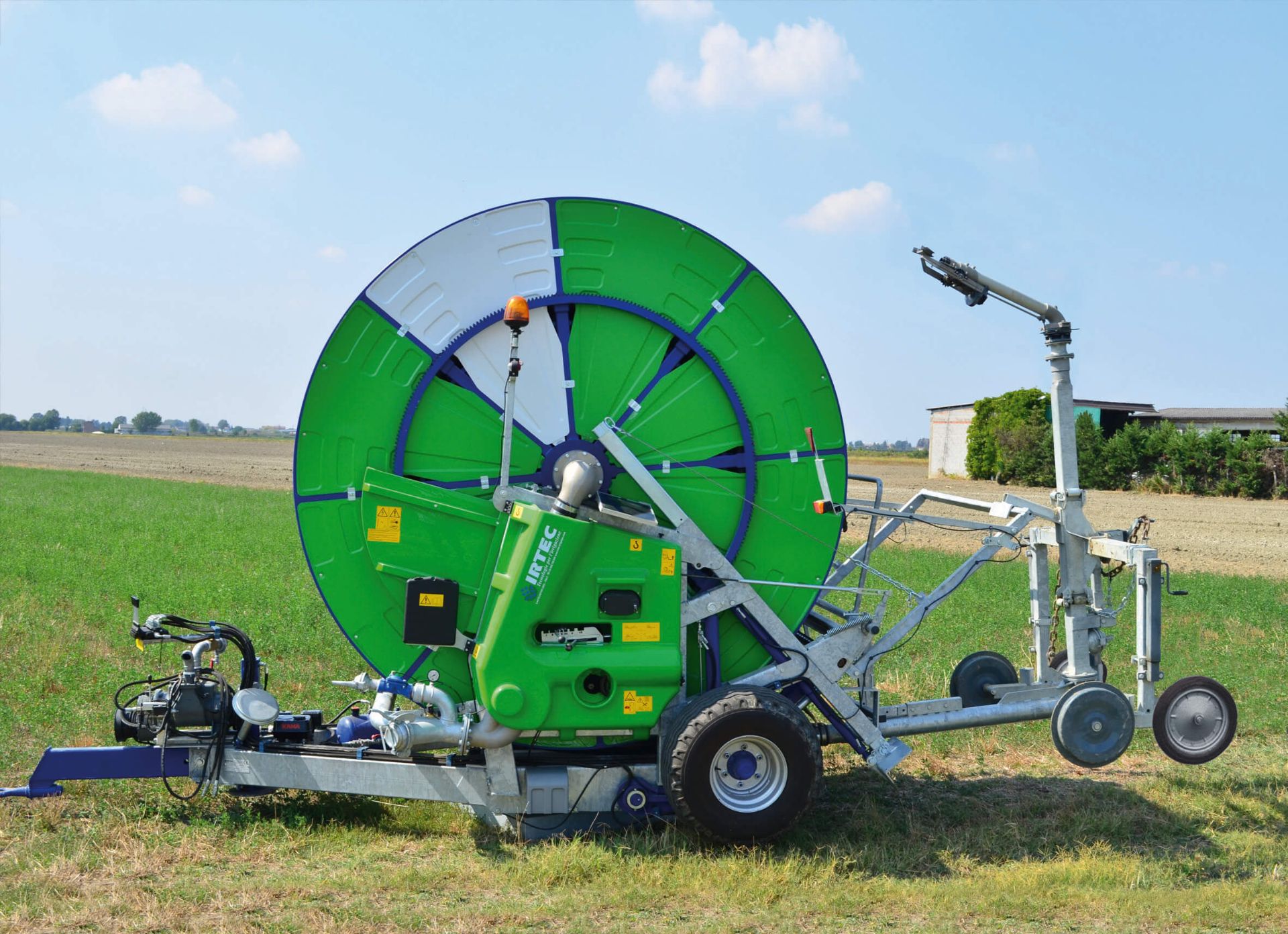

GI/F8 Special

Hydraulic lifting device of trolley
Hydraulic rotation of turntable
Hydraulic lifting of drawbar
Telescopic hydraulic feet
4 synchronised speed gearbox
Power take off . Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Raingun . Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Pressure gauge (glycerine bath)
Winding handle
Speed equalizer
Tachometer
Hydraulic system by rapid couplings to tractor
Safety guards . 2 wheels 400/60-15.5 16PR 6F
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
For hose diam. 100-110-120-125 water inlet Bauer Ø 108
For hose diam. 135-140-150 water inlet Bauer Ø 133
Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
Polyethylene hose made by unadulterated raw material

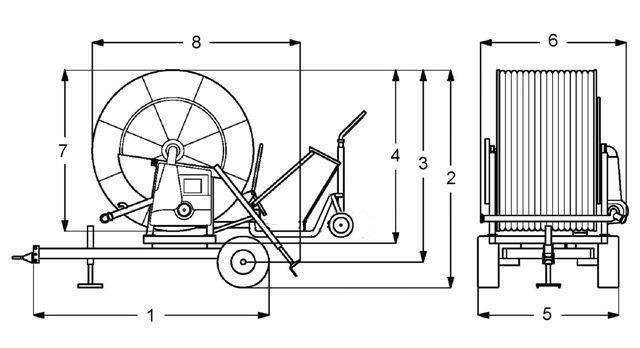

1 cm.	2 cm.	3 cm.	4 cm.	5 cm.	6 cm.	7 cm.
410	407	374	353	249	282	318

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
110	700	REFLEX	24/26/28	4	110GI_F8SP700.pdf
110	750	REFLEX	24/26/28	3	110GI_F8SP750.pdf
120	620	EXPLORER	30/32/34	10	120GI_F8SP620.pdf
125	550	EXPLORER	32/34/36	8	125GI_F8SP550.pdf
125	600	EXPLORER	32/34/36	10	125GI_F8SP600.pdf
135	460	EXPLORER	34/36/38	2	135GI_F8SP460.pdf
140	450	EXPLORER	36/38/40	1	140GI_F8SP450.pdf
150	350	EXPLORER	36/38/40	9	150GI_F8SP350.pdf
