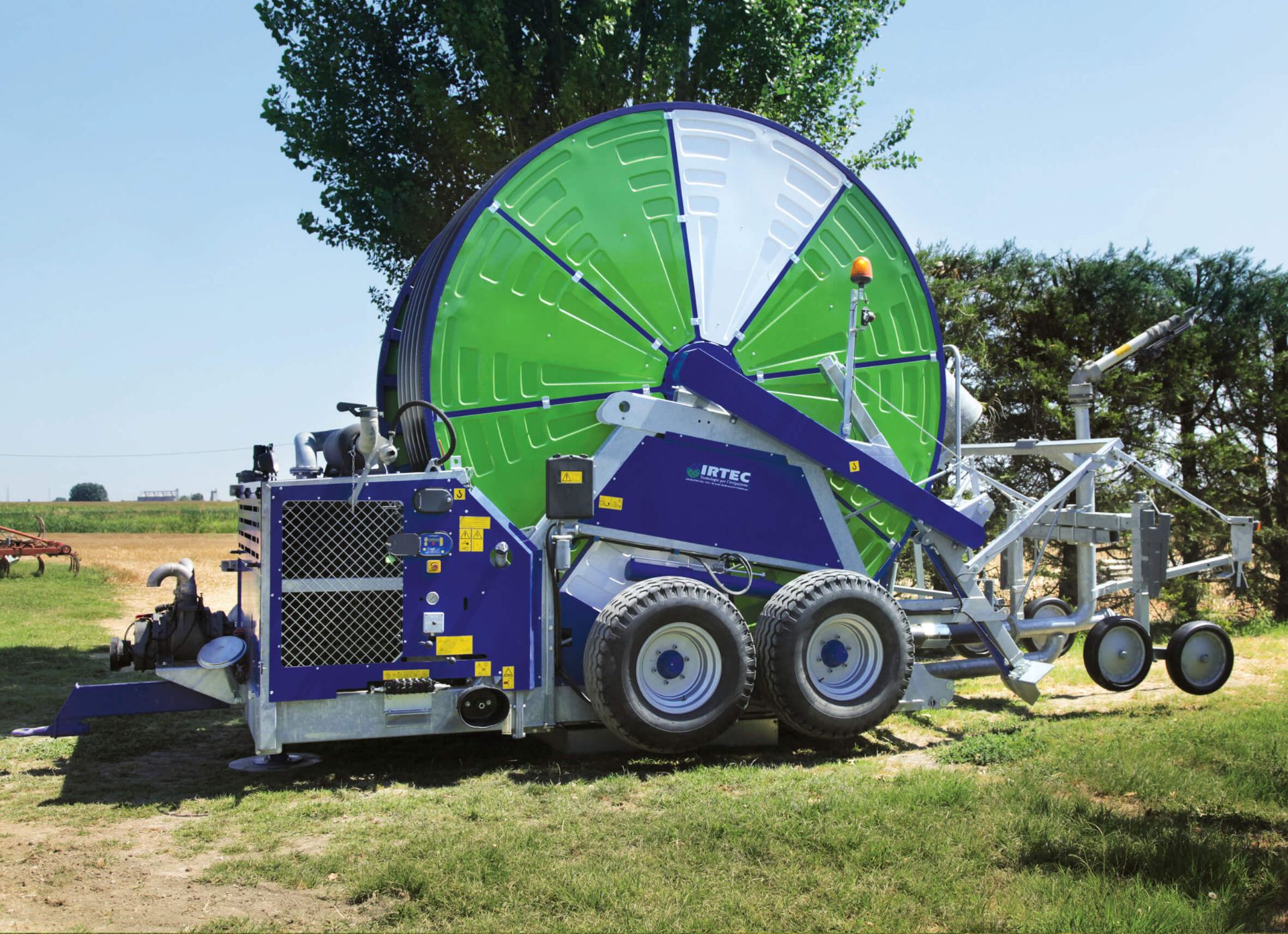

MAGNUMSP2M

4 wheel chassis
Hydraulic lifting device of trolley
Hydraulic rotation of turntable
Telescopic hydraulic feet
Hydraulic lifting of drawbar
Power take off
4 synchronised speed gearbox
Turbine flanged on the gearbox with double built-in by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Pressure gauge (glycerine bath)
Raingun
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Set of nozzles LANCER raingun from Ø 30 to Ø 40
Winding handle
Computer Easy Rain
Hose retraction by double chain
Hydraulic system by rapid couplings to tractor
Safety guards
4 wheels 15.0/70-18 148A8 14PR 6F
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
Water inlet with Bauer 133
Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
Polyethylene hose made by unadulterated raw material

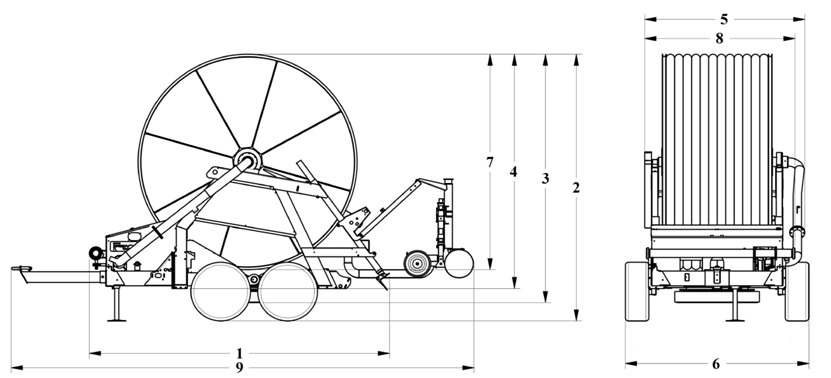

1 cm.	2 cm.	3 cm.	4 cm.	5 cm.	6 cm.	7 cm.	8 cm.
510	450	420	396	255	312	363	750

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
125	750	EXPLORER	28/30/32	2	125MGSP2M750.pdf
125	820	EXPLORER	30/32/34	5	125MGSP2M820.pdf
135	650	EXPLORER	32/34/36	1	135MGSP2M650.pdf
135	700	EXPLORER	32/34/36	3	135MGSP2M700.pdf
135	750	EXPLORER	32/34/36	5	135MGSP2M750.pdf
140	550	EXPLORER	34/36/38	10	140MGSP2M550.pdf
140	600	EXPLORER	34/36/38	7	140MGSP2M600.pdf
140	630	EXPLORER	34/36/38	1	140MGSP2M630.pdf
140	700	EXPLORER	34/36/38	4	140MGSP2M700.pdf
140	720	EXPLORER	34/36/38	5	140MGSP2M720.pdf
150	500	EXPLORER	36/38/40	10	150MGSP2M500.pdf
150	550	EXPLORER	36/38/40	8	150MGSP2M550.pdf
150	600	EXPLORER	36/38/40	6	150MGSP2M600.pdf
160	400	LANCER	38/40/42	1	160MGSP2M400.pdf
160	450	LANCER	38/40/42	3	160MGSP2M450.pdf
160	480	LANCER	38/40/42	5	160MGSP2M480.pdf
