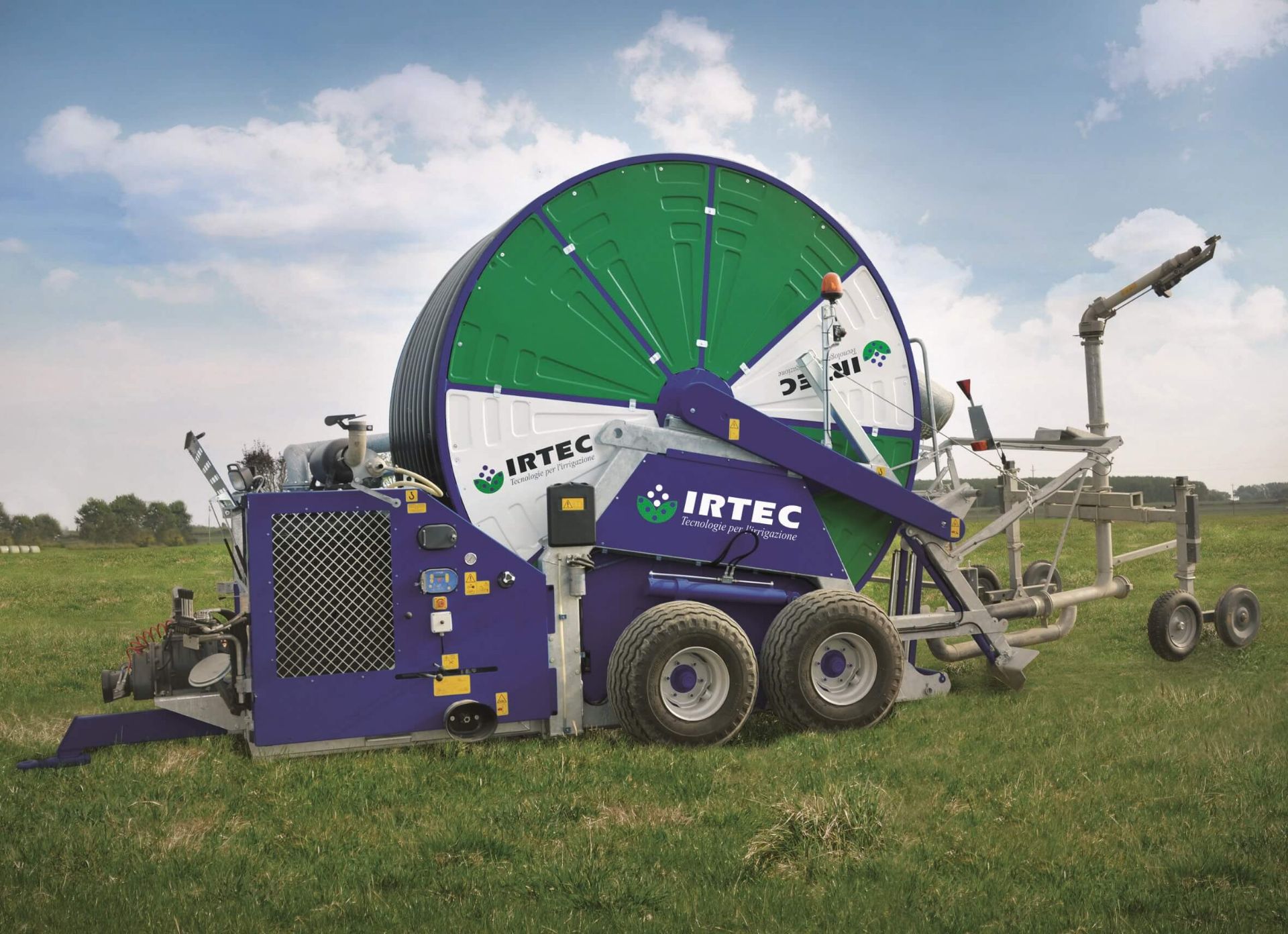

    MustangM

    Manufacturer: Irtec

    ALL-IN-ONE IRRIGATORS READY TO LIFT WATER BEFORE DISTRIBUTING IT.

    The motor pump mounted on the frame allows water to be lifted directly from canals and, if necessary, it is ready as a booster pump.

    *
    • 4 wheel chassis
    • Hydraulic lifting device of trolley
    • Hydraulic rotation of turntable
    • Telescopic hydraulic feet
    • Hydraulic lifting of drawbar
    • 4 synchronised speed gearbox
    • Power take off
    • Turbine flanged on the gearbox with double built-in by-pass
    • Flexible connection pipe
    • Galvanized raingun trolley mounted on variable track wheels
    • Pressure gauge (glycerine bath)
    • Raingun
    • Set of nozzles REFLEX raingun from Ø 24 to Ø 32
    • Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
    • Winding handle . Computer Easy Rain
    • Hose retraction by double chain
    • Hydraulic system by rapid couplings to tractor
    • Safety guards
    • 4 wheels 11.5/80-15.3 12PR 6F
    • Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
    • Safety guards made of steel, swaged galvanized and painted
    • Galvanized double water inlet
    • For hose diam. 110-120-125 water inlet Bauer Ø 108
    • For hose diam. 135-140-150 water inlet Bauer Ø 133
    • Polyethylene hose made by unadulterated raw material



    HOSE DIAMETER HOSE LENGHT RAINGUN NOZZLES END HOSE PERFORMANCE
    110 650 REFLEX 22/24/26 9 110MSM650.pdf
    110 670 REFLEX 22/24/26 9 110MSM670.pdf
    110 700 REFLEX 24/26/28 7 110MSM700.pdf
    110 730 REFLEX 24/26/28 6 110MSM730.pdf
    120 600 EXPLORER 28/30/32 8 120MSM600.pdf
    120 640 EXPLORER 26/28/30 6 120MSM640.pdf
    125 550 EXPLORER 32/34/36 9 125MSM550.pdf
    125 620 EXPLORER 28/30/32 6 125MSM620.pdf
    135 500 EXPLORER 32/34/36 4 135MSM500.pdf
    140 400 EXPLORER 34/36/38 6 140MSM400.pdf
    140 450 EXPLORER 34/36/38 8 140MSM450.pdf
    140 470 EXPLORER 34/36/38 9 140MSM470.pdf
    150 370 EXPLORER 36/38/40 6 150MSM370.pdf
    *
    *
    *
    *
