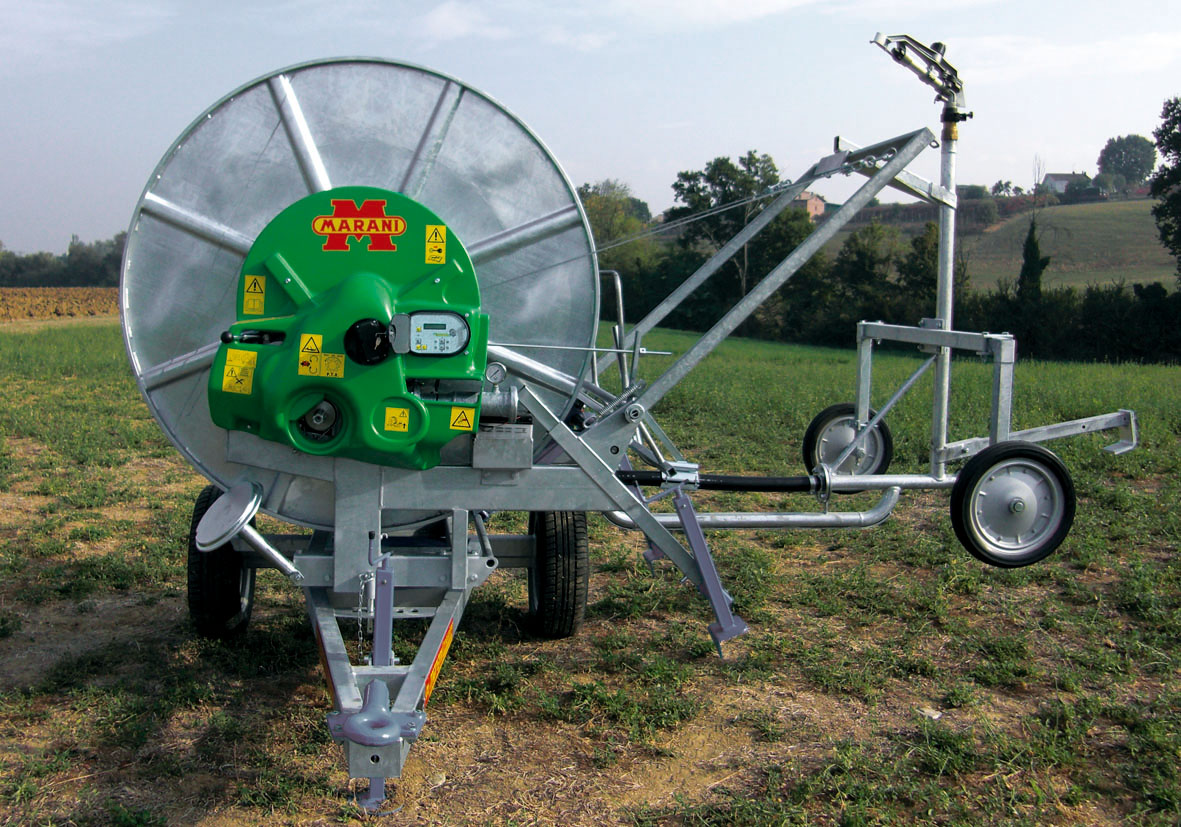

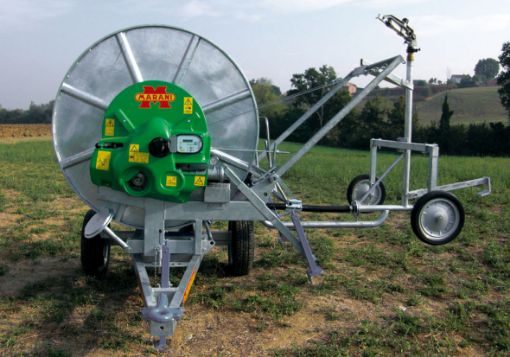

GT020B

Mechanical lifting device of trolley
Telescopic mechanical feet
Gearbox
Power take off
Turbine flanged on the gearbox with external by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Raingun
Set of nozzles HYDRA raingun from Ø 12 to Ø 16
Set of nozzles ROYAL raingun from Ø 16 to Ø 22
Pressure gauge (glycerine bath)
Winding handle
Computer Aqua System
Safety guards
2 wheels mod. 165/55 R14 4F
Hot galvanized chassis and turret
Hot galvanized reel
Polyethylene hose made by unadulterated raw material

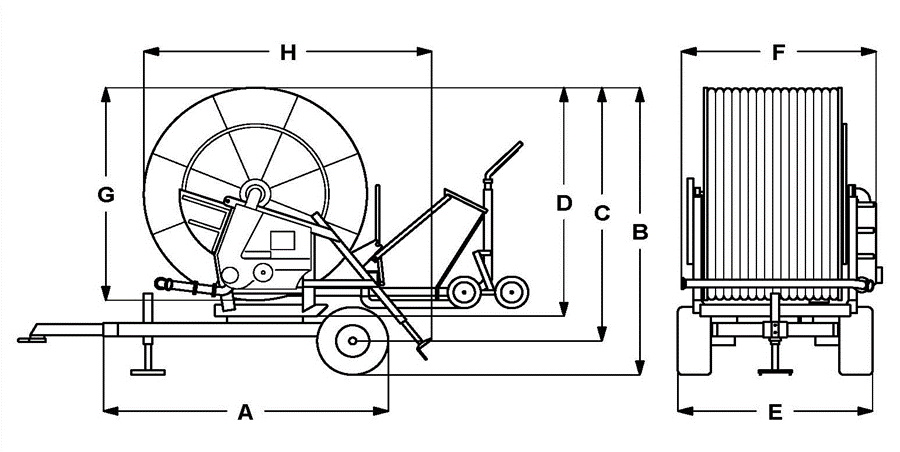

A cm.	B cm.	C cm.	D cm.	E cm.	F cm.	G cm.	H cm.
240	218	192	200	166	135	158	175

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
50	250	HYDRA	12/14/16	E	50R1AT15250.pdf
58	250	HYDRA	12/14/16	B	58R1AT15250.pdf
63	200	HYDRA	14/16/18	J	63R1AT15200.pdf
70	150	ROYAL	16/18/20	G	70R1AT15150.pdf
