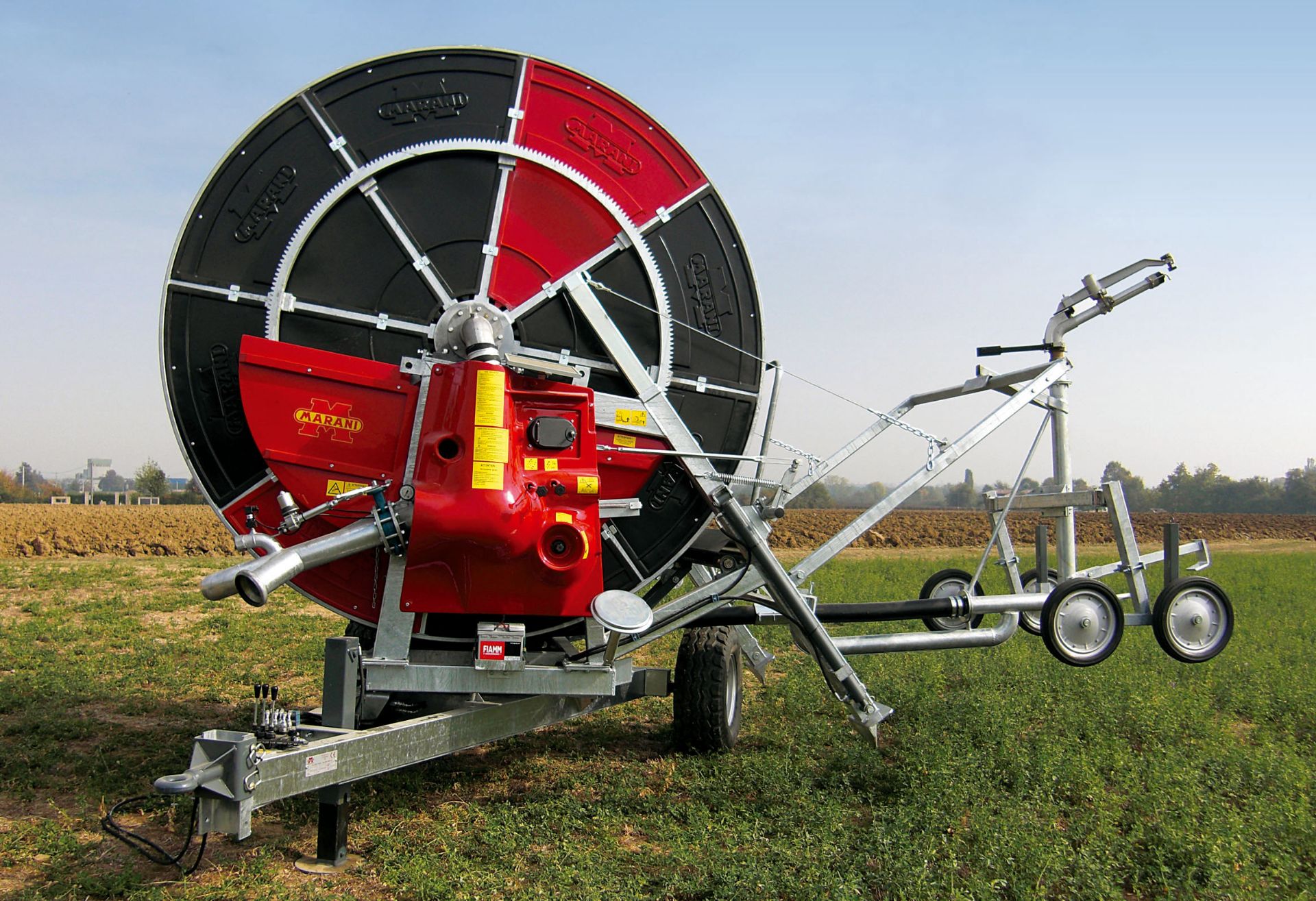

GT050B

Hydraulic lifting device of trolley
Telescopic hydraulic feet
4 Speed gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Raingun
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Winding handle
Speed equalizer
Tachometer
Pressure gauge (glycerine bath)
Mechanical lifting of drawbar
Safety guards
2 wheels mod. 10.0/75-15.3 10PR 6F
Hot galvanized chassis and turret
Hot galvanized reel
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
Polyethylene hose made by unadulterated raw material

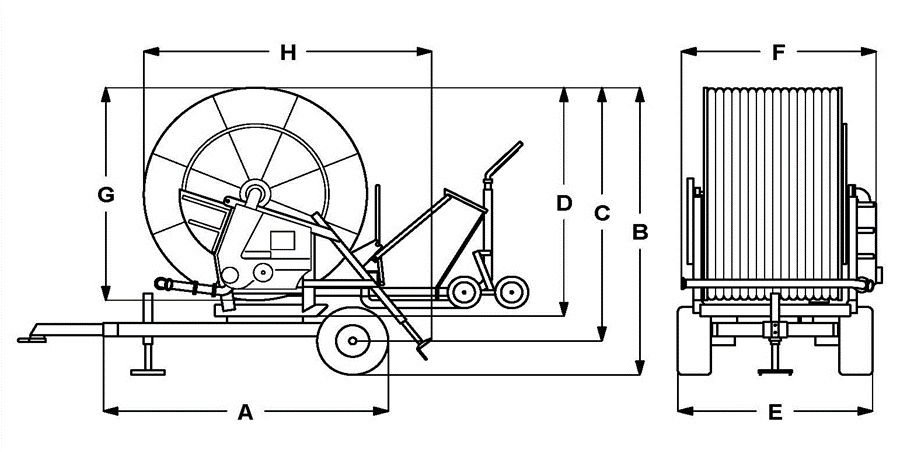

A cm.	B cm.	C cm.	D cm.	E cm.	F cm.	G cm.	H cm.
360	353	318	286	228	225	268	325

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
90	500	REFLEX	24/26/28	C	90R4A500.pdf
90	570	REFLEX	24/26/28	I	90R4A570.pdf
100	400	REFLEX	24/26/28	C	100R4A400.pdf
100	450	REFLEX	26/28/30	A	100R4A450.pdf
100	500	REFLEX	26/28/30	H	100R4A500.pdf
110	300	REFLEX	28/30/32	F	110R4A300.pdf
110	330	REFLEX	28/30/32	G	110R4A330.pdf
110	350	REFLEX	26/28/30	I	110R4A350.pdf
125	250	EXPLORER	32/34/36	A	125R4A250.pdf
