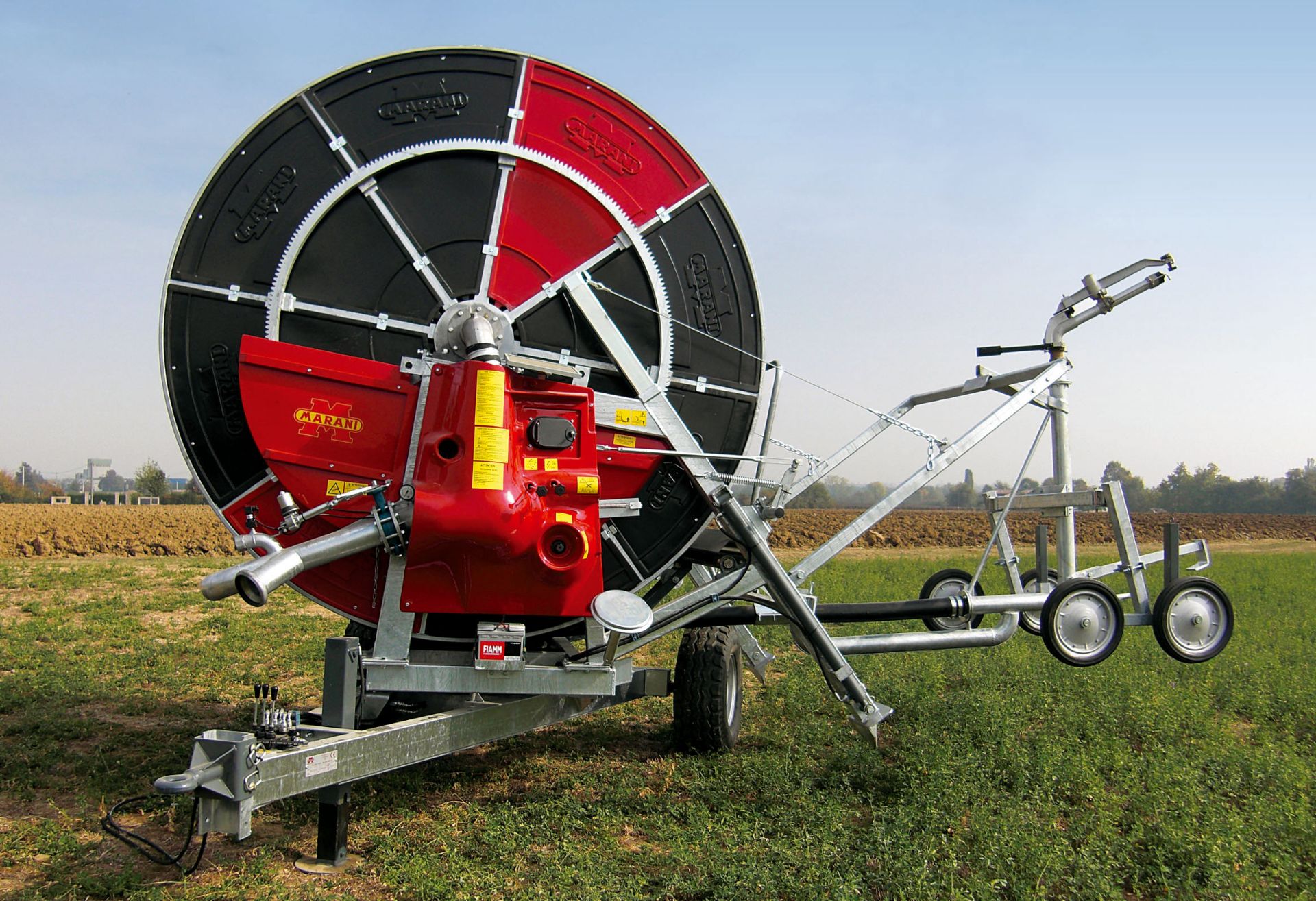

GT060B

Hydraulic lifting device of trolley
Telescopic hydraulic feet
4 Speed gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Raingun
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Winding handle
Speed equalizer
Tachometer
Pressure gauge (glycerine bath)
Mechanical lifting of drawbar
Safety guards
2 wheels mod. 11.5/80-15.3 12PR 6F
Hot galvanized chassis and turret
Hot galvanized reel
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
Polyethylene hose made by unadulterated raw material

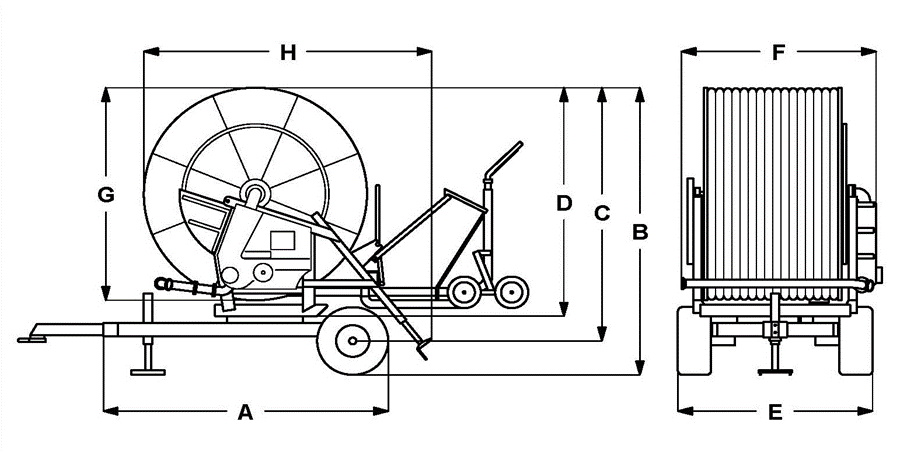

A cm.	B cm.	C cm.	D cm.	E cm.	F cm.	G cm.	H cm.
375	360	331	303	240	247	280	335

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
100	500	REFLEX	26/28/30	J	100R4_1A500.pdf
110	400	REFLEX	28/30/32	G	110R4_1A400.pdf
110	420	REFLEX	28/30/32	H	110R4_1A420.pdf
110	450	REFLEX	28/30/32	J	110R4_1A450.pdf
120	380	EXPLORER	32/34/36	I	120R4_1A380.pdf
125	300	EXPLORER	32/34/36	F	125R4_1A300.pdf
125	350	EXPLORER	32/34/36	H	125R4_1A350.pdf
125	370	EXPLORER	32/34/36	I	125R4_1A370.pdf
140	260	EXPLORER	36/38/40	B	140R4_1A260.pdf
