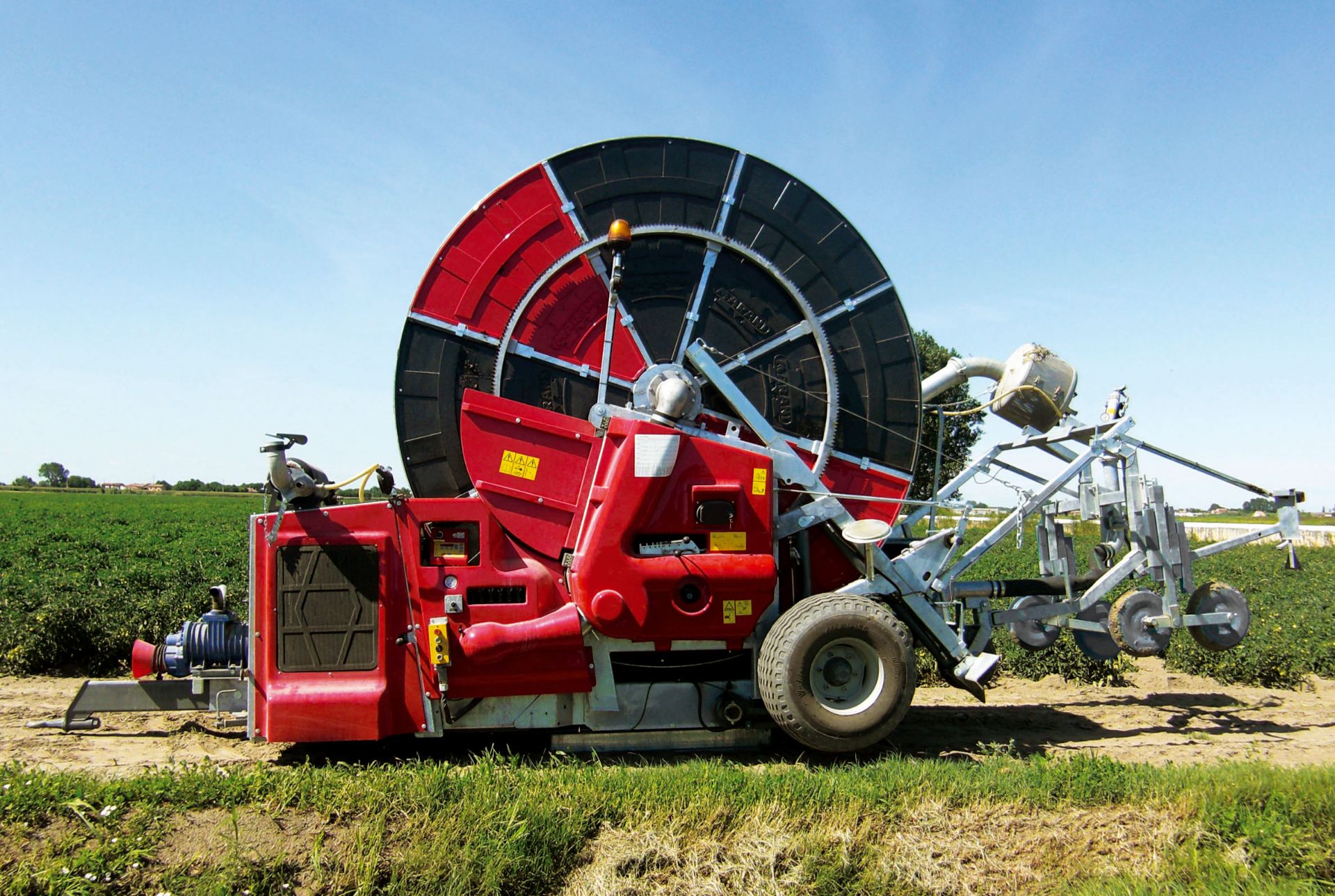

ITS090B/1M

4 wheel chassis
Hydraulic lifting device of trolley
Hydraulic rotation of turntable
Telescopic hydraulic feet
Hydraulic lifting of drawbar
4 synchronized speed gearbox
Power take off
Turbine flanged on the gearbox with double built-in by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Pressure gauge (glycerine bath)
Raingun
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Winding handle
Computer Aqua System
Hose retraction by double chain
Hydraulic system by rapid couplings to tractor
Safety guards
4 wheels 11.5/80-15.3 12PR 6F
Hot galvanized chassis and reel
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
For hose diam. 110-120-125 water inlet Bauer Ø 108
For hose diam. 135-140-150 water inlet Bauer Ø 133
Polyethylene hose made by unadulterated raw material

A cm.	B cm.	C cm.	D cm.	E cm.	F cm.	G cm.	H cm.
503	402	370	347	243	305	317,5	743

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
110	650	REFLEX	22/24/26	I	110VIR8AM650.pdf
110	670	REFLEX	22/24/26	I	110VIR8AM670.pdf
110	700	REFLEX	24/26/28	G	110VIR8AM700.pdf
110	730	REFLEX	24/26/28	F	110VIR8AM730.pdf
120	600	EXPLORER	28/30/32	H	120VIR8AM600.pdf
120	640	EXPLORER	26/28/30	F	120VIR8AM640.pdf
125	550	EXPLORER	32/34/36	I	125VIR8AM550.pdf
125	620	EXPLORER	28/30/32	F	125VIR8AM620.pdf
135	500	EXPLORER	32/34/36	D	135VIR8AM500.pdf
140	400	EXPLORER	34/36/38	F	140VIR8AM400.pdf
140	450	EXPLORER	34/36/38	H	140VIR8AM450.pdf
140	470	EXPLORER	34/36/38	I	140VIR8AM470.pdf
150	370	EXPLORER	36/38/40	F	150VIR8AM370.pdf
