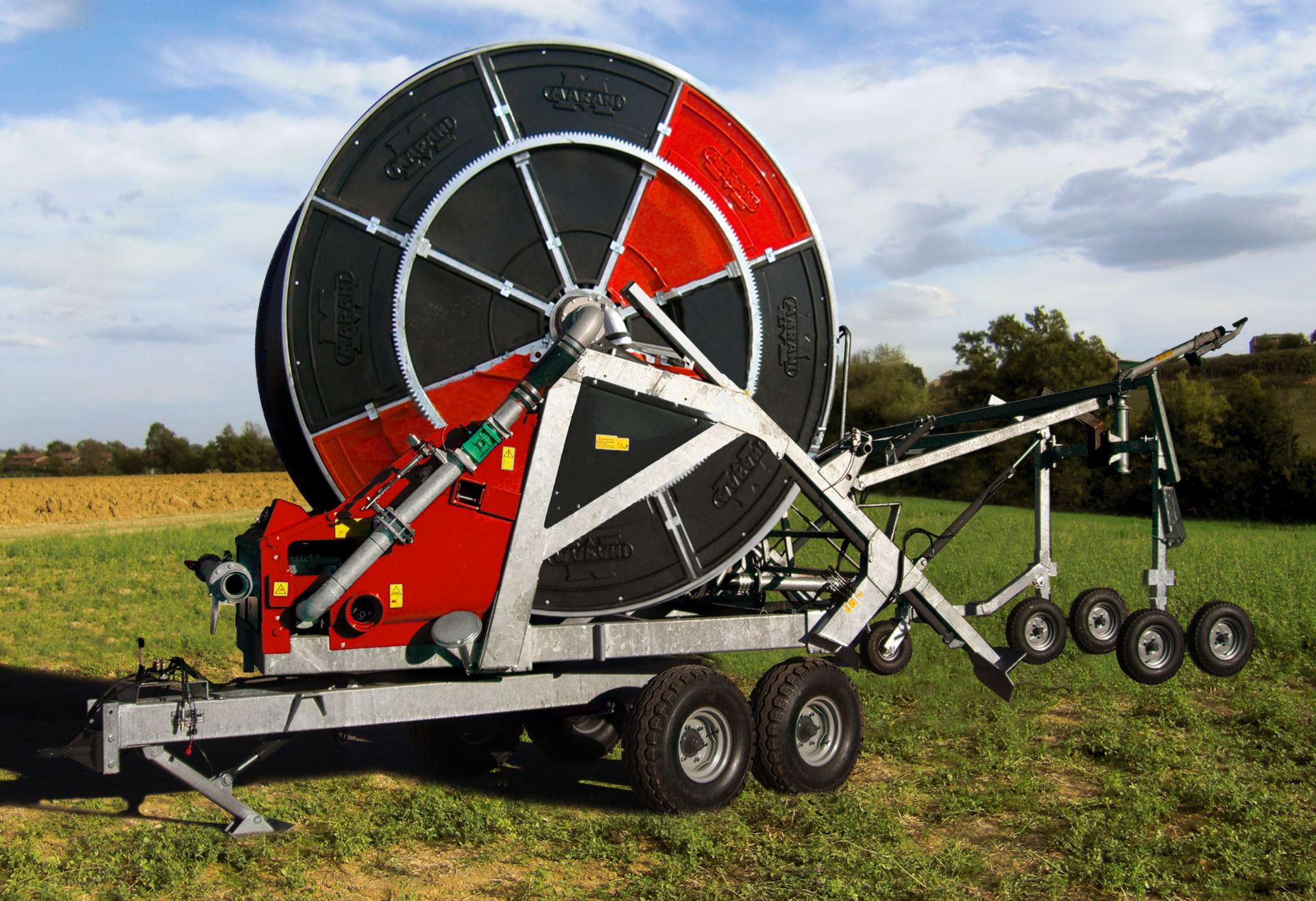

ITS090C

4 wheel chassis
Hydraulic lifting device of trolley
Hydraulic rotation of turntable
Telescopic hydraulic feet
Hydraulic lifting of drawbar
4 synchronized speed gearbox
Power take off
Turbine flanged on the gearbox with double built-in by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Pressure gauge (glycerine bath)
Raingun
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Winding handle
Computer Aqua System
Hose retraction by double chain
Hydraulic system by rapid couplings to tractor
Safety guards
4 wheels 11.5/80-15.3 12PR 6F
Hot galvanized chassis and reel
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
For hose diam. 110-120-125 water inlet Bauer Ø 108
For hose diam. 135-140-150 water inlet Bauer Ø 133
Polyethylene hose made by unadulterated raw material

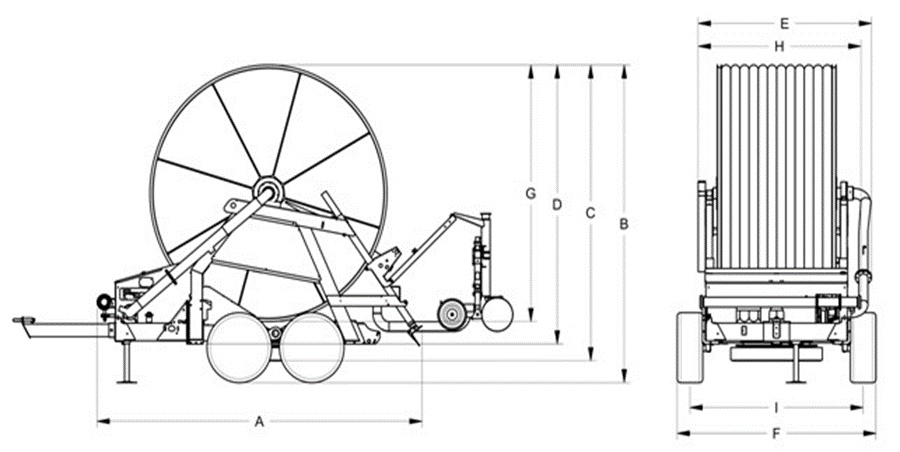

A cm.	B cm.	C cm.	D cm.	E cm.	F cm.	G cm.	H cm.
446	418	386	363	250	305	334	236

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
110	750	REFLEX	24/26/28	E	110VIR8_1A750.pdf
110	810	REFLEX	24/26/28	C	110VIR8_1A810.pdf
110	850	REFLEX	24/26/28	B	110VIR8_1A850.pdf
120	650	EXPLORER	26/28/30	I	120VIR8_1A650.pdf
120	670	EXPLORER	26/28/30	I	120VIR8_1A670.pdf
125	650	EXPLORER	28/30/32	I	125VIR8_1A650.pdf
135	520	EXPLORER	32/34/36	A	135VIR8_1A520.pdf
135	600	EXPLORER	32/34/36	J	135VIR8_1A600.pdf
140	500	EXPLORER	34/36/38	B	140VIR8_1A500.pdf
150	400	EXPLORER	36/38/40	J	150VIR8_1A400.pdf
150	460	EXPLORER	36/38/40	B	150VIR8_1A460.pdf
