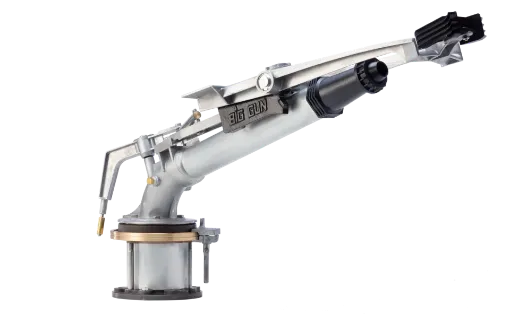

150 Series Big Gun® From Nelson Irrigation-IrriFinder

PERFORMANCE

Flow: 90-630 gpm (20-143 m3hr)

Pressure: 50-120 psi (3.5-8.25 bar)

Radius: 120-240 ft (36-73 m)

Trajectory: 21°, 24°, 27°, 43°, 15-45°

FEATURES

The 150 Series sprinklers have larger nozzle sizes that allow for wider sprinkler spacing in industrial and solid set applications, and wider row spacing in traveler applications.

The 150 Series is available with the widest range of options and accessories in the industry. Full or Part Circle models, multiple trajectories (including an adjustable model), three different nozzle styles, special coatings and effluent options - we have a unique solution for any application.

Connections: Flanged / Threaded Adapters

Nozzles: Taper Bore / Taper Ring / Ring

Options: Anodized / Anodized & Powder Coated / Stainless Steel / Effluent Bearing Assembly / Vaneless Range Tube

Accessories: Counterbalance Kit / 12° Wedge Kit / Arc Timer

Full Circle F150

Full-circle operation, ideal for solid set irrigation and industrial applications.

Part Circle SR150

Part-circle operation for the ultimate traveling sprinkler or field edge.

Adjustable Trajectory SRA150

Part-circle operation with adjustable trajectory from 15-45° for industrial applications.
