P85AS Brass Impact Sprinkler from Nelson Irrigation-IrriFinder

PERFORMANCE

Flow: 20-60 gpm (4.5-13.6 m3hr)

Pressure: 30-60 psi (2.1-4.1 bar)

Radius: 50-80 ft (15-24 m)

FEATURES

This low angle, part circle pivot end gun sprinkler has been designed to meet the demanding conditions of pivot end gun operation where the flow rate and distance of throw required is less than that of Big Gun® Sprinklers. An optional diffuser is available for low pressure systems. It is also common to use two P85AS on the end of pivot to achieve the target application rate.

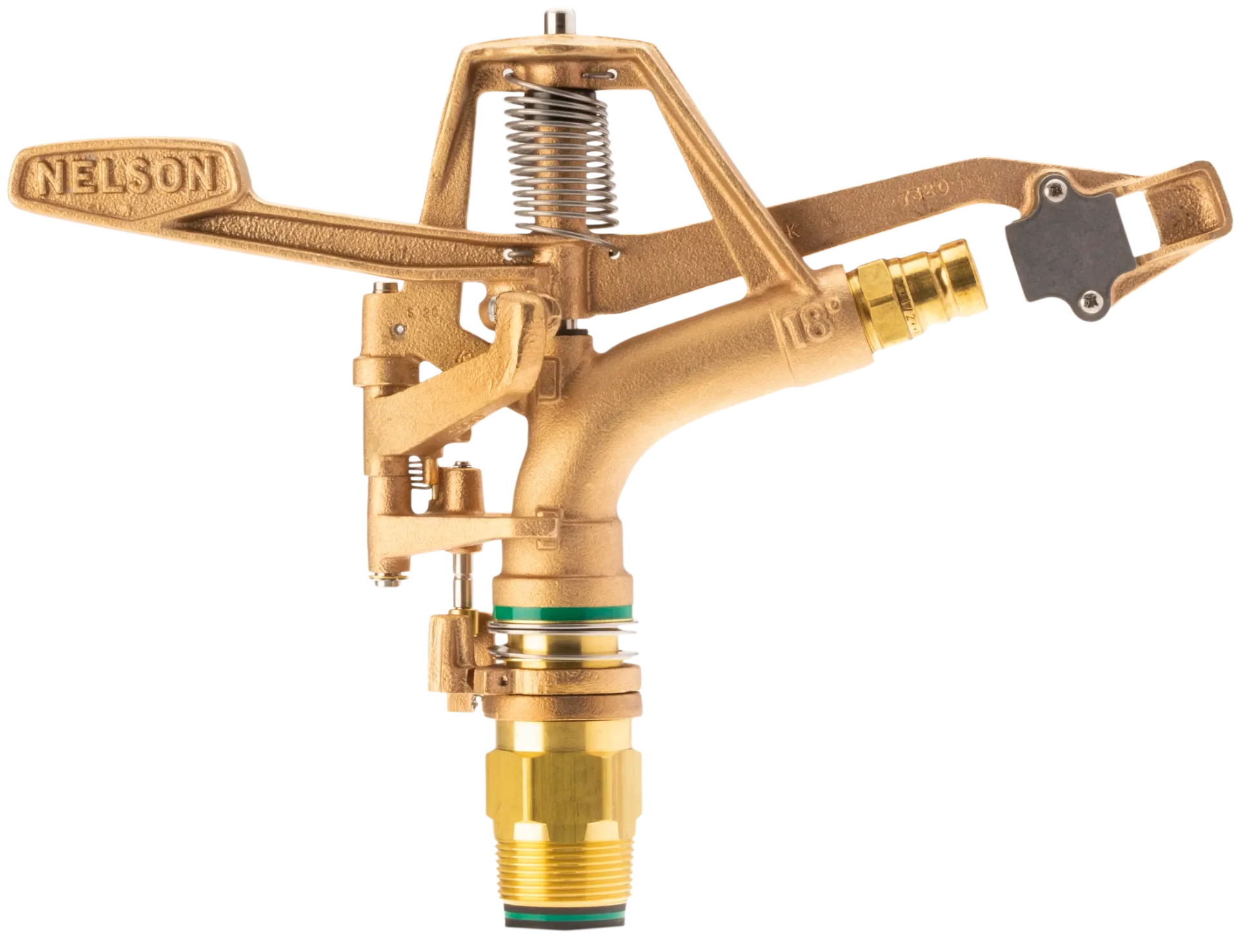

P85AS 1 1/4" Part-Circle Impact

18° trajectory, single nozzle, 1.25" NPT or BSP, for end-of-pivot applications.

Flow: 15-133 gpm (3-30 m³/hr)

Pressure: 20-100 psi (1.5-7 bar)

Radius: 50-100 ft (15-30 m)

P85A 1 1/4" Part-Circle Impact

Same as P85AS, except with optional secondary nozzle to improve uniformity.

P85 1 1/4" Part-Circle Impact

24° trajectory, optional secondary nozzle, 1.25" NPT or BSP, for solid set applications.

Flow: 20-116 gpm (4.5-26 m³/hr)

Pressure: 40-100 psi (3-7 bar)

Radius: 70-120 ft (21-36 m)
