Sprayhead

Germinate, Irrigate, Chemigate

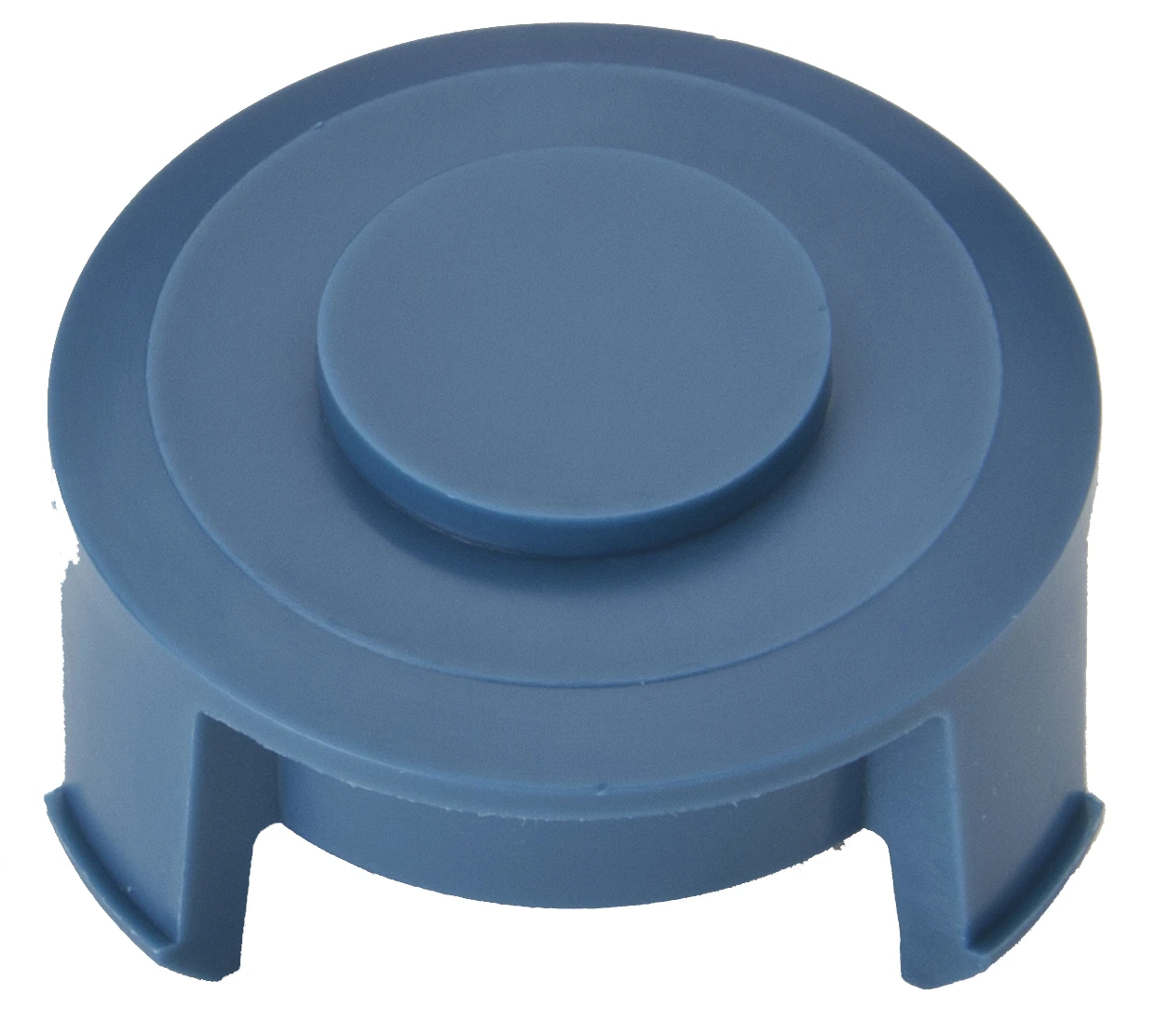

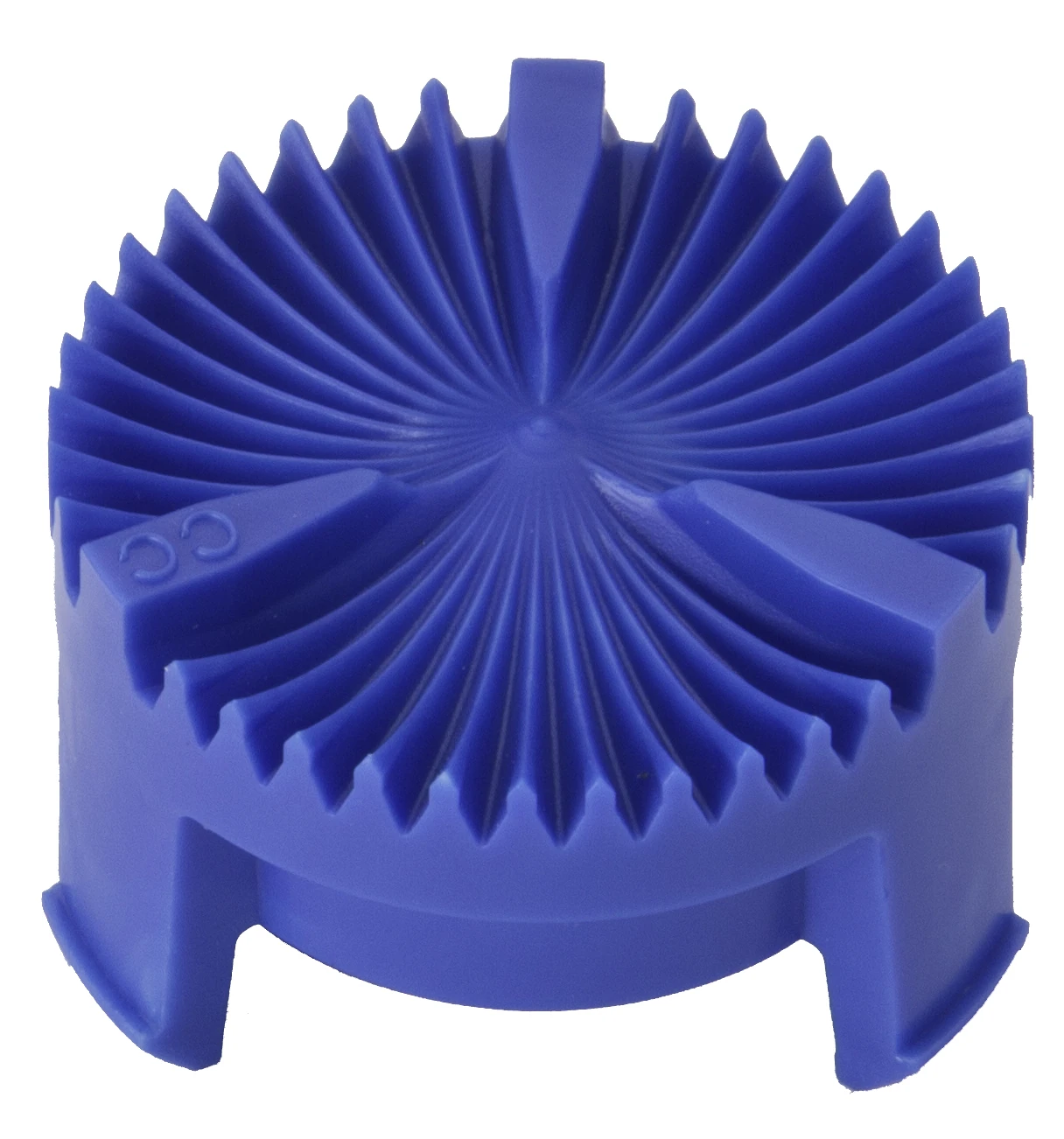

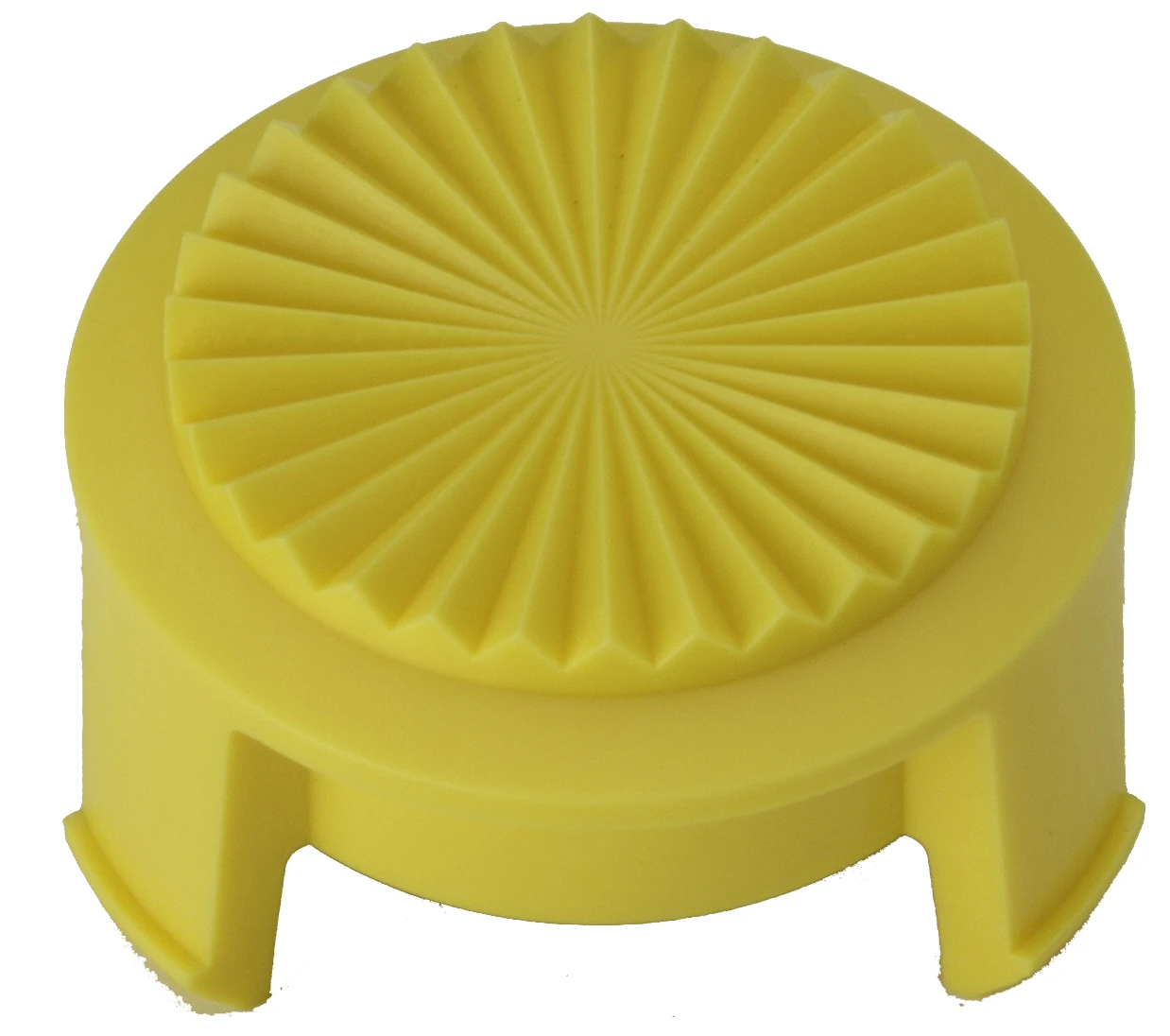

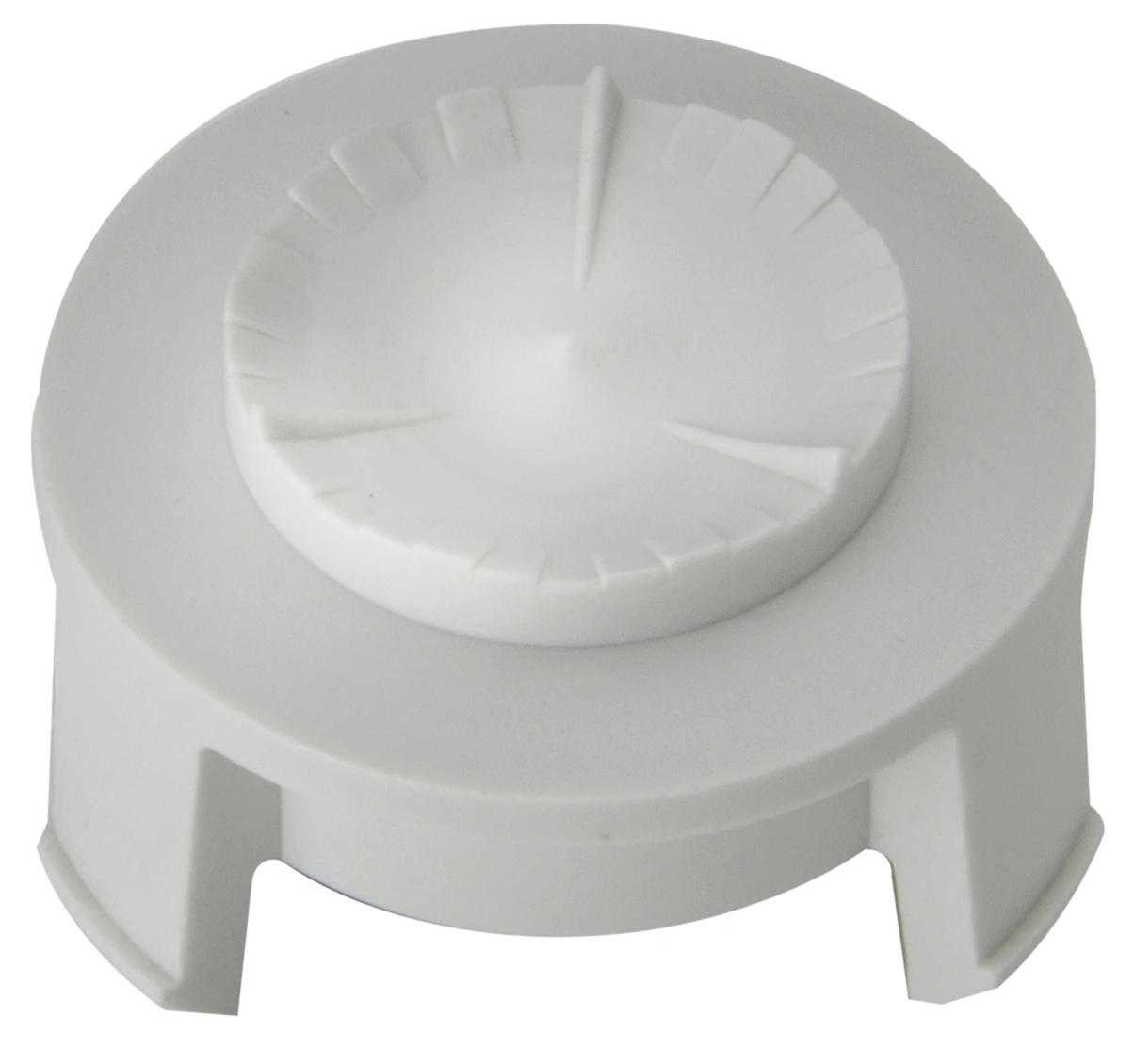

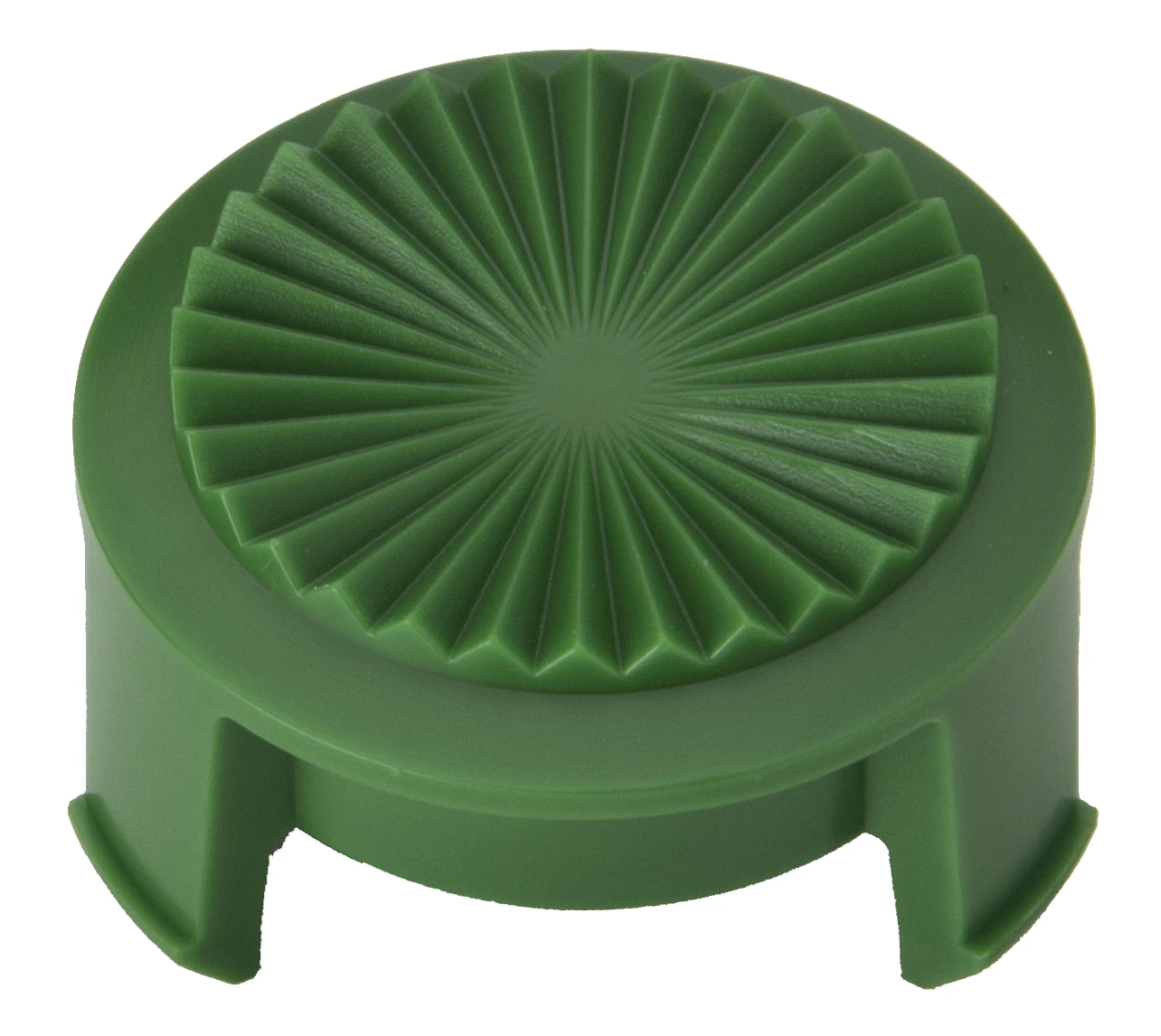

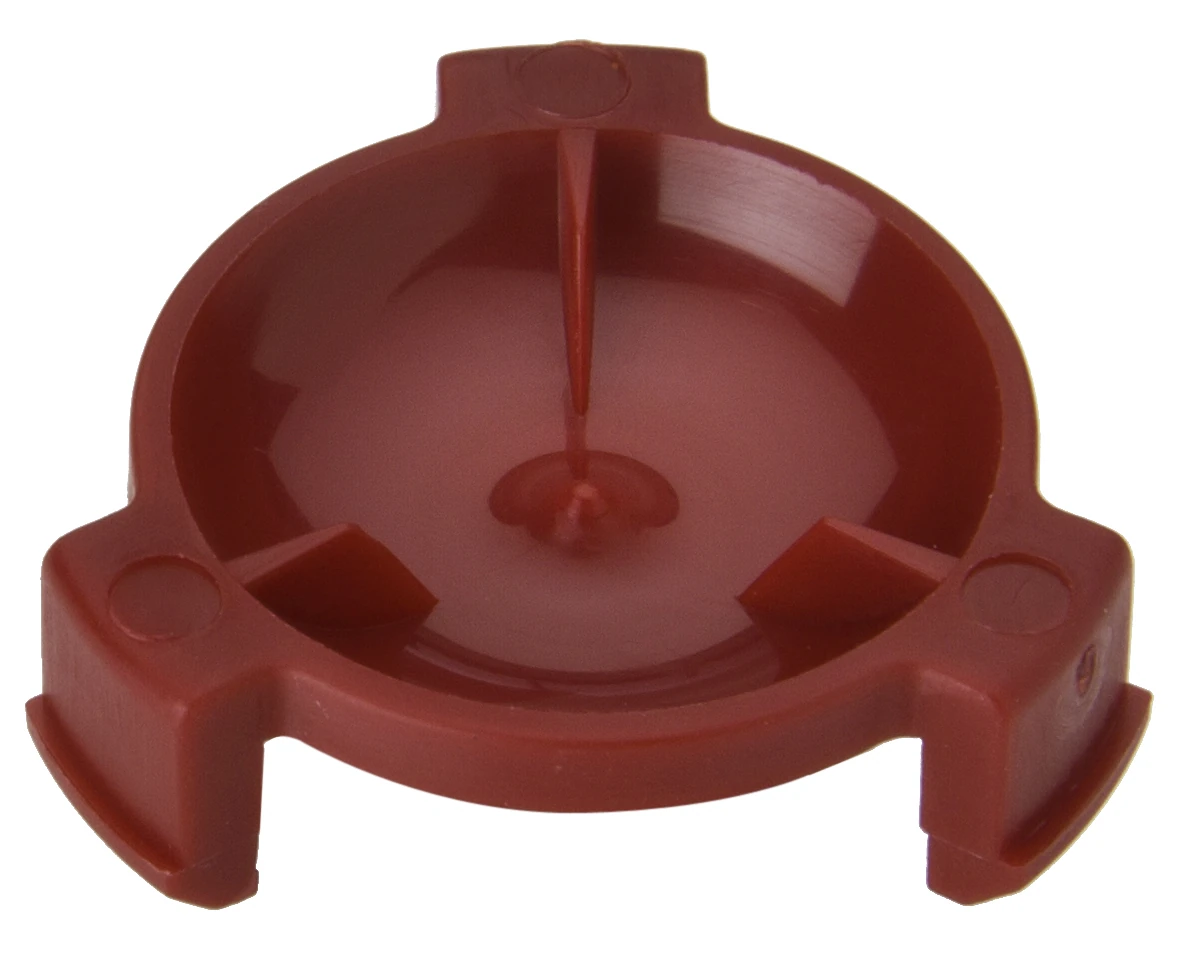

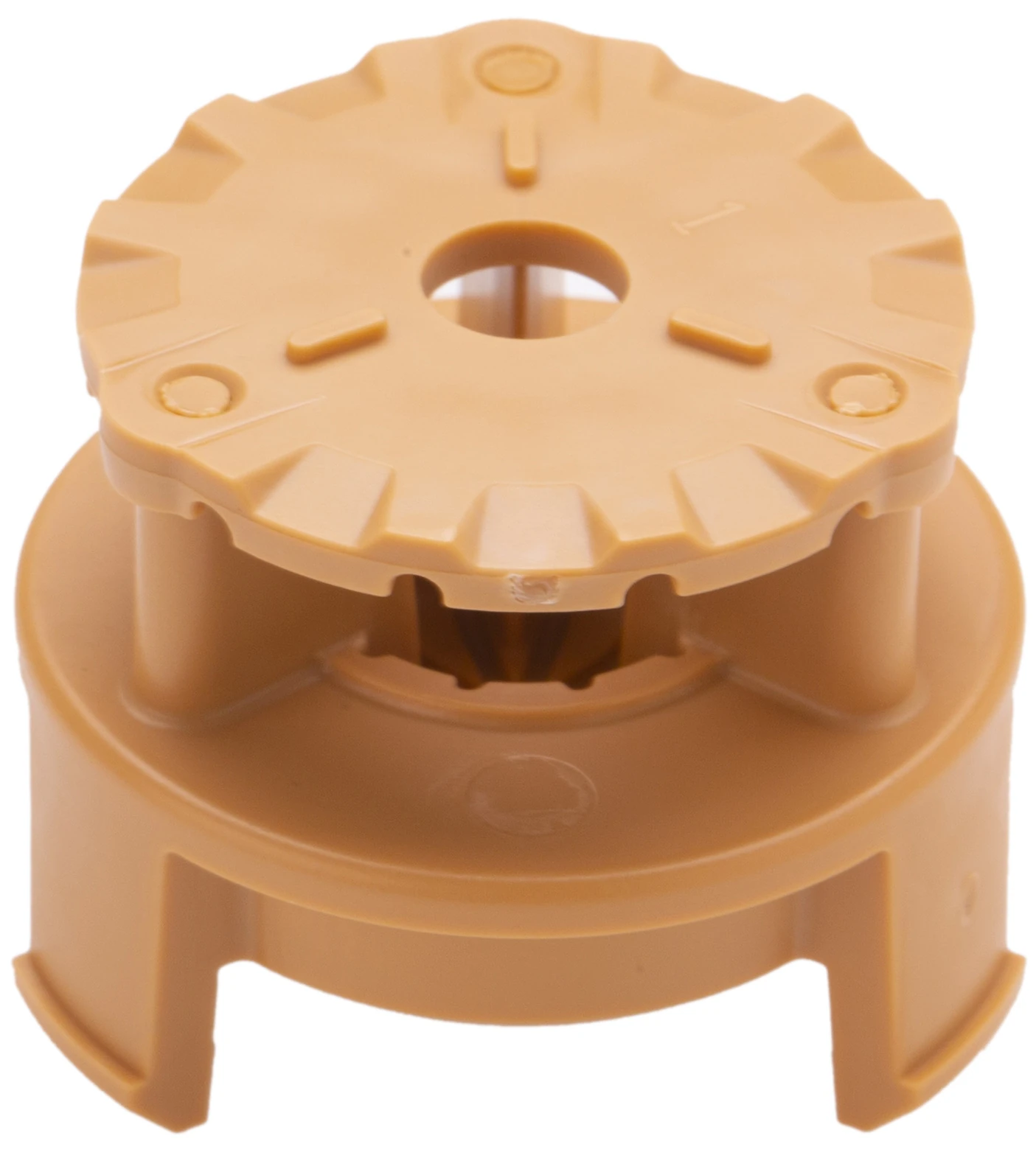

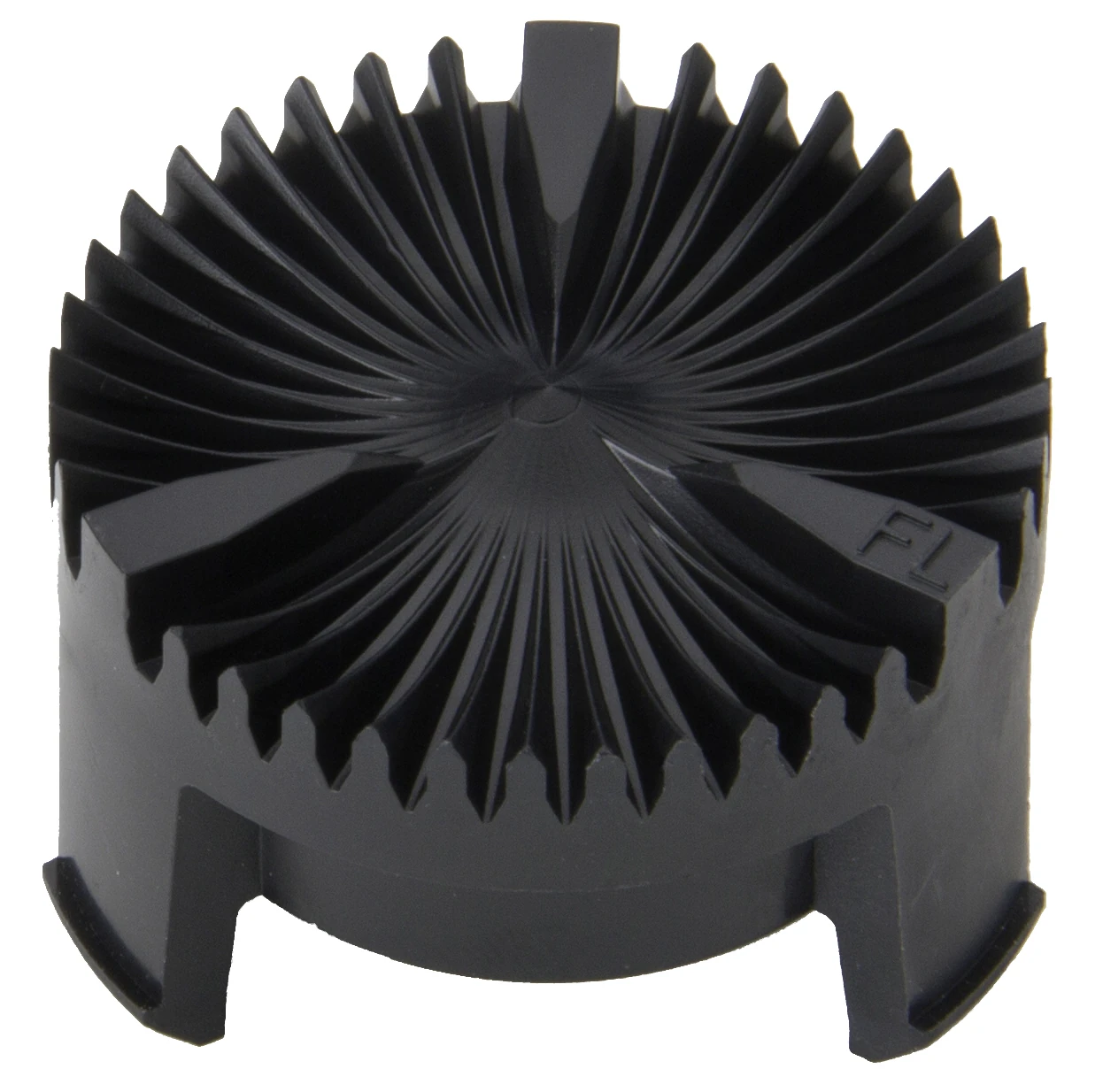

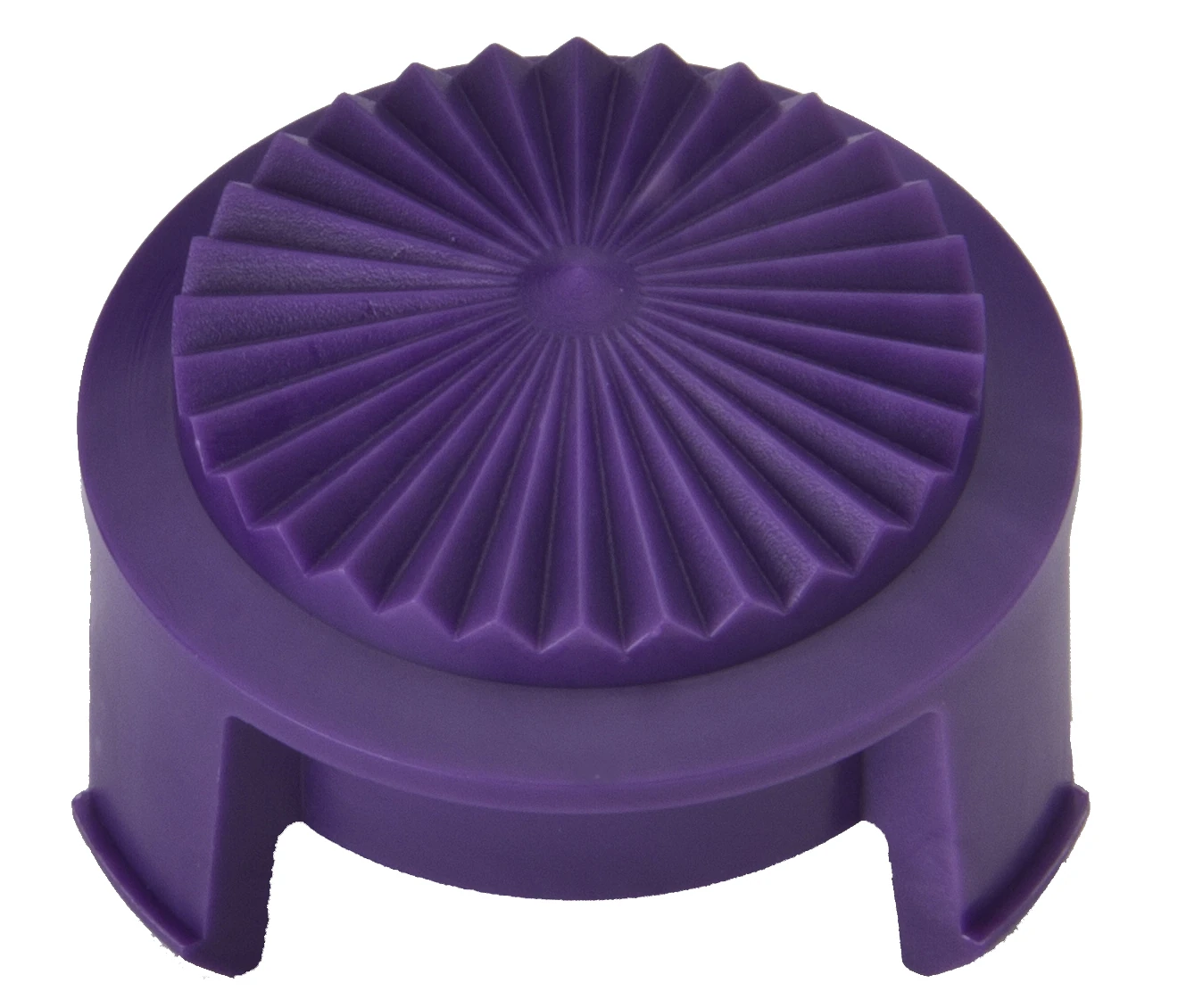

The flip-over dual spray cap allows easy conversion of the spray pattern. Choose from spray plate options to germinate, irrigate, and chemigate.

Low Energy Down in the Crop

The sleek, crop-guarded body design provides durability for dragging the sprinkler down in tall growing crops like corn.

Optional LEPA Accessories

The hose drag adapter allows simple conversion of the Sprayhead to a hose drag system. Both the D3000 and D3030 have "bubble" modes for LEPA. D3000 requires bubble clip.

Press, Spin, Click

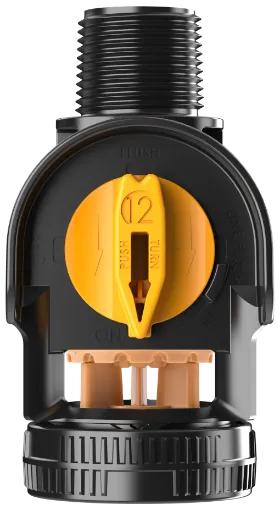

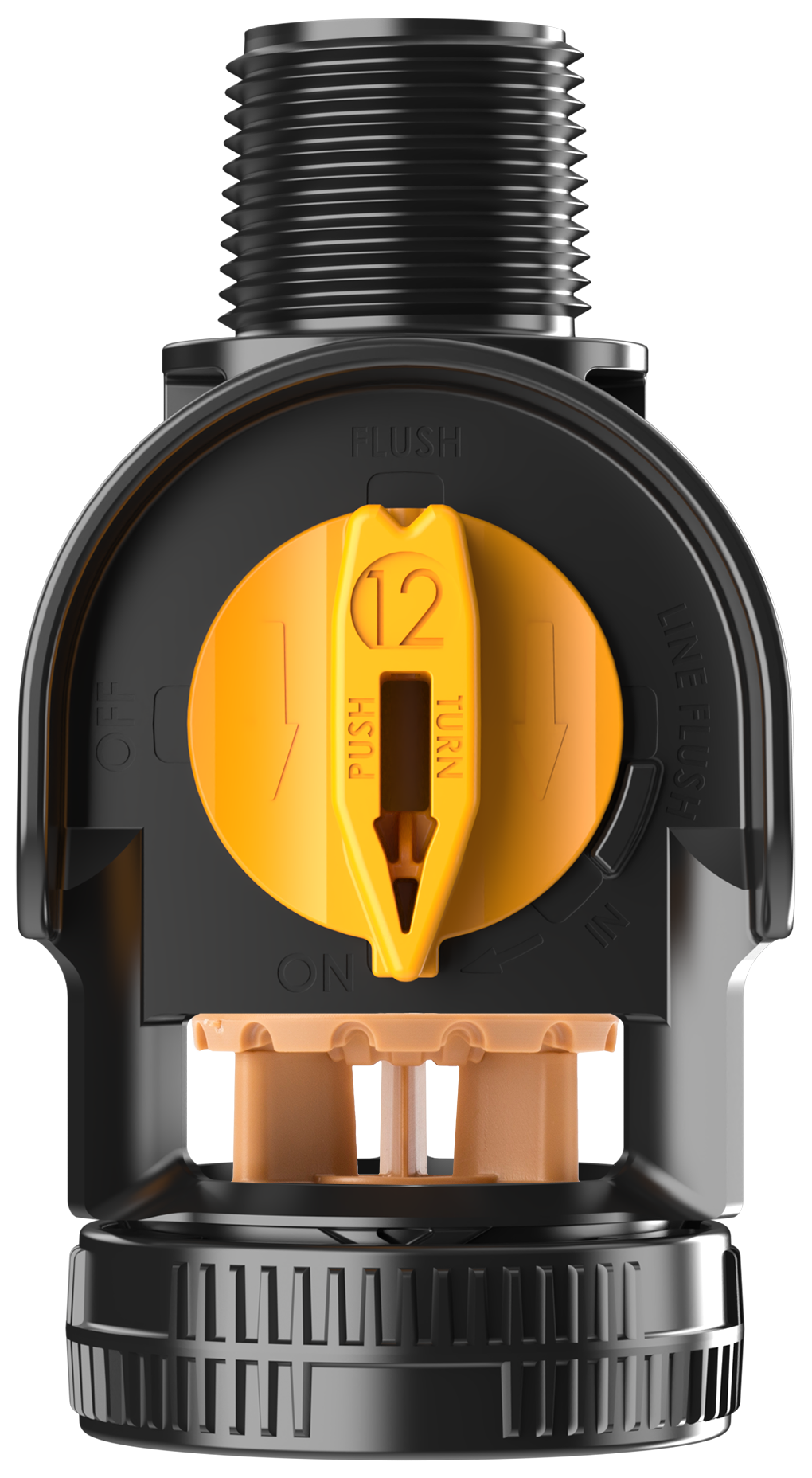

At the heart of the 3030 Series is the new 3NV Nozzle. This innovative dial-nozzle combines multiple functions - nozzle flush, line flush, shutoff - all without removing the nozzle.

• Prevent Overwatering: Use the integrated shutoff to selectively turn off sprinklers, especially in the first span. Eliminates the need for a ball valve on every sprinkler.
• Superior Flushing: a quick and simple turn of the nozzle is all it takes to clean plugged sprinklers.
• Save Labor: 3NV systems are easier to install and maintain.
• Integrated: The modular design works with existing 3000 Series cap, plate, fittings, and regulators. You simply need a new nozzle and body to get the full benefits of the 3030 Series.

3030 Modularity

The D3030 platform is shared with the Accelerator A3030. This means you can quickly and easily switch between spray and accelerator plates - germinate/chemigate with the Accelerator for improved uniformity, then switch to the bubble-wide as the crop matures.

The A/D3030 body is available in either square thread (#12346) or 3/4" MPNT (#13257) connection.

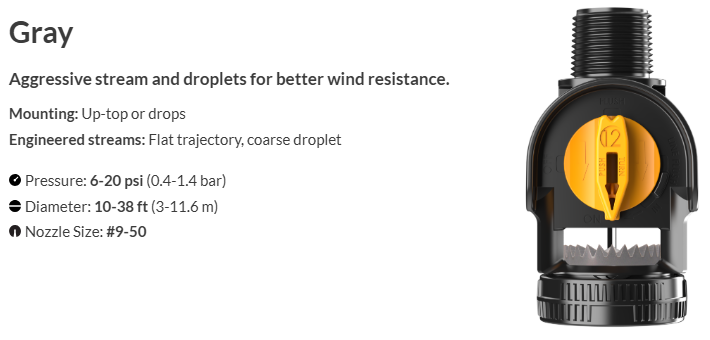

Note: for optimum performance in most applications, do not exceed 20 psi (1.4 bar). As pressure increases above this limit, excessive misting and wind drift will occur that is not generally acceptable. Throw diameter ranges shown are at 3' (0.9 m) mounting height.
