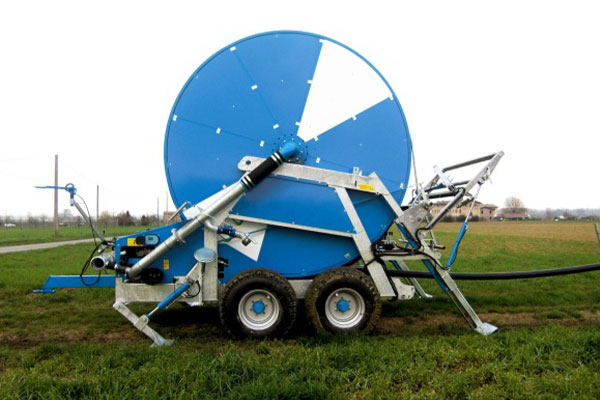

FV9

4 wheel chassis
Hydraulic lifting device of trolley
Telescopic hydraulic feet
Hydraulic lifting of drawbar
4 speed VR gearbox
Power take off
Turbine flanged on the gearbox with double built-in by-pass
Flexible connection pipe
Raingun
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Galvanized raingun trolley mounted on variable track wheels
for laying down the hose on the tractor wheel track with automatic gun-cart stabilizer leg
Pressure gauge (glycerine bath)
Winding handle
Computer Aqua System
Solar panel
Hose retraction by double chain
Hydraulic system by rapid couplings to tractor
Hydraulic lateral reverse pull
Safety guards
4 wheels 15.0/70-18 148A8 14PR 6F
Double stabilizer legs mounted on drawbar for secure anchoring during working phase
Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
Water inlet with Bauer 133
Polyethylene hose made by unadulterated raw material

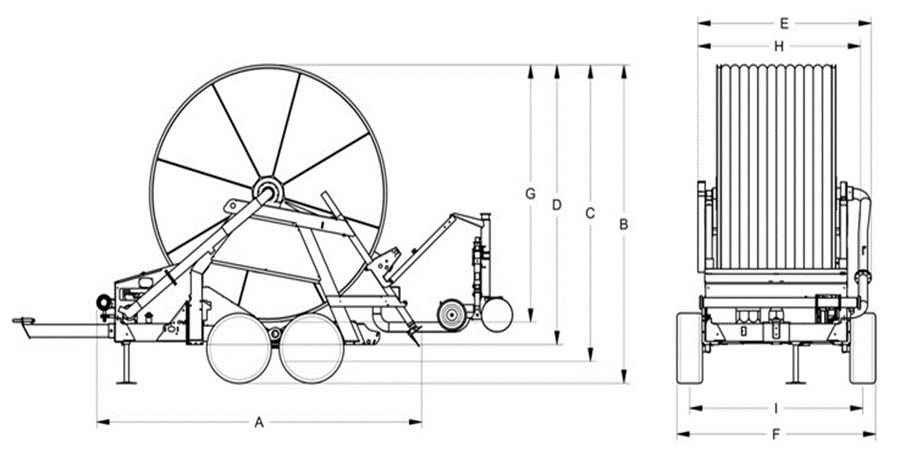

A cm.	B cm.	C cm.	D cm.	E cm.	F cm.	G cm.	H cm.	I cm.
505	428	\	378	265	\	345	250	min 260 - max 275

HOSE DIAMETER	HOSE LENGTH	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
110	800	REFLEX	26/28/30	E	110FV9800.pdf
110	850	REFLEX	26/28/30	C	110FV9850.pdf
125	650	EXPLORER	30/32/34	H	125FV9650.pdf
125	680	EXPLORER	28/30/32	J	125FV9680.pdf
135	550	EXPLORER	34/36/38	A	135FV9550.pdf
140	500	EXPLORER	34/36/38	C	140FV9500.pdf
140	530	EXPLORER	34/36/38	B	140FV9530.pdf
