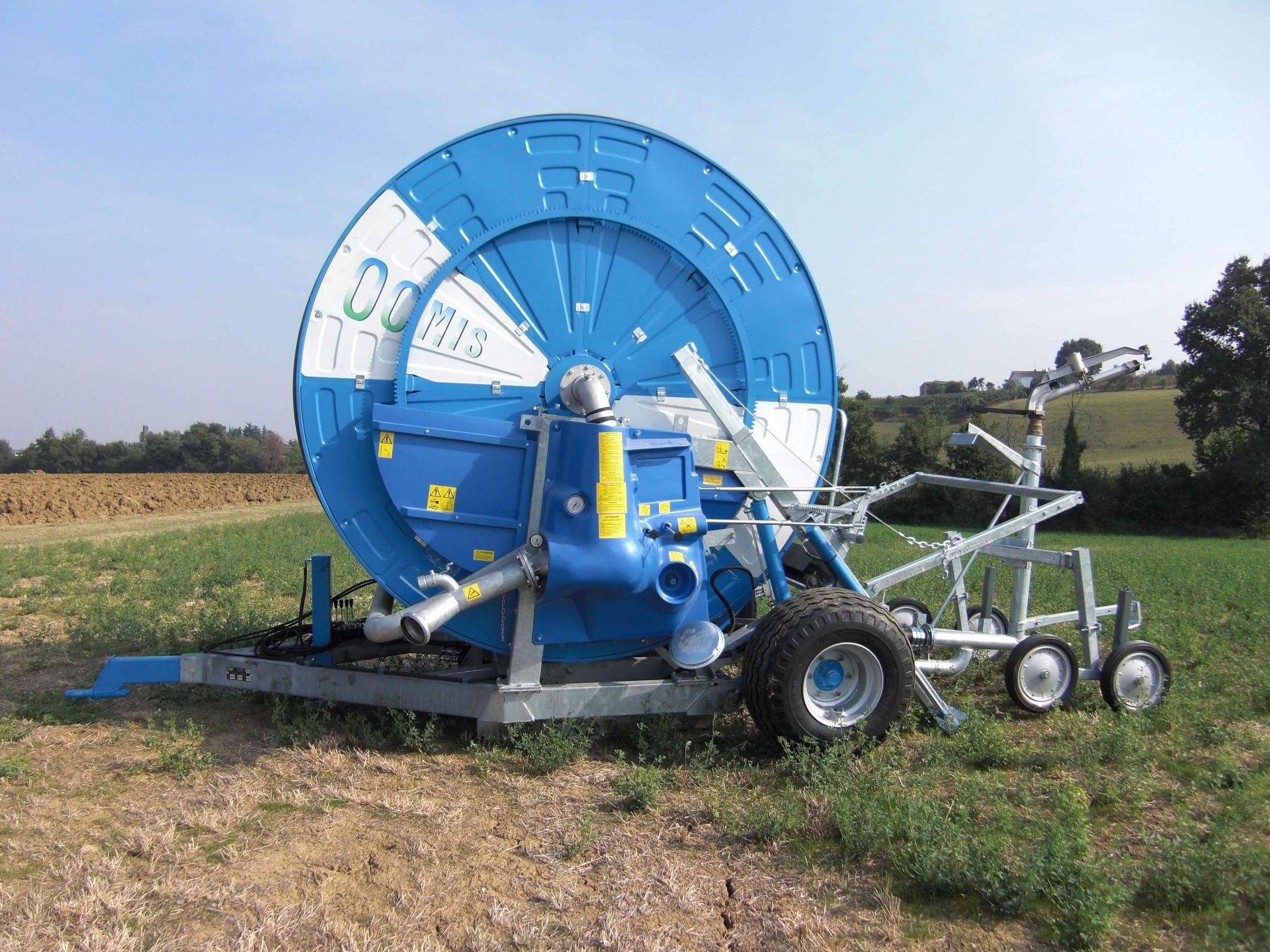

IR2A

Hydraulic lifting device of trolley
Hydraulic rotation of turntable
Hydraulic lifting of drawbar
Telescopic hydraulic feet
4 Speed gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Raingun
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Pressure gauge (glycerine bath)
Winding handle
Speed equalizer
Tachometer
Hydraulic system by rapid couplings to tractor
Safety guards
Wheels 11.5/80 – 15.3 12PR 6F
Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
Polyethylene hose made from unadulteratet raw material

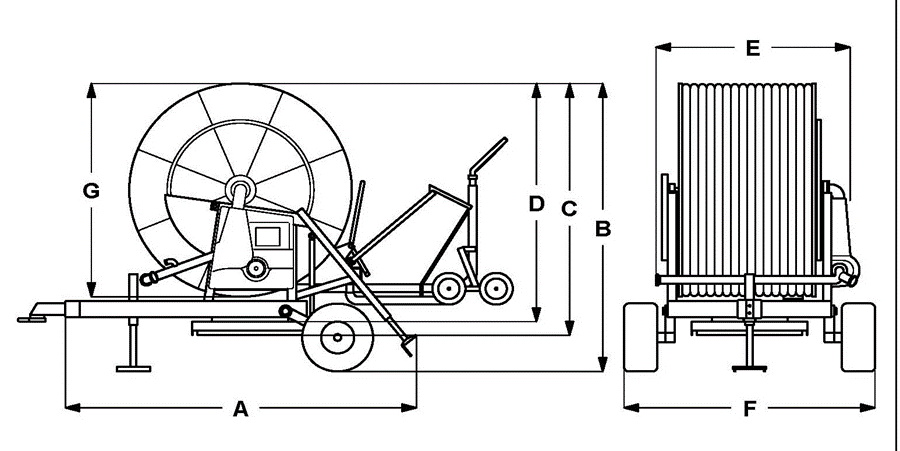

A cm.	B cm.	C cm.	D cm.	E cm.	F cm.	G cm.
338	338	310	290	220	255	268

HOSE DIAMETER	HOSE LENGTH	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
90	500	REFLEX	24/26/28	C	90IR2A500.pdf
100	400	REFLEX	24/26/28	J	100IR2A400.pdf
100	450	REFLEX	24/26/28	A	100IR2A450.pdf
100	500	REFLEX	24/26/28	H	100IR2A500.pdf
110	300	REFLEX	28/30/32	F	110IR2A300.pdf
110	330	REFLEX	28/30/32	G	110IR2A330.pdf
110	350	REFLEX	26/28/30	H	110IR2A350.pdf
125	250	EXPLORER	32/34/36	A	125IR2A250.pdf
