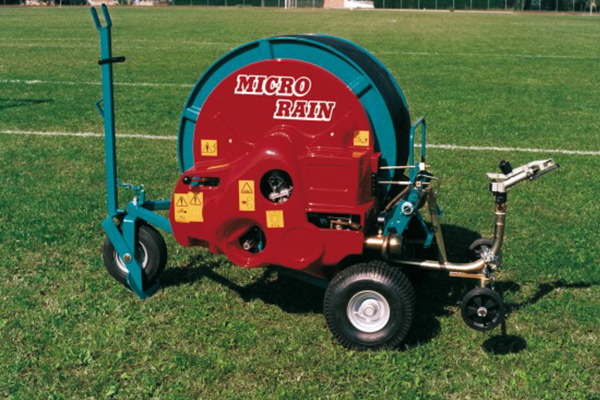

MR | Ocmis Irrigazione-IrriFinder

Turbine flanged on the gearbox with external by-pass
Gearbox
Hose-guide system
Galvanized raingun trolley
Raingun
Set of nozzles K1-23-000 raingun from Ø 8 to Ø 10
Pressure gauge
Power-take-off for fast retraction
Flexible connection pipe
Safety guards
1 front wheel mod. 13.5.00 x 6" - 2 rear wheels mod. 15.6.00 x 6" 4F
Machine coated by epoxy resin and painted with polyurethane paints
Polyethylene hose made from unadulterated raw material

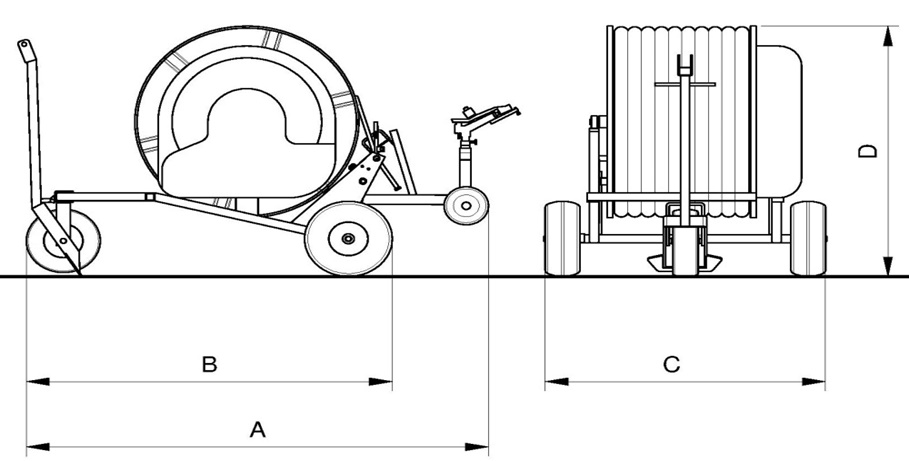

A cm.	A cm.	A cm.	A cm.
195	150	128	126

HOSE DIAMETER	HOSE LENGTH	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
40	130	K1-23-000	9/10/12	A	40MR130.pdf
43	120	K1-23-000	9/10/12	A	43MR120.pdf
