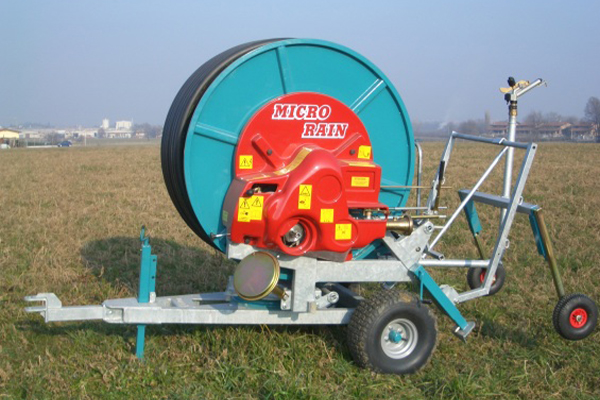

MRR

Turbine flanged on the gearbox with external by-pass
Gearbox
Hose-guide system
Galvanized raingun trolley
Raingun
Set of nozzles K1-23-000 raingun from Ø 8 to Ø 10
Pressure gauge
Power-take-off for fast retraction
Flexible connection pipe
Safety guards
1 front wheel mod. 13.5.00 x 6" - 2 rear wheels mod. 15.6.00 x 6" 4F
Machine coated by epoxy resin and painted with polyurethane paints
Polyethylene hose made from unadulterated raw material

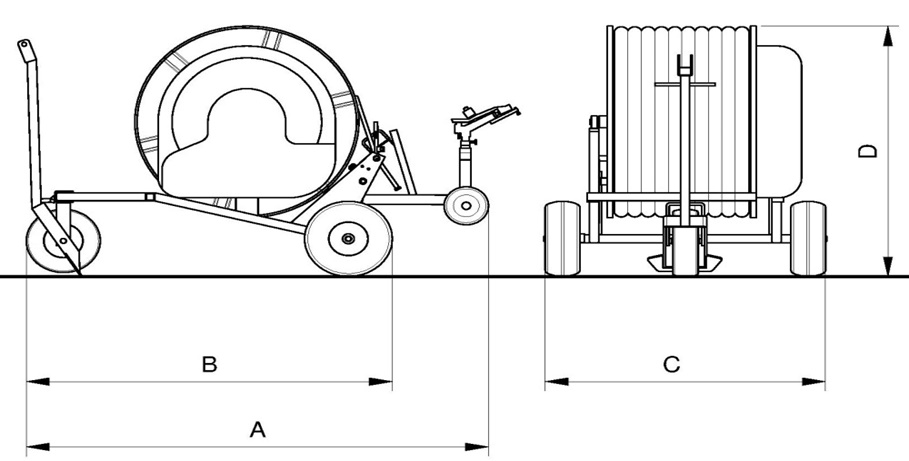

A cm.	B cm.	C cm.	D cm.
330	250	130	192

HOSE DIAMETER	HOSE LENGTH	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
50	230	HYDRA	10/12/14	C	50MRR230.pdf
58	200	HYDRA	12/14/16	C	58MRR200.pdf
63	150	HYDRA	14/16/18	I	63MRR150.pdf
