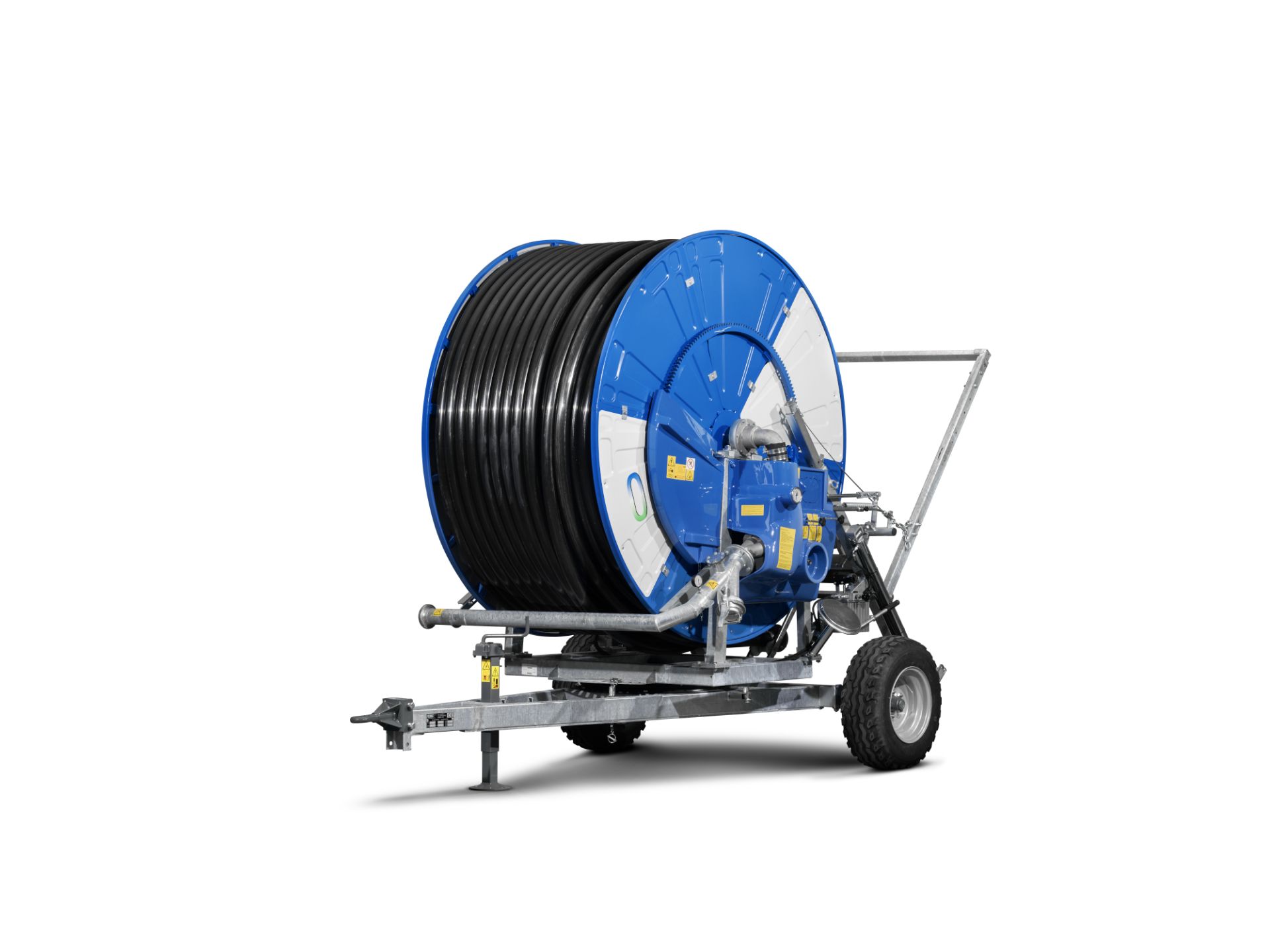

    R2/1A

    Manufacturer: Ocmis

    The best-sellers of our range.

    Robust, high-performing irrigators with low running and maintenance costs. Appreciated and used by agriculturalists the world over for their versatility and user-friendliness.

    The Turbo Speed system reduces turbine load loss and, at the same time, gives access to a range of machine speeds even with very low flows and inlet pressures. Ocmis innovation is there for all to see.

    *
    • Trolley lifting, hydraulic feet with pump
    • Telescopic mechanical feet
    • 6 Speed gearbox
    • Power take off
    • Turbine flanged on the gearbox with built-in by-pass
    • Flexible connection pipe
    • Galvanized raingun trolley mounted on variable track wheels
    • Raingun
    • Set of nozzles ROYAL raingun from Ø 16 to Ø 22
    • Set of nozzles REFLEX raingun from Ø 24 to Ø 32
    • Pressure gauge (glycerine bath)
    • Winding handle
    • Tachometer
    • Safety guards
    • 2 wheels mod. 10.080.12 8PR 5F
    • Hot galvanized chassis and turret
    • Reel coated by epoxy resin and painted with polyurethane paint
    • Safety guards made of steel, swaged galvanized and painted
    • Galvanized double water inlet
    • For hose diam. 75-82-90-100 water inlet Bauer Ø 89
    • Polyethylene hose made from unadulterated raw material



    HOSE DIAMETER HOSE LENGTH RAINGUN NOZZLES END HOSE PERFORMANCE
    75 350 ROYAL 16/18/20 D 75R2_1A350.pdf
    75 400 ROYAL 16/18/20 D 75R2_1A400.pdf
    82 350 ROYAL 18/20/22 E 82R2_1A350.pdf
    82 400 ROYAL 18/20/22 C 82R2_1A400.pdf
    90 280 REFLEX 24/26/28 H 90R2_1A280.pdf
    90 300 REFLEX 24/26/28 I 90R2_1A300.pdf
    90 350 REFLEX 24/26/28 B 90R2_1A350.pdf
    100 275 REFLEX 26/28/30 I 100R2_1A275.pdf
    *
    *
    *
    *
