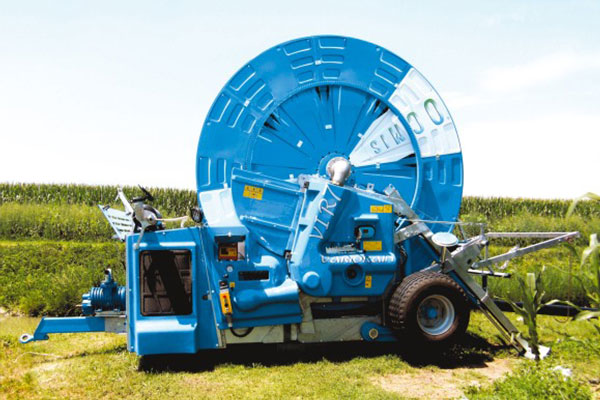

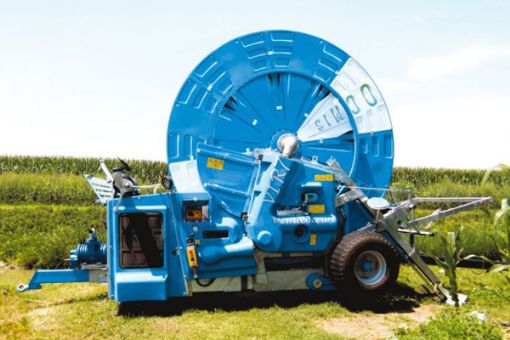

VIR5M

Hydraulic lifting device of trolley
Hydraulic rotation of turntable
Hydraulic lifting of drawbar
Telescopic hydraulic feet
4 speed VR gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Raingun
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Pressure gauge (glycerine bath)
Winding handle
Speed equalizer
Tachometer
Hydraulic system by rapid couplings to tractor
Safety guards
2 wheels 11.5/80-15.3 12PR 6F
Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
For hose diam. 100-110-120-125 water inlet Bauer Ø 108
For hose diam. 135-140 water inlet Bauer Ø 133
Polyethylene hose made from unadulterated raw material

A cm.	B cm.	C cm.	D cm.	E cm.	F cm.	G cm.	H cm.
420	366	330	312	245	280	280	-

HOSE DIAMETER	HOSE LENGTH	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
100	450	REFLEX	26/28/30	G	100VIR5M450.pdf
100	500	REFLEX	26/28/30	I	100VIR5M500.pdf
110	400	REFLEX	28/30/32	G	110VIR5M400.pdf
110	450	REFLEX	28/30/32	I	110VIR5M450.pdf
110	470	REFLEX	28/30/32	J	110VIR5M470.pdf
120	400	EXPLORER	32/34/36	I	120VIR5M400.pdf
125	320	EXPLORER	32/34/36	F	125VIR5M320.pdf
125	350	EXPLORER	32/34/36	H	125VIR5M350.pdf
125	380	EXPLORER	32/34/36	I	125VIR5M380.pdf
135	300	EXPLORER	34/36/38	A	135VIR5M300.pdf
140	290	EXPLORER	34/36/38	A	140VIR5M290.pdf
