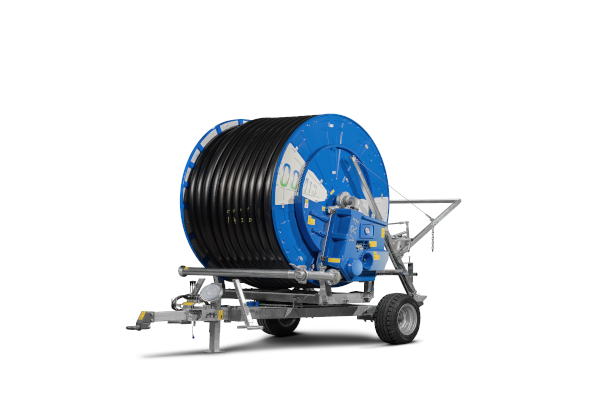

VR4

Hydraulic lifting device of trolley
Telescopic hydraulic feet
3 speed VR gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Raingun
Set of nozzles ROYAL raingun from Ø 16 to Ø 22
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Winding handle
Speed equalizer
Tachometer
Pressure gauge (glycerine bath)
Mechanical lifting of drawbar
Safety guards
2 wheels mod. 10.0/75-15.3 10PR 6F
Hot galvanized chassis and turret
Reel coated by epoxy resin and painted with polyurethane paint
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
For hose diam. 75-82-90-100 water inlet Bauer Ø 89
For hose diam. 110 - 120 water inlet Bauer Ø 108
Polyethylene hose made from unadulterated raw material

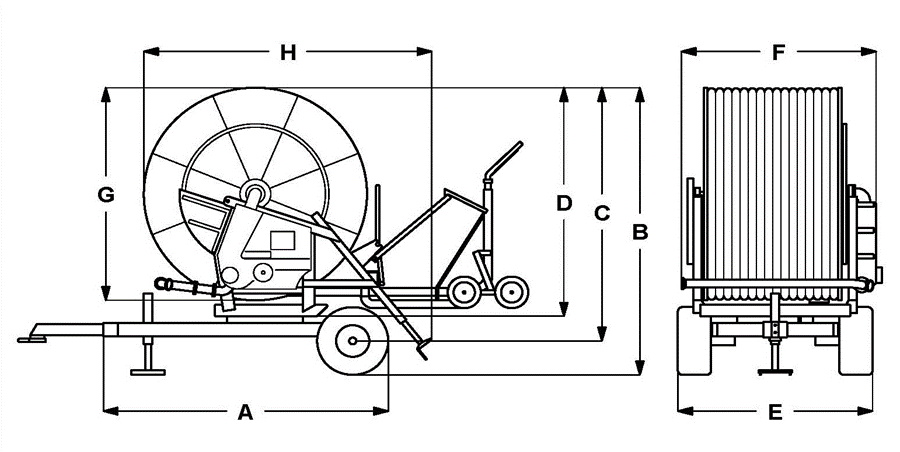

A cm.	B cm.	C cm.	D cm.	E cm.	F cm.	G cm.	H cm.
334	327	289	270	224	232	246	315

HOSE DIAMETER	HOSE LENGTH	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
82	500	ROYAL	16/18/20	J	82VR4500.pdf
90	380	REFLEX	24/26/28	B	90VR4380.pdf
90	400	REFLEX	24/26/28	C	90VR4400.pdf
90	470	REFLEX	24/26/28	D	90VR4470.pdf
90	500	REFLEX	24/26/28	C	90VR4500.pdf
100	340	REFLEX	26/28/30	G	100VR4340.pdf
100	360	REFLEX	26/28/30	H	100VR4360.pdf
100	390	REFLEX	24/26/28	J	100VR4390.pdf
110	300	REFLEX	28/30/32	F	110VR4300.pdf
110	330	REFLEX	28/30/32	H	110VR4330.pdf
110	350	REFLEX	28/30/32	I	110VR4350.pdf
120	270	EXPLORER	32/34/36	A	120VR4270.pdf
