Specifically designed for low water flow rate applications! Thanks to its low body angle, it is perfect for windy areas! Suitable for any type hobby garden and agricultural irrigation applications.


Water Input
:
2" Flange Connection

Working Pressure
:
30 - 70 psi

Water Flow
:
133 - 717 l/min

Shooting Radius
:
19 - 36 m

Free Nozzles
:
12, 14, 16, 18 mm

Body Angle
:
18°

What's inside the box
:

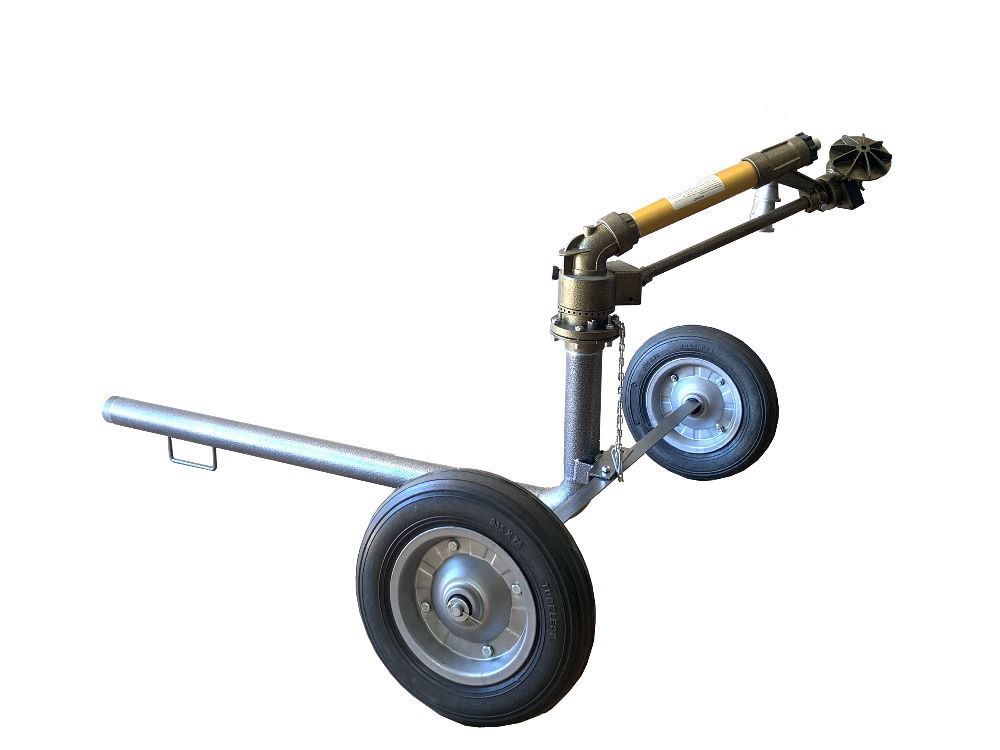

DuCaR Pivot Jet with aluminium nozzles, flange to 2" female threaded adapter and 2" wheeled cart with extendable legs

Made in
:
Turkey
Manufacturer part number: PVTJET-WC20

The DuCaR Pivot Jet is perfect for low to medium water flow rate applications. It has very low body angle to increase the shooting range in windy areas!

Gear drive, medium pressure (2 – 6 bar) and low to mid capacity sprinkler head.

Slow reverse rotation allows it to rotate full and semi circle in the same speed.

Excellent and unique water distribution

Body angle of 18° is quite appropriate for portable or stationary systems at windy areas and at locations which requires irrigation from low level.

Equipped with new type one-hole nozzle. Thus it operates with less water and minimize nozzle clogging problem arising from foul water.

Non-clogging nozzles make it appropriate for use as END-GUN at the portable irrigation machines, carts and pivots.



The DuCaR Pivot Jet sprinkler head comes with 4 pcs of aluminium nozzles, flange to 2" female threaded adapter and 2" wheeled cart with extendable legs.



Technical Specifications
Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
12 0,47 2 30 19 61 133 8 35 1133 0,28 7,1
12 0,47 2,5 37 20 66 162 9,7 43 1256 0,31 7,7
12 0,47 3 44 22 71 177 10,6 47 1451 0,36 7,3
12 0,47 4 56 24 77 203 12,2 54 1734 0,43 7,0
14 0,55 2,5 37 22 71 220 13,2 58 1451 0,36 9,1
14 0,55 3 44 24 77 233 14 62 1734 0,43 8,1
14 0,55 4 56 26 85 270 16,2 71 2122 0,52 7,6
14 0,55 5 70 29 95 305 18,3 81 2640 0,65 6,9
16 0,62 2 29 24 77 242 14,5 64 1734 0,43 8,4
16 0,62 3 44 26 85 297 17,8 78 2122 0,52 8,4
16 0,62 4 56 28 90 342 20,5 90 2375 0,59 8,6
16 0,62 5 70 30 98 387 23,2 102 2826 0,70 8,2
18 0,70 3 44 29 95 375 22,5 99 2640 0,65 8,5
18 0,70 4 56 30 98 438 26,3 116 2826 0,70 9,3
18 0,70 5 70 33 108 470 28,2 124 3215 0,79 8,8
20 0,78 3 44 32 103 445 26,7 118 3155 0,78 8,5
20 0,78 4 56 33 108 537 32,2 142 3419 0,84 9,4
20 0,78 5 70 37 121 592 35,5 156 4298 1,06 8,3
22 0,86 3 44 32 103 557 33,4 147 3155 0,78 10,6
22 0,86 4 56 34 110 642 38,5 170 3523 0,87 10,9
22 0,86 5 70 36 118 717 43 189 4069 1,01 10,6
