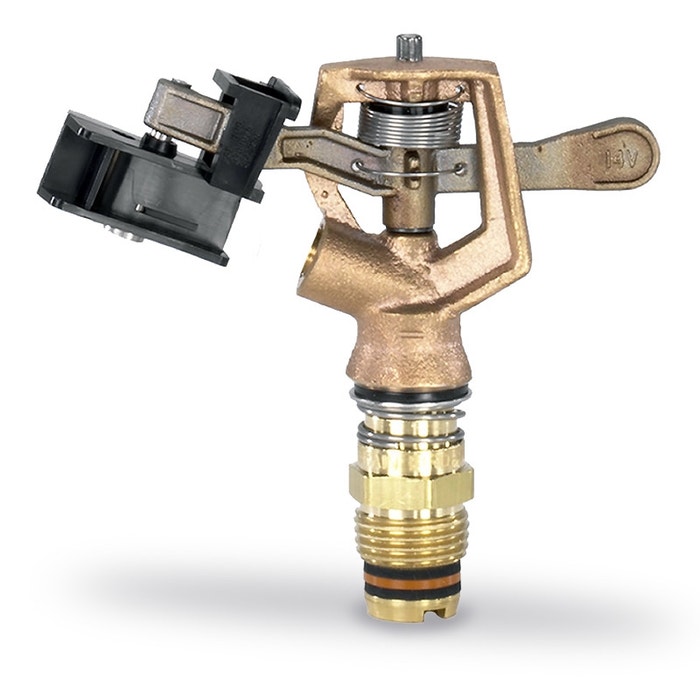

Rain Bird 14VH 1/2 inch brass impact sprinkler-IrriFinder

1/2" male NPT brass inlet
No Nozzle Included. Requires Rain Bird SBN-1 straight bore brass nozzle (sold separately)
Patented, self-flushing wedge drive
Durable brass die-cast arm
Stainless steel springs and fulcrum pin
Chemically resistant washers
Two-year warranty
Wedge drive runs on smaller nozzles and lower pressures
Self-flushing design reduces wear from grit
Corrosion and grit resistant
Built to last

Rain Bird's 14VH 1/2" brass impact sprinklers are used in undertree, overtree, overvine and row crop solid set and permanent systems. Excellent for frost-protection and low pressure irrigation. Patented self-flushing nylon "V" wedge makes it a strong-driving sprinkler, even with the smallest nozzles and lower water pressures.

More Information
Model	14VH
Inlet	1/2 in
Features	Impact Drive
Material	Brass
Inlet Size	1/2 in male
Coverage Arc	Full Circle Only
Features	V Wedge Drive
Specifications	Bearing: 1/2" Male NPT, Brass Trajectory Angle: 23 degrees Operating Range: 20-80 psi(1.4-5.5 bar) Flow Rate: .56-2.68(0.14-0.61 m 3 /h) Radius: 29-39 ft.(8.85-11.90 m)
