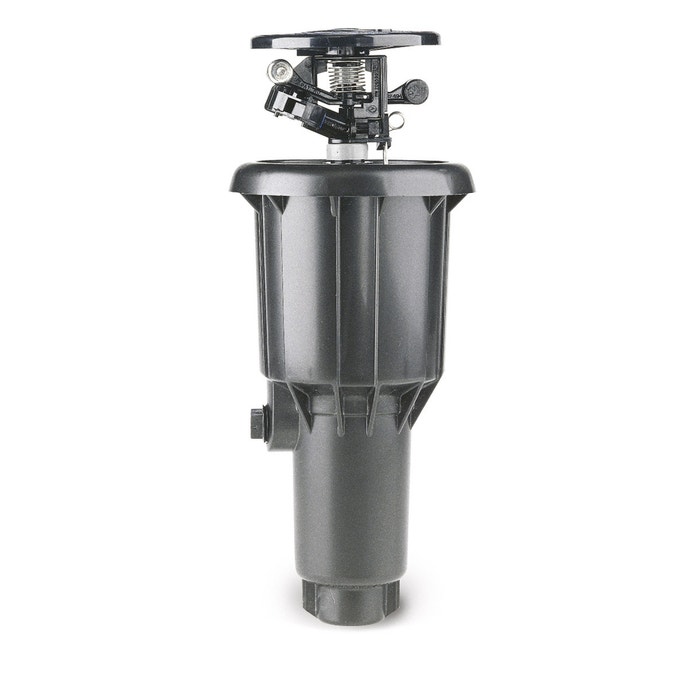

2045A - Maxi-Paw Impact Rotor Pop-Up Sprinklers-IrriFinder

Deluxe Impact Rotor Pop-Up Sprinkler
Proven impact drive
Straight-through flow for superior performance in dirty water
Combination 1/2" or 3/4" bottom inlet and 1/2" NPT side female connections offer more installation flexibility.
Blue #8 nozzle included
Five interchangeable, color-coded MPR nozzles with standard trajectory (sold separately)
Two interchangeable low angle (LA) nozzles (sold separately)
Easy to adjust, easy to service
No tools required to change nozzles
Heavy-duty plastic case with sturdy, reinforced ribbed design
Double-weighted arm for slower rotation and increased distance of throw
Self-flushing inner trip with improved inner trip lever

The Maxi-Paw's powerful throw permits maximum spacing and offers superior close-in watering and uniform water distribution. Low pressure loss and an efficient, straight-through flow design conserve energy and are ideal for dirty water applications. And most important, it's rugged and dependable, popping up on schedule again and again because of the multi-function wiper seal.

Additional features:

Powerful reverse action.
Adjustable arm spring for low-pressure and low-gallonage operation.
Energy efficient, low pressure and low-gallonage operation.
360° Full-circle OR arc adjustable from 20° to 340°.
Precision Jet tube (PJ™) minimizes side splash.
Hooded bearing for longer life.
Distance control diffuser pin.
Multi-function, pressure-activated wiper seal.
Inlet filter screen and pressure-activated wiper seal protect internal assembly from debris to ensure positive pop-up and retraction.
Combination 1/2" NPT (15/21) or 3/4" (20/27) bottom inlet.
Heavy-duty, stainless steel retract spring assures positive sprinkler pop-down.
FP trip for full- or part-circle operation.
Side or combination bottom inlet for design flexibility.
Side inlet installation is not recommended in freezing climates.
Serviceable through the top of the case.
Optional nonpotable cover.

More Information
Model	2045A
Rotor Series	Maxi-Paw / Mini-Paw
Coverage Radius	22-45 ft
Inlet	1/2 or 3/4 in
Features	Impact Drive, SAM Seal-A-Matic Check Valve, Rain Curtain Nozzles, Low Angle Nozzles
Dimensions	Overall height: 9 3/10" (23,6 cm) Pop-up height: 3" (7,6 cm) Exposed surface diameter: 5" (12,7 cm)
Specifications	Precipitation Rate: 0.28 to 1.17 inches per hour (7 to 30 mm/h) Radius: 22 to 45 feet (6,7 to 13,7 m) Radius with Radius Reduction Screw: 18 ft (5,4 m) Pressure: 25 to 60 psi (1,7 to 4,1 Bars) Flow: 1.5 to 8.4 GPM (0,34 to 1,91 m3/h; 0,9 to 0,53 l/s) Combination 1/2" (15/21) or 3/4" (20/27) FPT bottom inlet; 1/2" (15/21) FPT side inlet Nozzles: 06-red; 07-black; 08-blue; 10-yellow; 12-beige Low angle (LA) nozzles: 07 LA-black; 10 LA-yellow Nozzle outlet trajectory is 23° for 06, 07, 08, 10, and 12 nozzles LA nozzle outlet trajectory is 11°
Coverage Arc	40° - 360° Reversing Full and Part-Circle
