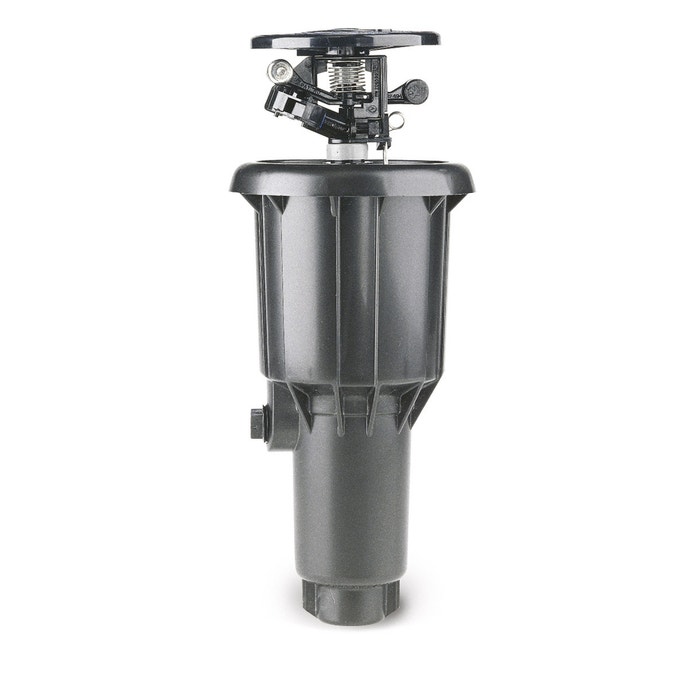

2045ASAM - Maxi-Paw Impact Rotor Pop-Up Sprinklers With SAM-IrriFinder

Deluxe Impact Rotor with Seal-A-Matic
Proven impact drive
Straight-through flow for superior performance in dirty water
Combination 1/2" or 3/4" bottom inlet and 1/2" NPT side female connections offer more installation flexibility.
Blue #8 nozzle included
Five interchangeable, color-coded MPR nozzles with standard trajectory (sold separately)
Two interchangeable low angle (LA) nozzles (sold separately)
Easy to adjust, easy to service
No tools required to change nozzles
Heavy-duty plastic case with sturdy, reinforced ribbed design
Double-weighted arm for slower rotation and increased distance of throw
Self-flushing inner trip with improved inner trip lever

The Maxi-Paw's powerful throw permits maximum spacing and offers superior close-in watering and uniform water distribution. Low pressure loss and an efficient, straight-through flow design conserve energy and are ideal for dirty water applications.

Seal-A-Matic™ prevents run-off, puddling, and erosion caused by low head drainage. And most important, it's rugged and dependable, popping up on schedule again and again because of the multi-function wiper seal.

Additional features:

Powerful reverse action.
Adjustable arm spring for low-pressure and low-gallonage operation.
Energy efficient, low pressure and low-gallonage operation.
360° Full-circle OR arc adjustable from 20° to 340°.
Precision Jet tube (PJ™) minimizes side splash.
Hooded bearing for longer life.
Distance control diffuser pin.
Multi-function, pressure-activated wiper seal.
Inlet filter screen and pressure-activated wiper seal protect internal assembly from debris to ensure positive pop-up and retraction.
Combination 1/2" (15/21) or 3/4" (20/27) bottom inlet.
Heavy-duty, stainless steel retract spring assures positive sprinkler pop-down.
FP trip for full- or part-circle operation.
Side or combination bottom inlet for design flexibility.
Side inlet installation is not recommended in freezing climates.
Serviceable through the top of the case.
Seal-A-Matic (SAM) prevents puddling and erosion caused by low head drainage and saves water.
Optional nonpotable cover.

More Information
Model	2045ASAM
Rotor Series	Maxi-Paw / Mini-Paw
Coverage Radius	22-45 ft
Inlet	1/2 or 3/4 in
Features	Impact Drive, SAM Seal-A-Matic Check Valve, Rain Curtain Nozzles, Low Angle Nozzles
Pop-Up Height	3 in
Dimensions	Overall height: 9 3/10" (23,6 cm) Pop-up height: 3" (7,6 cm) Exposed surface diameter: 5" (12,7 cm)
Specifications	Precipitation Rate: 0.28 to 1.17 inches per hour (7 to 30 mm/h) Radius: 22 to 45 feet (6,7 to 13,7 m) Radius with Radius Reduction Screw: 18 ft (5,4 m) Pressure: 25 to 60 psi (1,7 to 4,1 Bars) Flow: 1.5 to 8.4 GPM (0,34 to 1,91 m3/h; 0,9 to 0,53 l/s) Combination 1/2" (15/21) or 3/4" (20/27) FPT bottom inlet; 1/2" (15/21) FPT side inlet Nozzles: 06-red; 07-black; 08-blue; 10-yellow; 12-beige Low angle (LA) nozzles: 07 LA-black; 10 LA-yellow Nozzle outlet trajectory is 23° for 06, 07, 08, 10, and 12 nozzles LA nozzle outlet trajectory is 11°
Coverage Arc	40° - 360° Reversing Full and Part-Circle
