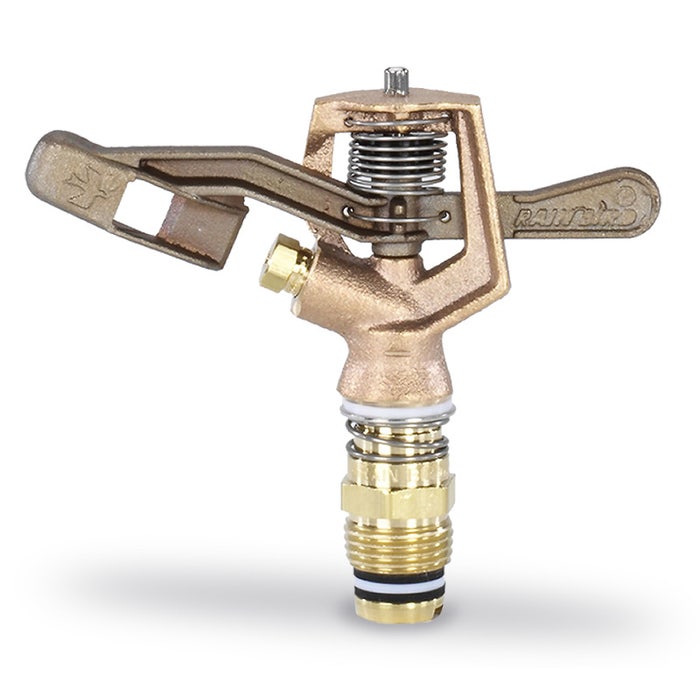

Rain Bird 20JH 1/2 inch inlet full circle brass impact sprinklers-IrriFinder

1/2" male NPT brass inlet
Includes Rain Bird SBN-1 straight bore brass nozzle (1/8")
Durable brass die-cast arm
Stainless steel springs and fulcrum pin
Chemically resistant PTFE washers
Spoon drive arm runs on larger nozzles and higher pressures
Corrosion and grit resistant
Built to last

The Rain Bird 20JH brass impact sprinkler is widely used on all types of solid set systems, on center pivots, and in general field applications because of its construction and reliability. Excellent performance in low to medium application rates.

More Information
Model	20JH
Inlet	1/2 in
Material	Brass
Inlet Size	1/2 in male
Coverage Arc	Full Circle Only
Specifications	Bearing: 1/2" Male NPT, Brass Trajectory Angle: 23 degrees Operating Range: 35-80 psi (2.4-5.5 bar) Flow Rate: 2.0-5.47 GPM (0.45-1.24 m 3 /h) Radius: 35-44ft.(11.59-13.42 m)
