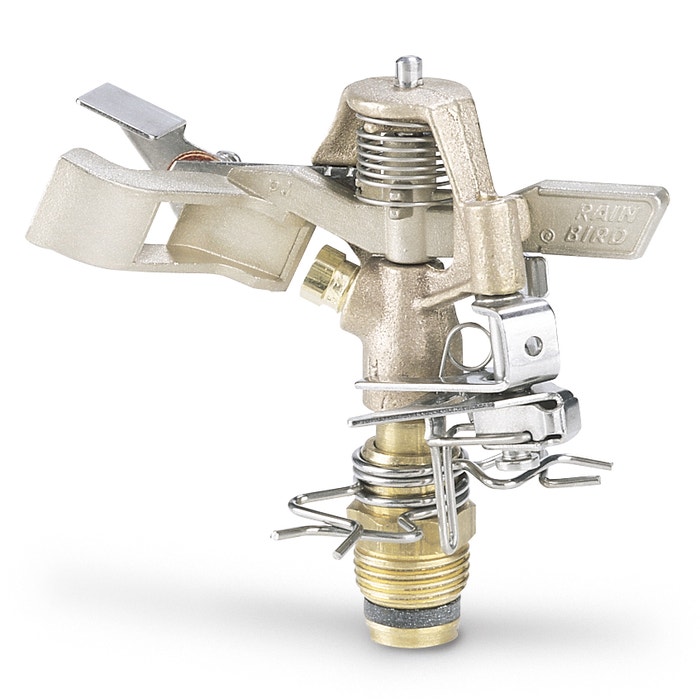

25-BPJ-FPDA-TNT - Brass Impact Sprinkler-IrriFinder

1/2 in. (15/21) riser-mounted brass impact head used for slope or large, non-turf-area applications
Proven impact drive
Straight-through flow for superior performance in dirty water
FP trip allows full- or part-circle operation. Adjustable from 20° to 340°
Die-cast Precision Jet tube (PJ™) minimizes side splash
Stainless steel distance control diffusion pin and DA distance control flaps allows up to 25% radius reduction without changing nozzle
Rugged brass, bronze, and stainless steel construction
Bronze body and arm, stainless steel trip assembly, brass bearing sleeve and nipple
Stainless steel fulcrum pin, arm spring, trip spring and friction collars

N/A

More Information
Model	25-BPJ-FPDA-TNT
Material	Brass
Inlet Size	1/2 in male
Coverage Arc	Full/Part Circle
Features	ADJ Distance Control Diffuser Pin, DA Distance Control Flap, PJ Precision Jet Tube
Specifications	Precipitation Rate: 0.41 to 0.66 inches per hour (10 to 17 mm/h) Radius: 38 to 41 feet (11,6 to 12,5 m) Pressure: 30 to 50 psi (2,1 to 3,5 Bars) Flow: 3.1 to 5.0 GPM (0,70 to 1,14 m3/h; 0,20 to 0,32 l/s) 1/2" (15/21) male threaded inlet Nozzle outlet trajectory: 25° Nozzles: 09, 10
