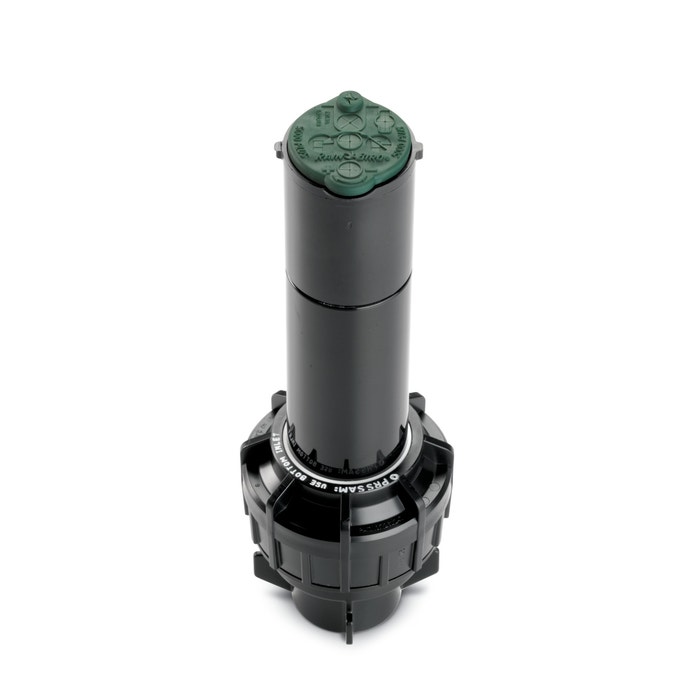

5000S+PCSR - 5000 Series Shrub Rotor with PRS Pressure Regulation and SAM Check Valve-IrriFinder

5000 Series Shrub Rotor with SAM Check Valve, ideal for watering shrubs and hillsides
NOTE: Shrub rotors do not pop up -- mount above ground on a 3/4" fixed threaded riser
Includes locking screw to fasten shrub rotor to the riser and Secure Ribs™ to assist in staking.
Heavy-duty cover assembly for extra durability
Top-adjust arc adjustment requiring only a flat-blade screwdriver
40 - 360° arc rotation and reversing full circle rotation in one
Radius adjustment screw allows up to 25% radius reduction without changing nozzles
Rain Curtain™ Nozzles
Faster maintenance with a new self-cleaning arc adjustment screw
Slip clutch mechanism for quick adjustment on installation
Additional O-rings and seals for extra protection in "gritty" water
Seal-A-Matic (SAM) check valve holds up to 7 feet (2.1m) of elevation change to prevent puddling and erosion caused by low head drainage
Pressure Regulating Stem (PRS) which regulates pressure at the head, assuring optimum performance

Relax with the knowledge your landscape is being watered by reliable 5000 Series Rotors and industry-leading Rain Curtain Nozzle Technology. Rain Bird® 5000 Series Shrub Rotors are ideal for medium to large-size shrub areas and hillsides and evenly distribute water from 25 to 50 feet.

Outstanding Results

Superior Distribution Uniformity. 5000 Series Rotors with Rain Curtain Technology are engineered to deliver a uniform spray pattern, giving you a consistently green lawn throughout.

Superior Wind Resistance

The larger water droplets produced by Rain Curtain technology prevent misting and airborne evaporation so the right amount of water is delivered to the right place, saving you water and money.

Superior Close-in Watering

Gentle close-in watering eliminates dry spots around the rotor, prevents seed washout and allows plants to grow healthy with no matting or bending.

More Information
Model	5000S+PCSR
Rotor Series	5000 / 5000 Plus
Coverage Radius	25-50 ft
Inlet	3/4 in
Features	Gear Drive, PRS Pressure Regulating, SAM Seal-A-Matic Check Valve, Flow Shut-Off, Rain Curtain Nozzles
Pop-Up Height	Shrub (does not pop up)
Operating Range	Precipitation rate: 0.20 to 1.01 inches per hour (5 to 26 mm/h) Radius: 25 to 50 feet (7,6 to 15,2 m) Radius may be reduced up to 25% with radius reduction screw Pressure: 25-65 psi (1,7 to 4,5 bar) Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m)
Specifications	3/4" (20/27) NPT female bottom threaded inlet
Coverage Arc	40° - 360° Reversing Full and Part-Circle
